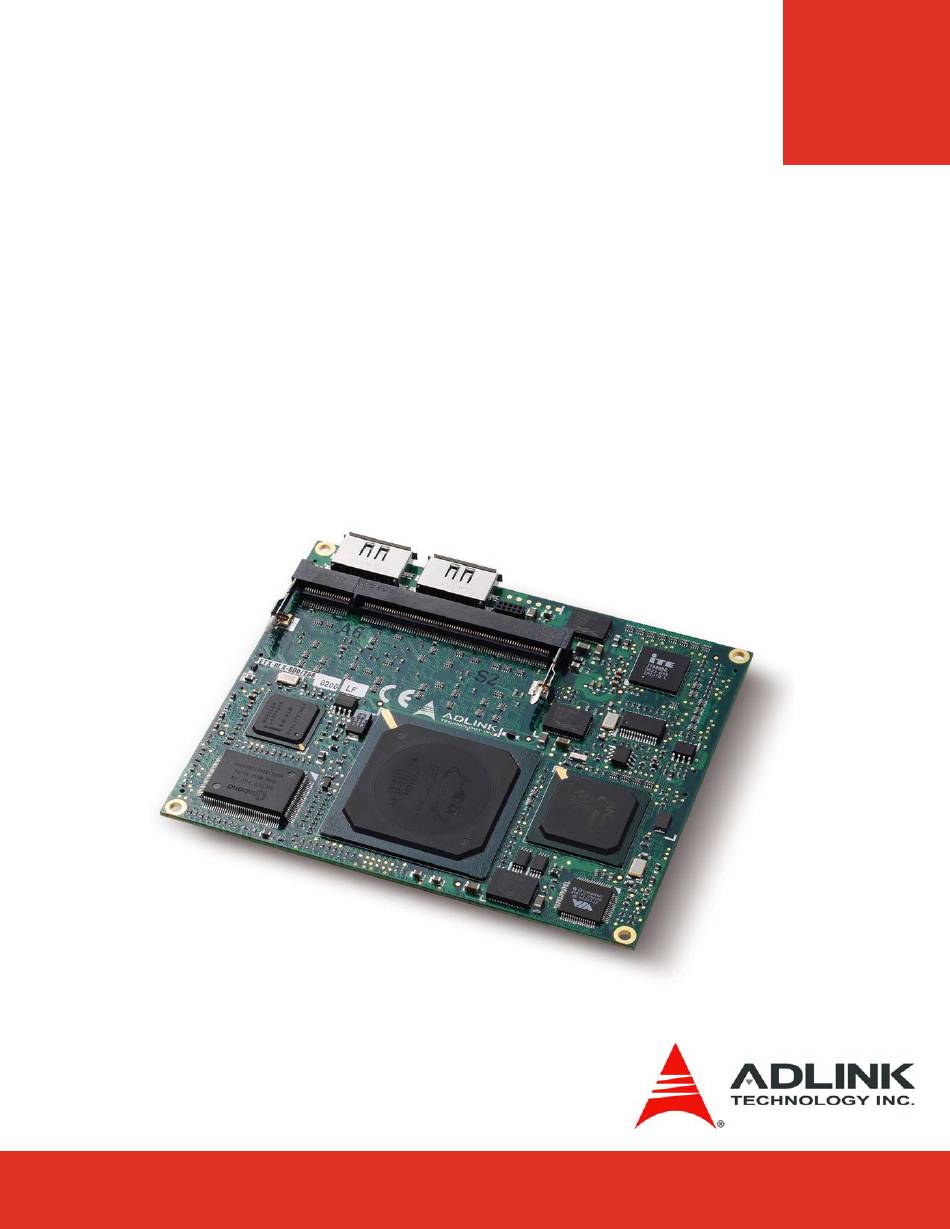

ADLINK Technology ETX-GLX User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ETX
ETX-GLX
User's Manual
Manual Revision: 2.11
Revision Date: March 17, 2009
Part Number: 50-1J008-1020
This datasheet has been downloaded from
http://www.digchip.com
at this
page

Advertisement

loading
Need help?

Need help?

Do you have a question about the ETX-GLX and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology ETX-GLX

Summary of Contents for ADLINK Technology ETX-GLX

  • Page 1 ETX-GLX User’s Manual Manual Revision: 2.11 Revision Date: March 17, 2009 Part Number: 50-1J008-1020 This datasheet has been downloaded from http://www.digchip.com at this page...
  • Page 2 Correct Functional Diagram Correct VGA specification Correct System Resources (I/O Address Map) Correct BIOS chapter (Advanced BIOS Features, Advanced Chipset Features) Correct address, revise layout 2.11 2009/03/17 Add "single channel 18-bit LVDS support by BOM option" Page 2 ETX-GLX User’s Manual...
  • Page 3 Table of Contents ETX-GLX .......................... 1 Preface ..........................5 1 Introduction ....................... 7 2 Specifications ......................8 General ..........................8 Display ..........................8 Multi I/O ..........................9 Audio ............................. 9 LAN ............................9 Power Supply and Environment ..................10 3 Functional Diagram ....................11 4 Mechanical Dimensions ..................
  • Page 4 Carrier Board ETX connecter heights (Hirose FX8/FX8C Receptacles) ......45 Heatspreader Introduction....................46 Mounting procedures ......................47 Standoffs ..........................48 Heatspreader Dimensions for HTS-GLX ................49 Heatspreader Dimensions for HTS-GLX-T ................. 50 Important Safety Instructions ..................52 Getting Service ......................54 Page 4 ETX-GLX User’s Manual...
  • Page 5 Preface Copyright 2009 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 6 Information to prevent minor physical injury, component damage, data loss, and/or program corruption when trying to complete a task. Information to prevent serious physical injury, component damage, data loss, and/or program corruption when trying to complete a specific task. Page 6 ETX-GLX User’s Manual...
  • Page 7 1 Introduction ETX-GLX is a low power ETX® module that complies with the new ETX® revision 3.02 form factor specifications. ETX® revision 3.02 adds two SATA port connectors to the ETX module while maintaining full backward compatibility with the previous ETX® rev 2.x designs. Therefore existing ETX®...
  • Page 8 Expansion: 16-bit ISA and 32-bit PCI 2.2 2.2 Display VGA: (integrated in AMD Geode™LX 800 CPU companion device) - Supports up to 1920x1440x32 bpp resolution at 85 Hz - Supports up to 1600x1200x32 bpp resolution at 100 Hz Page 8 ETX-GLX User’s Manual...
  • Page 9 Keyboard & Mouse: one PS/2 keyboard and one PS/2 mouse 2.4 Audio Chipset: included on CS5536 Audio Codec: AC’97 type Realtek ALC655 2.5 LAN Chipset: Intel 82551QM ® Interface: 10BASE-T/100BASE-TX with TCP/UDP/IP checksum off-loading and PXE boot support ETX-GLX User’s Manual ETX-GLX User’s Manual Page 9 Page 9...
  • Page 10 Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F) Relative Humidity: up to 90% at 55°C ETX Board Dimensions: 95 mm x 114 mm (3.7" x 4.5") Weight: 72 grams without memory onboard, 74 grams with soldered memory Page 10 ETX-GLX User’s Manual...
  • Page 11 SATA CS5536 I/O Companion PCI/ISA ISA bus Bridge EEPROM CMOS Audio IT8888G backup Primary USB 2.0 BIOS IrDA Super I/O Keyboard Winbond header W83627HG Mouse LPT1 / FDD COM1 COM2 ETX-GLX User’s Manual ETX-GLX User’s Manual Page 11 Page 11...
  • Page 12 4 Mechanical Dimensions X1-X4 connectors on bottom side tolerances ± 0.05 mm Other tolerances ± 0.2 mm Page 12 ETX-GLX User’s Manual...
  • Page 13 5 Watchdog Timer ETX-GLX implements a watchdog timer (WDT) embedded in the LPC based Winbond 83627HG Super I/O controller. The Watchdog timer consists of a one-second/minute resolution counter (CRF6 of logical device 8 of 83627HG) and two Watchdog control registers (CRF5 and CRF7 of logical device 8). Once a value is set in the WDT, the timer begins to count down.
  • Page 14 ;device 8 out dx,al mov dx,2Eh mov al,30h out dx,al mov dx,2Fh mov al,01h ;enable device 8 out dx,al mov dx,2Eh mov al,0F7h out dx,al ;device 8, CRF7 mov dx,2Fh mov al,0C0h out dx,al Page 14 ETX-GLX User’s Manual...
  • Page 15 ;device 8, CRF6 out dx,al mov dx,2Fh mov al,0Fh out dx,al ;————————————————————————————————————————————————————— ; Exit extended function mode ;————————————————————————————————————————————————————— mov dx,2Eh mov al,0AAh out dx,al .exit ETX-GLX User’s Manual ETX-GLX User’s Manual Page 15 Page 15...
  • Page 16 - Keyboard 6.2 Pin Compatibility All pins on X1, X2, X3, and X4 of the ETX-GLX comply with pin and signal descriptions used in the ETX® Specification ver. 3.02. This document contains a description of pins, signal descriptions, and mechanical characteristics of the ETX form factor.
  • Page 17 The 3V (3.3 V ±5%) is generated on-board. Pins may be used to power devices on the carrier board up to a maximum load of 500 mA. DO NOT CONNECT THE 3V PIN TO AN EXTERNAL 3.3 V SUPPLY POWER ETX-GLX User’s Manual ETX-GLX User’s Manual Page 17...
  • Page 18 SA14 DACK3# LA18 IRQ14 SA15 IOR# LA19 IRQ15 SA16 IOW# LA20 IRQ12 SA18 SA17 LA21 IRQ11 SA19 SMEMR# LA22 IRQ10 IOCHRDY LA23 IO16# SMEMW# SBHE# M16# NOWS# BALE DREQ2 IRQ9 DACK2# IRQ3 IOCHK# RSTDRV IRQ4 Page 18 ETX-GLX User’s Manual...
  • Page 19 5VCC LCD15* Txout 2+ JILI_SDA LTGO0 LCD16* Txclk - JILI_SCL BLON# LCD17* Txclk + DIGON LCD18* Txout 3- COMP LCD19* Txout 3+ * NC for 18-bit single channel BOM option ETX-GLX User’s Manual ETX-GLX User’s Manual Page 19 Page 19...
  • Page 20 RI2# INDEX# 5VCC 5VCC 5VCC 5VCC RXD1 ACK# RXD1 RTS1# BUSY RTS1# DTR1# DTR1# WDATA# DCD1# SLCT# DCD1# WGATE# DSR1# MSCLK DSR1# MSCLK CTS1# MSDAT CTS1# MSDAT TXD1 KBCLK TXD1 KBCLK RI1# KBDAT RI1# KBDAT Page 20 ETX-GLX User’s Manual...
  • Page 21 May be affected by external circuitry to reset the power management logic of the ETX module. Most designs do not use and pin is not connected. Reserved, do not connect See also: section 7.7 System Management Bus (I2C-compatible) Available, but not supported on the ETX-GLX ETX-GLX User’s Manual ETX-GLX User’s Manual Page 21...
  • Page 22 DMA channels can be free on LPC bus, not ISA bus. Only one of floppy controller and parallel controller can be used due to common hardware interface. ECP mode of parallel port will occupy channel 1 or 3. Page 22 ETX-GLX User’s Manual...
  • Page 23 I/O, or some functions will work failure. Some IO addresses like GPIO control addresses, SMBus control addresses and power management configuration addresses also can’t be used for normal PCI device. It will cause unexpected problem. ETX-GLX User’s Manual ETX-GLX User’s Manual Page 23 Page 23...
  • Page 24 IRQ, PCI or ISA device BIOS setup can reserve IRQ for Legacy IRQ device. It is through PCI-to-ISA bridge via SERIRQ. In ACPI mode, IRQ9 is used for the SCI to issue ACPI event. SCI is System Control Interrupt. Page 24 ETX-GLX User’s Manual...
  • Page 25 INT Line Slot1 Slot2 Slot3 Slot4 INTA INTA INTA INTD INTC INTB INTB INTB INTB INTA INTD INTC INTC INTC INTC INTB INTA INTD INTD INTD INTD INTC INTB INTA ETX-GLX User’s Manual ETX-GLX User’s Manual Page 25 Page 25...
  • Page 26 SMB devices to the SMB pins to ensure compatibility with other modules that might support two internal busses (a separate I2C and SMB bus). Address Function Device Support TV out FS455 48/4Ah Super I/O Read/Write Memory SPD On Board Ram Memory SPD SO-DIMM CMOS backup EEPROM1 CMOS backup EEPROM2 Page 26 ETX-GLX User’s Manual...
  • Page 27 To access the Phoenix AWARD PCI/ISA BIOS Setup program, during initial system power up; Press the <Del> key The Main Menu will be displayed. ETX-GLX User’s Manual ETX-GLX User’s Manual Page 27 Page 27...
  • Page 28 Loads BIOS default values (factory settings) for optimal system performance. Supervisor/User Password Sets User and Supervisor Passwords. Save & Exit Setup Saves CMOS value changes to CMOS and exits setup. Exit Without Saving Abandons all CMOS value changes and exits setup. Page 28 ETX-GLX User’s Manual...
  • Page 29 <PgUp> or <PgDn> keys to increment the setting, or type the desired value directly into the field. IDE Primary Master/Slave Items This selection brings up a configuration menu of the designated Drive. ETX-GLX User’s Manual ETX-GLX User’s Manual Page 29...
  • Page 30 Selects the type of fixed disk. "User Type" will let you select the number of cylinders, heads, etc. PRECOMP=65535 means NONE. Capacity: Auto display disk size Disk drive capacity (approximated). Disk size is usually slightly greater than the size of a formatted disk given by a disk checking program. Page 30 ETX-GLX User’s Manual...
  • Page 31 1.2 MB: 5.25 inch AT-type high-density drive 720 KB: 3.5 inch double-sided drive 1.44 MB: 3.5 inch double-sided drive 2.88 MB: 3.5 inch double-sided drive IDE Primary and Secondary Master/Slave Items ETX-GLX User’s Manual ETX-GLX User’s Manual Page 31 Page 31...
  • Page 32 Base Memory Displays the amount of conventional memory detected during boot up. Extended Memory Displays the amount of extended memory detected during boot up. Total Memory Displays the total memory available on the system. Page 32 ETX-GLX User’s Manual...
  • Page 33 POST (default setting: Enabled). First/Second/Third Boot Device Pressing <Enter> displays the Boot Device Menu. The BIOS will attempt to load the operating system from the selected device (see menu for options). ETX-GLX User’s Manual ETX-GLX User’s Manual Page 33 Page 33...
  • Page 34 Remote Console is a character-based terminal application. It supports either VT100 or ANSI terminals. It does not support graphics or graphical user interfaces. Console Redirection Enables/Disables the remote Console Function: The default value is Enabled. Page 34 ETX-GLX User’s Manual...
  • Page 35 Options: 9600 bps, 19200 bps, 38400 bps, 57600 bps, and 115200 bps The Baud Rate settings between the ETX-GLX and its monitoring computer must be the same. If they are different, an error message, "Award Preboot Agent Installation Failed"...
  • Page 36 Options: None/0 MB, 8 MB, 16 MB, 32 MB, 64 MB, and 128 MB Output Display Selects the output display device. Allows user to configure the type of external display used. Options: TV & CRT, CRT, and Panel & CRT Page 36 ETX-GLX User’s Manual...
  • Page 37 Options: Disabled/Enabled CMOS Backup to EEPROM The ETX-GLX has an onboard EEPROM to provide storage for CMOS backup. If the system is using no CMOS battery and has no permanent 5Vsb, then CMOS settings will be lost after power down. When the CMOS backup feature is enabled, the BIOS copies CMOS settings into EEPROM after saving and exiting from BIOS setup menu.
  • Page 38 Ultra DMA, select Auto to enable BIOS support. IDE DMA Transfer Access Enables/Disables IDE DMA Transfer Access IDE HDD Block Mode Enhances disk performance by allowing multi-sector data transfers and eliminates the interrupt handling time for each sector. Page 38 ETX-GLX User’s Manual...
  • Page 39 Determines which DMA channel the parallel port should use when it is in ECP mode. The ECP mode uses the DMA protocol to achieve data transfer rates of up to 2.5 Mbits/s and provides symmetric bidirectional communications. ETX-GLX User’s Manual ETX-GLX User’s Manual Page 39...
  • Page 40 Suspend Mode (**PM Timers**): Sets the period of time after which the suspend mode activates. Options: 1 sec, 5 sec, 10 sec, 15 sec, 30 sec, 45 sec, 1 min, 5 min, 10 min, 15 min, 30 min, 45 min, 60 min, 90 min, and 120 min Page 40 ETX-GLX User’s Manual...
  • Page 41 Instant-Off: The power button functions as a normal power-on/-off button. Delay 4 Sec: The system is turned off if the power button is pressed for more than four seconds. IRQ Wakeup Events: IRQ1-15: Enables or disables IRQ Wakeup Events. ETX-GLX User’s Manual ETX-GLX User’s Manual Page 41 Page 41...
  • Page 42 (IRQ) and DMA assignment fields are cleared, as the BIOS automatically assigns them. IRQ Resources: When controlling resources manually, assign each system interrupt specifically, depending on the type of device (PCI or ISA) using the interrupt. Options: (IRQ´s) PCI device, Reserved (for ISA- Devices). Page 42 ETX-GLX User’s Manual...
  • Page 43 Current CPU Temp. Displays the current CPU temperature. Current System Temp. Displays the current system temperature. CPU VCORE, +3.3 V, +5 V Displays the actual voltage levels on the board ETX-GLX User’s Manual ETX-GLX User’s Manual Page 43 Page 43...
  • Page 44 AT/ATX mode for the power supply. A.2 AT/ATX Mode Settings AT mode or ATX mode can be selected as below. The default setting is ATX mode. SWITCH AT Power Mode ATX Power Mode (default) Not Used Not Used Page 44 ETX-GLX User’s Manual...
  • Page 45 Withstand voltage 300 V AC r.m.s. Contact resistance 45 m or less at 100 mA DC Insulation PPS resin (light brown, UL94V-0) Contacts phosphor bronze (gold plated contacts and leads) ETX-GLX User’s Manual ETX-GLX User’s Manual Page 45 Page 45...
  • Page 46 Therefore, the heat solution, that is built on top of the heatspreader, is compatible with any ETX module. Remove the protective layer from CPU and Heatspreader placed on ETX-GLX. companion device pads before placing the heatspreader on the module. From top to bottom: Heatpads for CPU’s and companion device.
  • Page 47 / washer Heatspreader 9.5 mm through-hole 6 mm through-hole standoff (SMT) standoffs Carrier ETX Module M2.5 : 16 mm Carrier with spring / washer 9.5 mm threaded standoff (DIP) ETX-GLX User’s Manual ETX-GLX User’s Manual Page 47 Page 47...
  • Page 48 9.5 mm through-hole standoff (SMT type) for C0.2 HTS-GLX with 9 mm Hirose carrier board connectors 33- 72011-9P50 9.5 mm threaded standoff C0.5 (DIP type) for HTS-GLX-T with 9 mm Hirose carrier board connectors C0.3 Page 48 ETX-GLX User’s Manual...
  • Page 49 B.5 Heatspreader Dimensions for HTS-GLX ETX-GLX User’s Manual ETX-GLX User’s Manual Page 49 Page 49...
  • Page 50 B.6 Heatspreader Dimensions for HTS-GLX-T Page 50 ETX-GLX User’s Manual...
  • Page 51 This page intentionally left blank. ETX-GLX User’s Manual ETX-GLX User’s Manual Page 51 Page 51...
  • Page 52 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Page 52 ETX-GLX User’s Manual...
  • Page 53 - It is not functioning or does not function according to the user’s manual; - It has been dropped and/or damaged; and/or, - It has an obvious sign of breakage. ETX-GLX User’s Manual ETX-GLX User’s Manual Page 53 Page 53...
  • Page 54 Address: 9F, No.166 Jian Yi Road, Chungho City, Taipei County 235, Taiwan Tel: +886-2-8226-5877 Fax: +886-2-8226-5717 Email: service@adlinktech.com Ampro ADLINK Technology Inc. Address: 5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com...
  • Page 55 Address: 84 Genting Lane #07-02A, Cityneon Design Centre, Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte Ltd. (Indian Liaison Office) Address: No. 1357, "Anupama", Sri Aurobindo Marg, 9th Cross, JP Nagar Phase I, Bangalore - 560078, India Tel: +91-80-65605817 Fax: +91-80-22443548 Email: india@adlinktech.com...
