8.6.

AT Power Mode

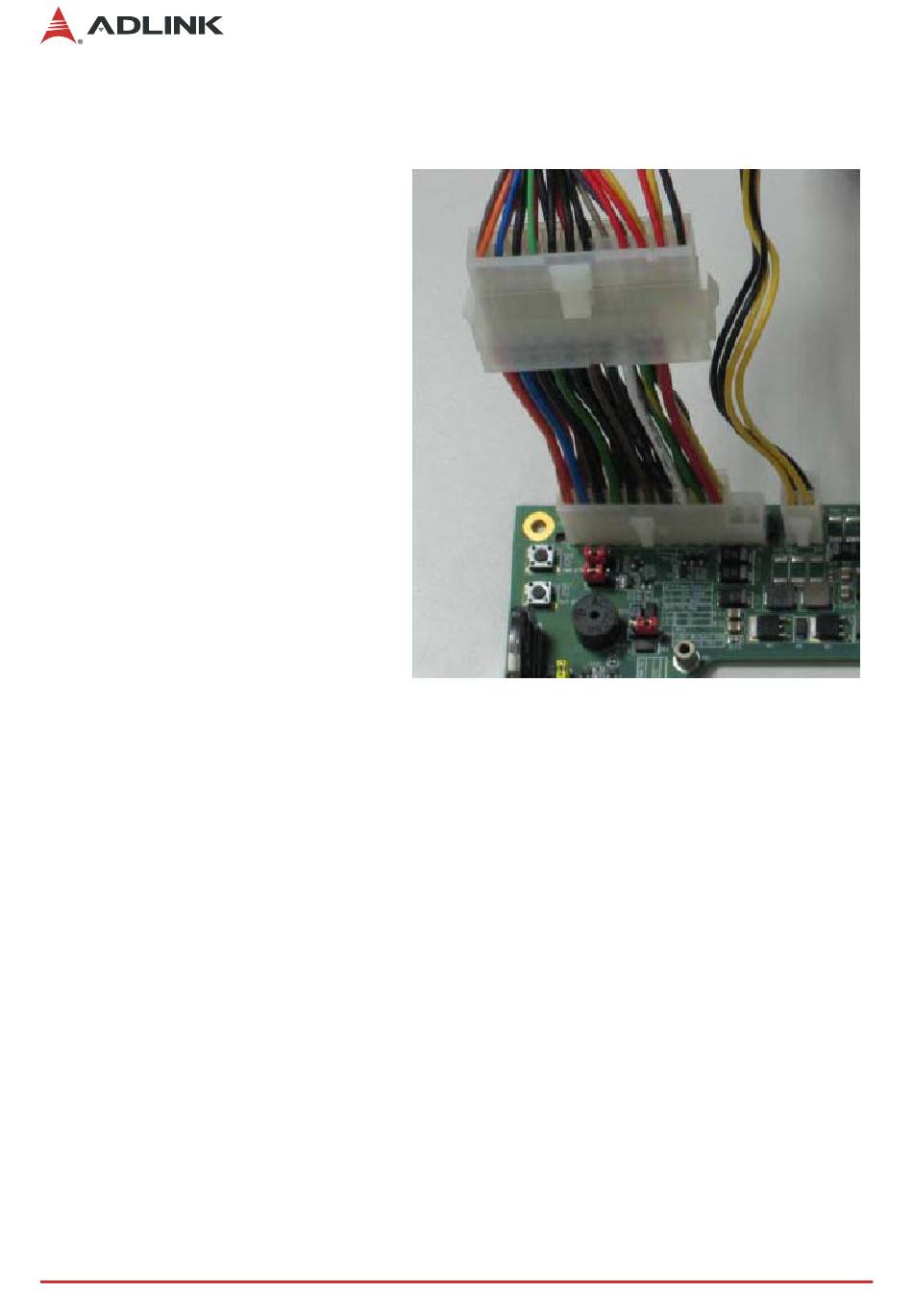

To operate the system in AT Mode with an ATX

power supply, use the AT mode PSU converter

cable (no 5VSB) to connect the ATX 20/24-pin

power connector to the carrier board as shown.

Set the ATX/AT Mode jumper JP1 to AT Mode

as described in 6.17 Power Jumper Settings.
