6.7.

MiniBMC

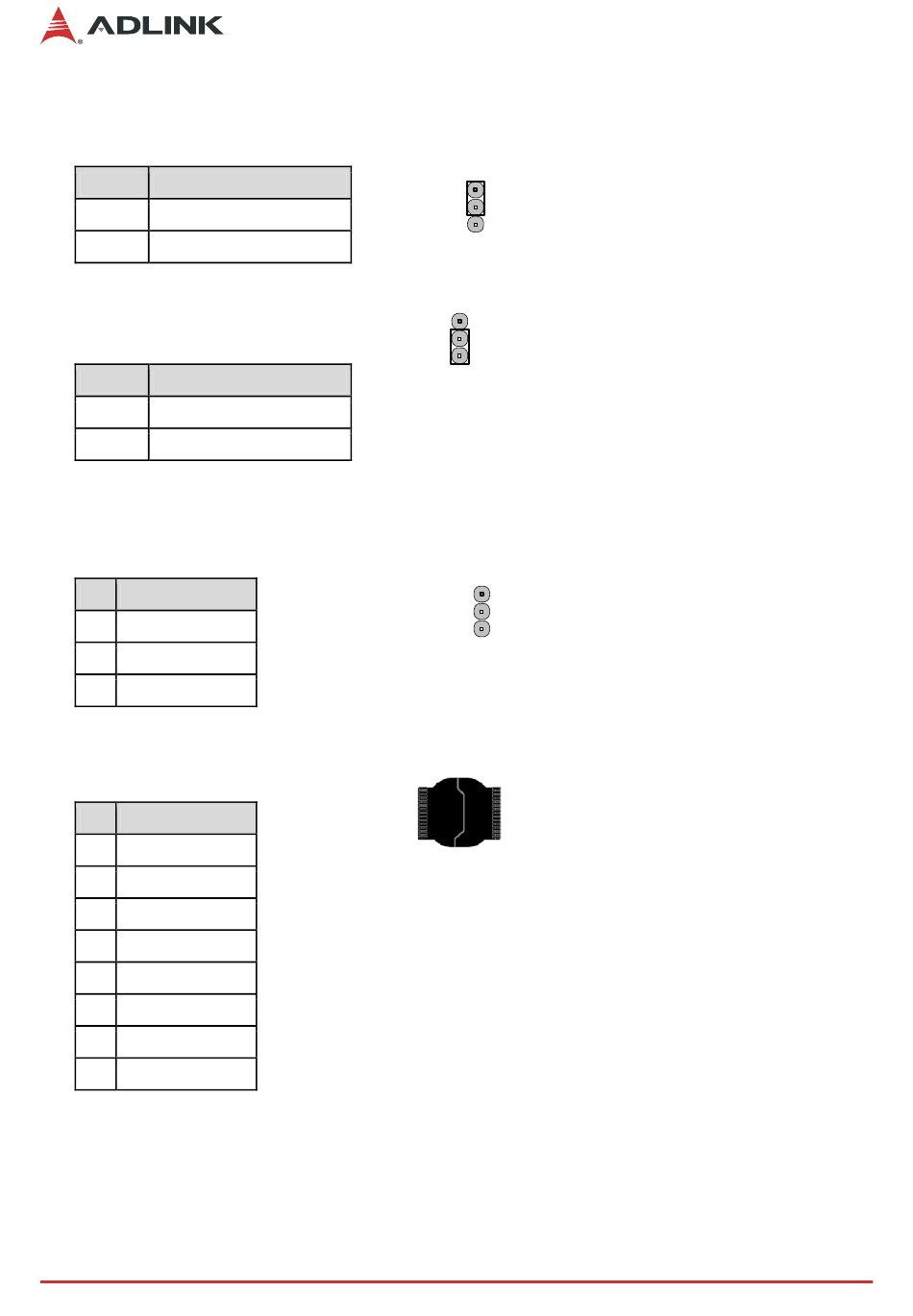

CN46/47/48: MiniBMC Mode Selection
Jumper Status
1-2 Normal Mode
2-3 Debug Mode
CN49: MiniBMC Mode Selection
Enable Debug Mode of MiniBMC for FW
Development through CN46/47/48/49 selection
Jumper Status
1-2 Debug Mode
2-3 Normal Mode
Note: <<<< indicates default setting
CN1001: Communication Port
Send out debug message for FW development
Pin Signal
1 UART0_RXD
2 UART0_TXD
3 GND
U502: MiniBMC SPI Socket
EEPROM dedicated for storing MiniBMC FW
Pin Signal
1 IPMC_SPICS0
2 IPMC_SPIMISO
3 IPMC_WP-L
4 GND
5 IPMC_SPIMOSI
6 IPMC_SPICK
7 IPMC_HOLD-L
8 + 3.3V
Note: MiniBMC feature supported by project basis.
18
1
2
<<<<
3
1
2
3
<<<<
1
2
3
Connectors, Pinouts and Jumpers
