Express-BASE7
8.5.
ATX Power Connectors
The Express-BASE7 has one ATX 24-pin connector
to supply power to the carrier board and one ATX 12V
4-pin connector to supply power to the COM Express
module.
The system will not power on unless an ATX 12V 4-pin
connector is connected.

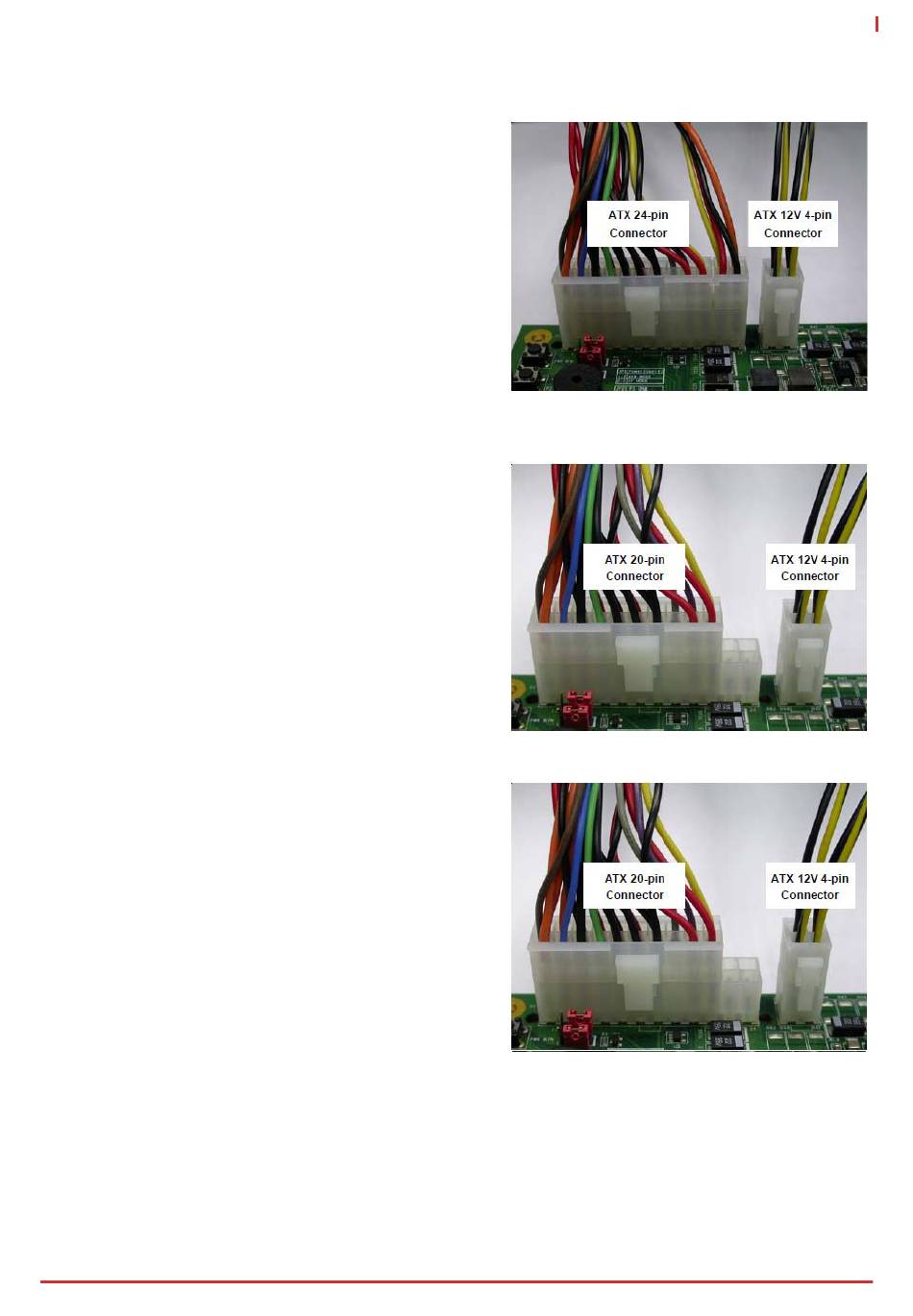

If your power supply has a 24-pin ATX connector, then
attach the connectors as shown.
If your power supply has a 20-pin ATX connector, then
attaché the connectors as shown.
DO NOT plug the ATX 12V 4-pin connector into the ATX 24-
pin power
connector.
Switches, POST and LEDs
41
