8. Switches, POST and LEDs

8.1.

Switches (S1-S5)

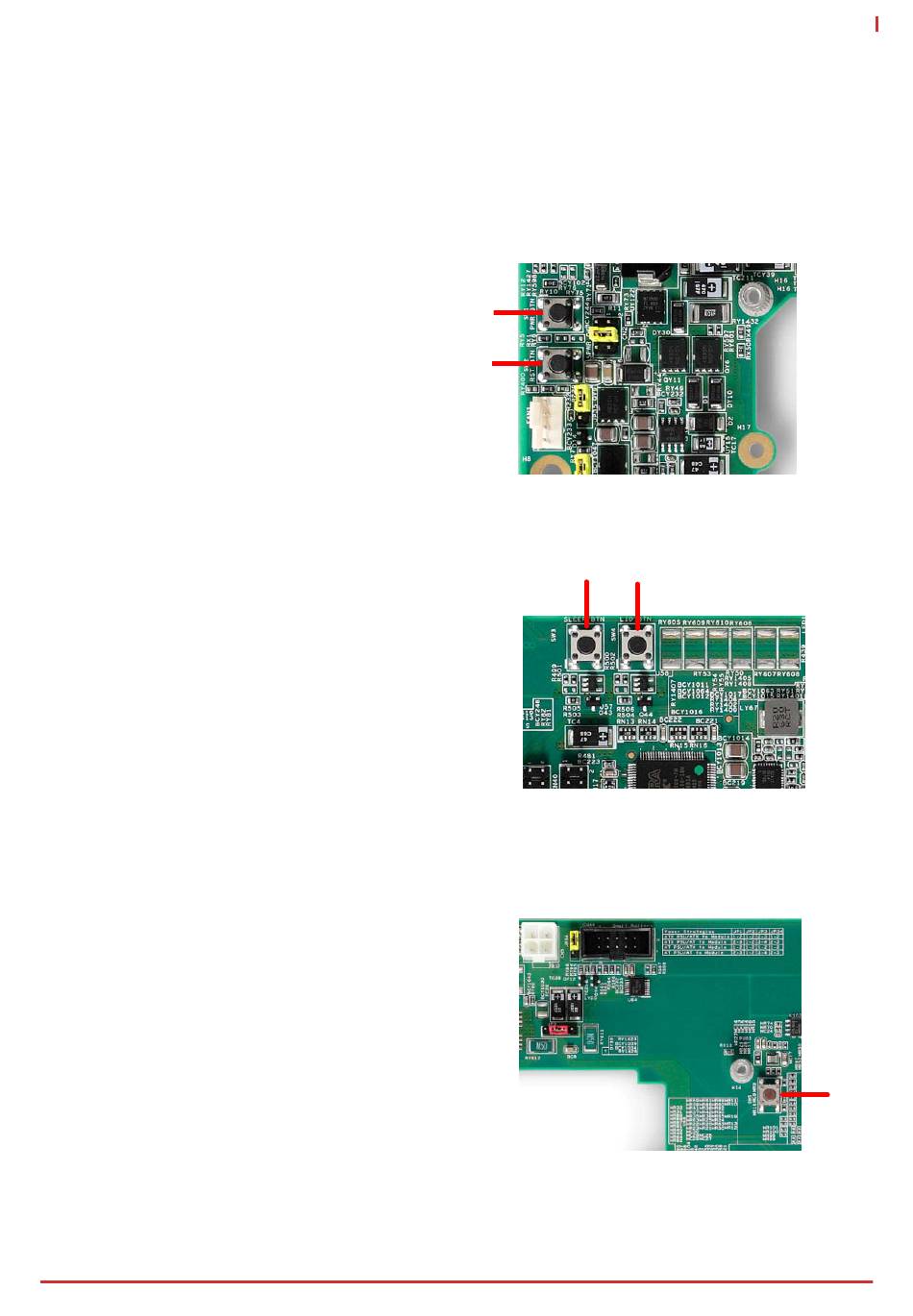

There are two mini switches at the top left corner of the carrier.
The S1 switch is the ATX Power Button.
The S2 switch is the Reset Button.
At the top edge of the carrier are two more switches.
The S3 switch is the Sleep Button.
The S4 switch is the Lid Button.
Both buttons support Type 7 modules for ACPI power
management behavior settings in an OS environment.
Nearby the top there is one more switch.
The S5 switch is the Reset Button for MiniBMC.
This switch is used for MiniBMC FW development only.
