6.19.

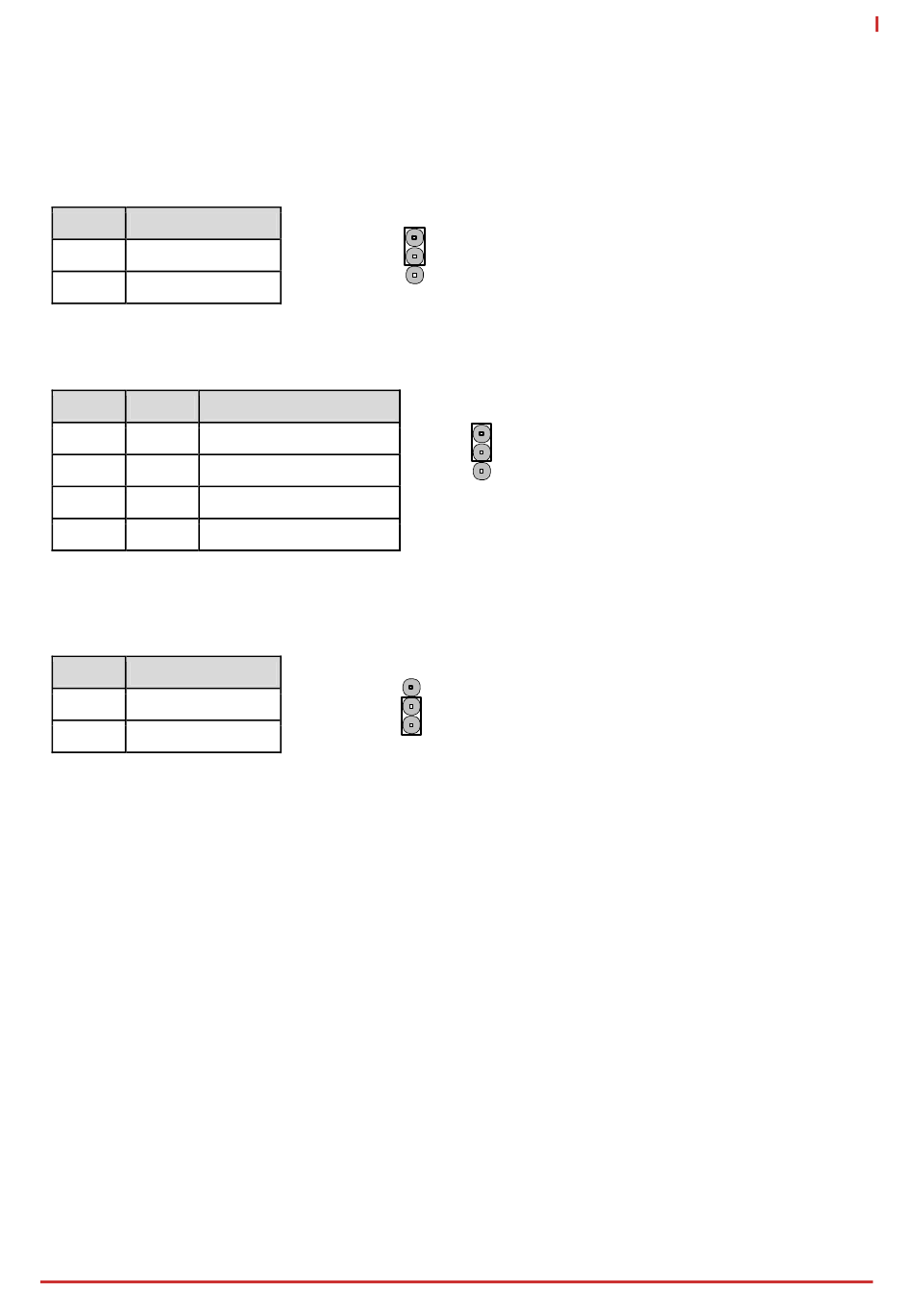

Other Jumper Settings

JP4: Clear CMOS
To clear CMOS, shut down the power and short pins 2 and 3 (short VBAT to ground)
Jumper Status
1-2 Normal
2-3 Clear CMOS
JP23/24: BIOS Selection
See 7.1 SPI Secondary BIOS for a detailed description.
JP23 JP24 Status
1-2 1-2 Module BIOS
2-3 1-2 Reserved
1-2 2-3 Carrier SPI BIOS
2-3 2-3 Reserved
JP32: TPM Signal Jumper
Configuring the jumper to "ON" pulls the TPM signal high and "OFF" does nothing to the TPM signal. Dependent
upon COM Express modules's design for the TPM signal.
Jumper Status
1-2 ON
2-3 OFF
Note: <<<< indicates default setting
Connectors, Pinouts and Jumpers
1
2
<<<<
3
<<<<
1
2
3
<<<<
1
2
3
Express-BASE7
