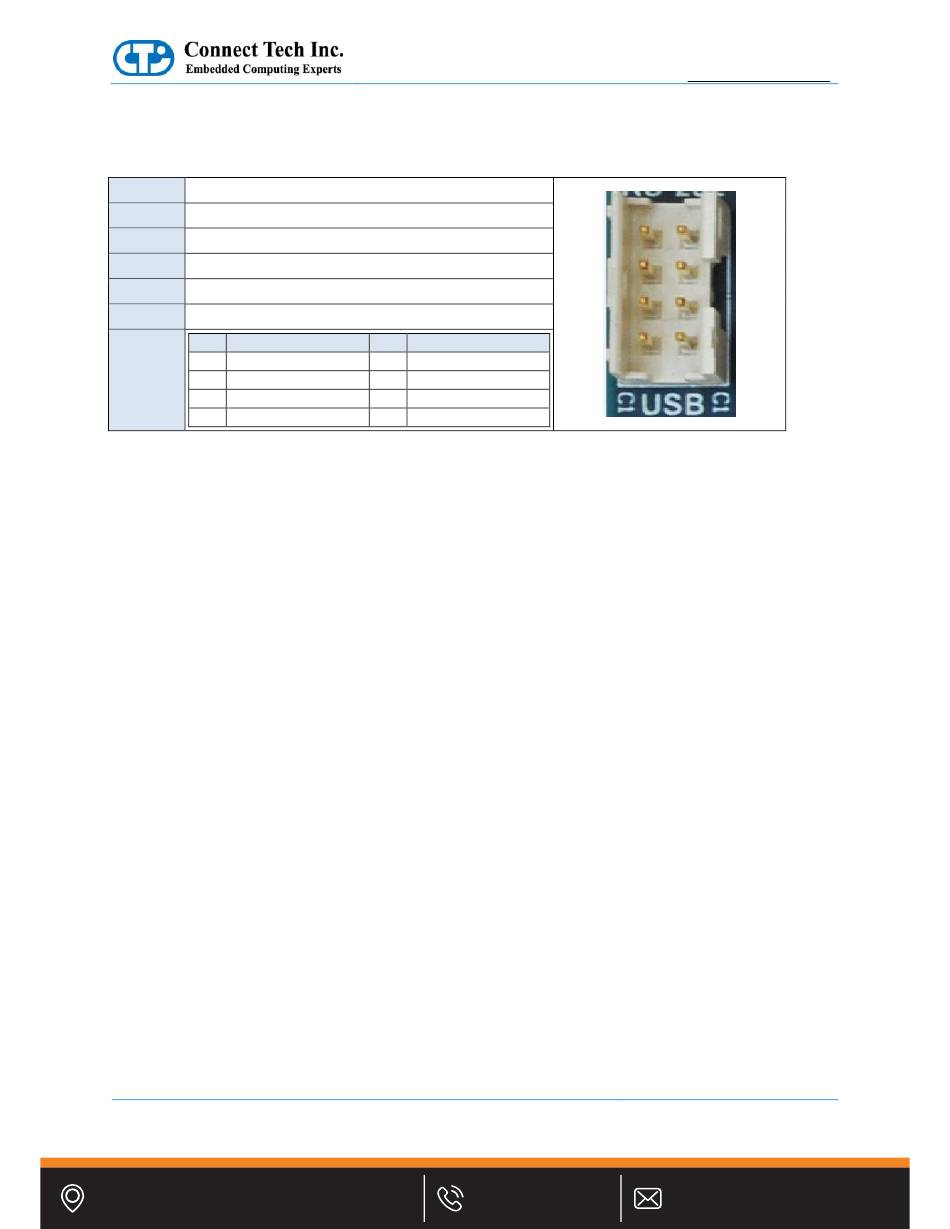

USB 2.0

Over current protection, power supply filtering and ESD protection is provided.
Function USB 2.0
Location P12
Type FCI MiniTek Double Row 4 x 2
P/N 98414-G06-08LF
10073599-008LF
Mating
Cable CBG104
Pinout
Pin Description
1 Port A - VBUS
3 Port A - D–
5 Port A - D+
7 Port A - GND
Document: CTIM-00439
Revision: 0.00
ES France - Mobilité & Systèmes Embarqués
127 rue de Buzenval BP 26 - 92380 Garches
Pin Description
2 Port B - VBUS
4 Port B - D–
6 Port B - D+
8 Port B - GND
