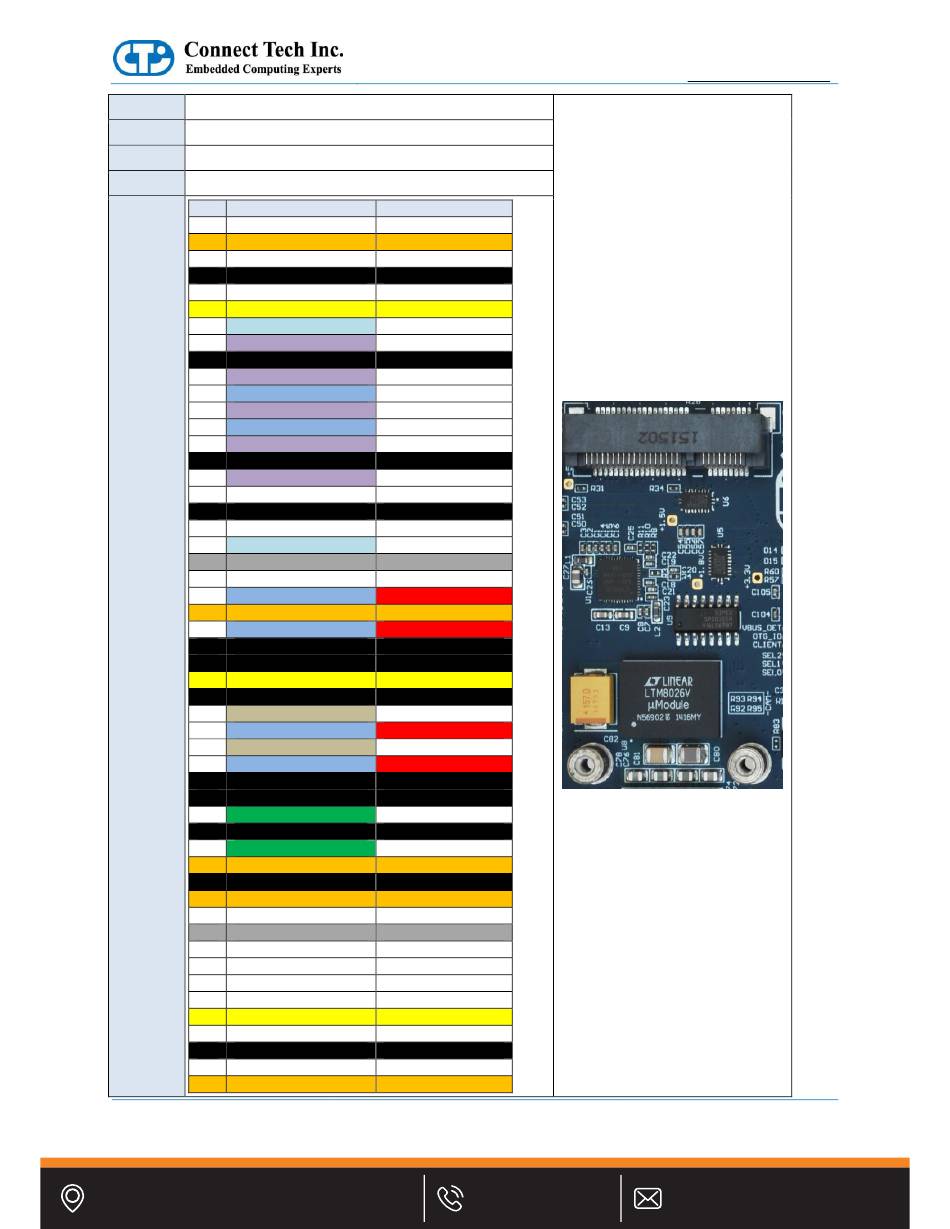

Connect Tech SMARC/SL User Manual page 16

Function Mini-PCIe/mSATA Slot
P7
Location
Type Molex Card Edge Connector
P/N 48338-0065
Pinout Pin Mini-PCIe Description
1 -
2 +3.3V
3 -
4 GND
5 -
6 +1.5V
7 CLKREQ#
8 UIM_PWR
9 GND
10 UIM_DATA
11 PCIe CLK+
12 UIM_CLK
13 PCIe CLK-
14 UIM_RESET
15 GND
16 UIM_VPP
17 -
18 GND
19 -
20 W_DISABLE#
21 RESV
22 -
23 PCIe RX+
24 +3.3V
25 PCIe RX-
26 GND
27 GND
28 +1.5V
29 GND
30 SMB_CLK
31 PCIe TX-
32 SMB_DATA
33 PCIe TX+
34 GND
35 GND
36 USB D-
37 GND
38 USB D+
39 +3.3V
40 GND
41 +3.3V
42 -
43 RESV
44 -
45 -
46 -
47 -
48 +1.5V
49 -
50 GND
51 -
52 +3.3V
Document: CTIM-00439
Revision: 0.00
ES France - Mobilité & Systèmes Embarqués
127 rue de Buzenval BP 26 - 92380 Garches
mSATA Description
-
+3.3V
-
GND
-
+1.5V
-
-
GND
-
-
-
-
-
GND
-
-
GND
-
-
RESV
-
SATA TX+
+3.3V
SATA TX-
GND
GND
+1.5V
GND
-
SATA RX-
-
SATA RX+
GND
GND
-
GND
-
+3.3V
GND
+3.3V
-
RESV
-
-
-
-
+1.5V
-
GND
-
+3.3V
