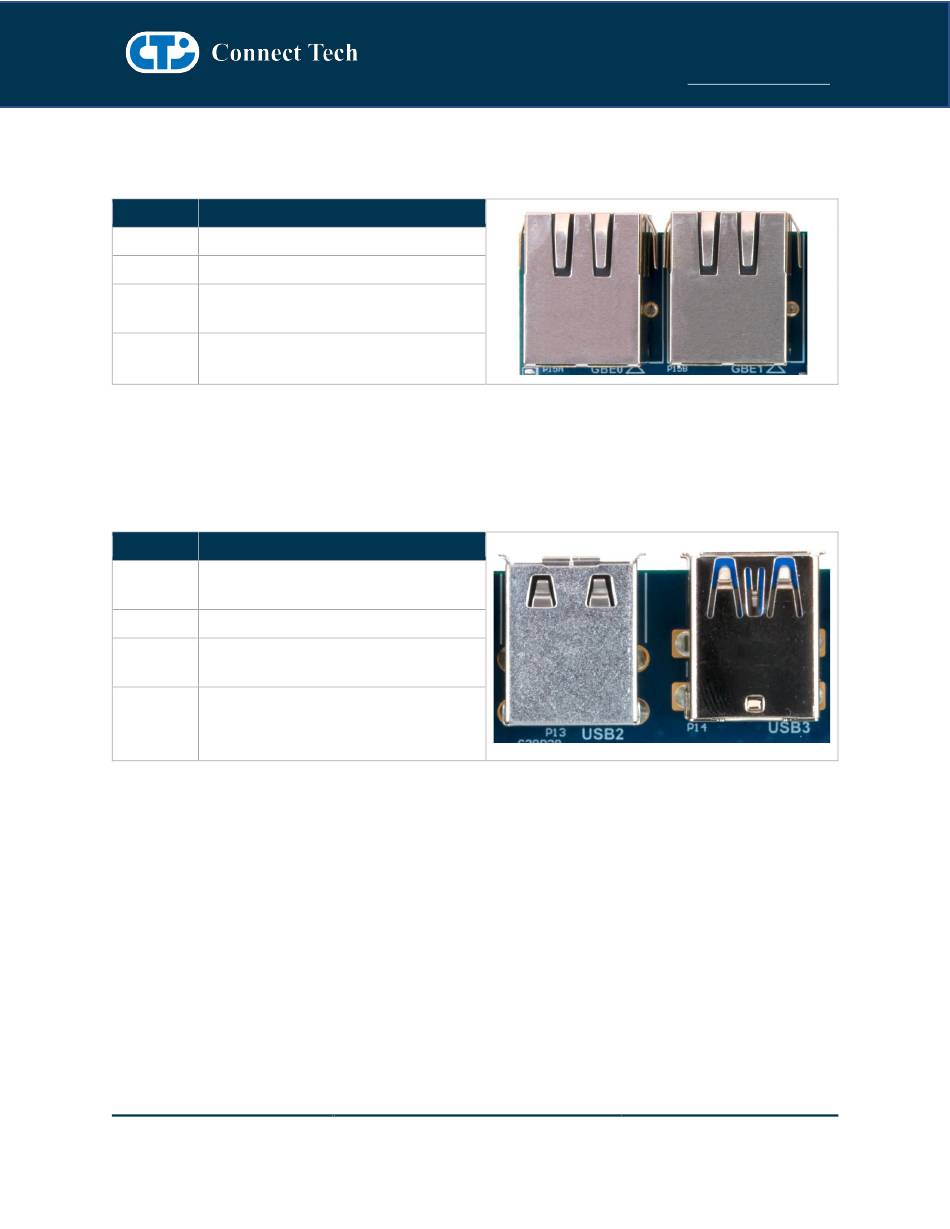

Network

The SMARC 2.0 Carrier implements two 10/100/1000 Ethernet interfaces.
Function
Location P15A, P15B
Type RJ45 1000BASE-T Ethernet Connector
Part Pulse JXD0-0001NL
Number
Pinout Refer to IEEE 802.3

USB

The SMARC 2.0 Carrier implements a Dual USB3.0 connector and a Dual USB2.0 connector. All ports are
direct from the SMARC 2.0 module. All connectors are industry standard USB3.0/USB2.0 Type A right
angle.
Function
Location P13 (USB2.0)
P14 (USB3.0)
Type USB 2.0/USB3.0 Type A
Part USB2.0 = Molex 067298-3081
Number USB3.0 = TE 1932355-4
Pinout Refer to Universal Serial Bus 2.0 and 3.0
Specification
