- Page 1 COM Express Type 6 PMC/XMC Carrier Users Guide Connect Tech Inc. 42 Arrow Road Guelph, Ontario N1K 1S6 Tel: 519-836-1291 Toll: 800-426-8979 (North America only) Fax: 519-836-4878 Email: sales@connecttech.com support@connecttech.com Web: www.connecttech.com CTIM-00115 Revision: 0.03, July 12, 2017...
-
Page 2: Table Of Contents
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Table of Contents Customer Support Overview .......................... 4 Contact Information............................4 Limited Product Warranty ..........................5 Copyright Notice ............................5 Trademark Acknowledgment ......................... 5 Revision History ............................. 5 Introduction .............................. - Page 3 Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual miniPCIe & mSATA Slots ............................25 Dual Function miniPCIe mSATA Slots ......................25 Half and Full Length mini PCIe / mSATA module Installation ...............26 miniPCIe / mSata Connector Pinout ........................27 8 x Asynchronous Serial Ports ..........................
-
Page 4: Customer Support Overview
Customer Support Overview If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech reseller from which you purchased the product. In most cases the reseller can help you with product installation and difficulties. In the event that the reseller is unable to resolve your problem, our highly qualified support staff can assist you. -
Page 5: Limited Product Warranty
Board. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 6: Introduction
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Introduction Connect Tech’s COM Express Carrier Boards are small feature rich, super flexible carrier boards that integrate with any industry standard Type 6 COM Express module. These bus-independent carrier boards offer easy connection to SATA HDD, USB 2 and USB 3, Audio, Dual Ethernet, HDMI , Display Port Video, LVDS Video, VGA video, RS232 and RS485 serial. -
Page 7: Product Features And Specifications
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Product Features and Specifications Feature Part Number: CCG007 15.000” x 7.500” PCB Size / Overall Size Maximum Top Side Component Height: 1.259” 3D STEP Model: download here Gigabit Ethernet LVDS Video &... -
Page 8: Block Diagram
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Block Diagram On-Board +9V to +36V Input ATX Compliant PSU Audio HD Audio Codec PCIe x1 Cirrus Logic CS4207 Input / Output DDI-1 HDMI DDI-2 DDI-3 DisplayPort LVDS... -
Page 9: Connector Locations
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Connector Locations Top View Front View Revision 0.03... -
Page 10: Connector Summary
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Connector Summary Designator Connector Description J11A, J12A PMC Slot-0 Connector J11B, J12B PMC Slot-1 Connector J15A XMC Slot-0 Connector J15B XMC Slot-1 Connector 440-pin Board Stacking Connector COM Express Type-6 Connector... -
Page 11: Jumper Summary
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Jumper Summary Designator Jumper Description 7-position 2mm Jumper Block RS-232/RS-485 Port 1 Settings 7-position 2mm Jumper Block RS-232/RS-485 Port 2 Settings 7-position 2mm Jumper Block RS-232/RS-485 Port 3 Settings... -
Page 12: Detailed Feature Pinouts And Functional Descriptions
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Detailed Feature Pinouts and Functional Descriptions COM Express Module Connector The processor and chipset are implemented on the COM Express Type 6 CPU module, which connects to the COM Express carrier via a Tyco fine pitch stacking connector. -
Page 13: Input Power
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Input Power The COM Express Type-6 PMC/XMC Carrier is designed to be powered from any DC input power source in the rage of +6V to +36V DC, which is ideal for many vehicle or rugged applications, but also many industrial power solutions as well. -
Page 14: Active Input Power Protection Details
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Active Input Power Protection Details A benefit to using the COM Express Type-6 PMC/XMC Carrier is that it protects loads from high voltage input transients. It regulates the output during an overvoltage event, such as load dump in vehicles, by controlling the gate of an external N-channel MOSFET. -
Page 15: Video Outputs
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Video Outputs The COM Express Type-6 PMC/XMC Carrier features up to 5 video outputs, VGA, HDMI, DisplayPort, DVI and LVDS. The availability of the graphics interfaces depends on your Type 6 COM Express module. -
Page 16: Dvi
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual The DVI output on the carrier provides a Single-Link DVI connection. Where four pairs are connected back to the host COM Express module, Three of the pairs correspond to the RGB components of the video signal: red, green, blue (for a total of 24 bits per pixel.) The fourth link carries the pixel clock. -
Page 17: Lvds Video
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual LVDS Video Description COM Express carrier provides dual 18 or 24 bit LVDS display channels via P4, which are connected directly from the COM Express module. LVDS panel supply power is selected with jumper J1 and backlight power is selected with jumper J2. -
Page 18: Lvds Backlight Power Connector
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual LVDS Backlight Power Connector Function LVDS backlight Inverter power Location JST SM02B-BHSS-1-TB(LF)(SN) connector Type Pinout Signal VA LED VK LED Designed to power HDA700LPT-GHL (or similar screen type) which has 13 parallel strings of 3 series white LEDS. -
Page 19: Lvds Panel Ledadj Selection Jumper
Off or position A The carrier boards brings the VGA video output to a 2x5 2mm header. This header can be mated to Connect Tech’s CBG070 cable which then terminates to a standard DB-15 VGA connector which is panel mountable. -
Page 20: Usb 3.0
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual USB 3.0 The COM Express carrier implements four USB 3.0 connections via two USB connectors. Over current protection, power supply filtering and ESD protection is provided. Each USB 3.0 port is capable of bitrates of up to 5Gbps, as well as accepting USB2.0 and below connections. -
Page 21: 10/100/1000 Ethernet
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual 10/100/1000 Ethernet The COM Express carrier features dual 10/100/1000 Ethernet Ports. GBE Port 0 is coming from an Intel 82574 PCIe PHY Controller located on the carrier. GBE Port 1 is coming directly from the the COM Express module. -
Page 22: Usb 2.0
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual USB 2.0 The COM Express Type-6 PMC/XMC Carrier provides 4 x USB 2.0 external ports via standard PC type-A USB connectors. As well the carrier provides 2 x USB 2.0 “internal” connections via a standardized 2x5 0.1”... -
Page 23: Audio Interface
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Audio Interface The COM Express Carrier features two 3.5mm stereo audio jacks, one input and one output. The audio codec used on the carrier board is the CS4207 from Cirrus Logic. -
Page 24: External Sata Ports
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual External SATA Ports The COM Express carrier provides two SATA HDD connections as well as external power connectors for each drive. SATA HDD Connectors Function SATA host Locations P2A – SATA - 2 P2B –... -
Page 25: Minipcie & Msata Slots
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual miniPCIe & mSATA Slots Dual Function miniPCIe mSATA Slots The COM Express Type-6 PMC/XMC Carrier has two standard miniPCIe slots and two special dual purpose functionality mini PCIe / mSATA slots. Each of the special dual purpose slots can accept either a mini PCIe module or a mSATA SSD module. -
Page 26: Half And Full Length Mini Pcie / Msata Module Installation
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Selection between mSATA and miniPCIe is done on the jumper block (J6) Position Jumper ON Jumper OFF Slot-0 miniPCIe selected Slot-0 mSATA selected Slot-1 miniPCIe selected Slot-1 mSATA selected ** Note: This is opposite to the logic labeled on the PCB silk screen of REV A PCB’s **... -
Page 27: Minipcie / Msata Connector Pinout
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual miniPCIe / mSata Connector Pinout Function mini PCIe / mSATA Slots Locations U11A, U11B, U13A, U13B Type Standard 52-pin 0.8mm pitch PCI Express mini Card connector. Pinout mSATA Pinout... -
Page 28: 8 X Asynchronous Serial Ports
PCIe 8-port UART the Exar 17V358 (Connect Tech’s BlueStorm/Express Circuitry). Software Support for the Exar 17V358 Additional drivers will be needed to properly operate the 4 additional serial ports on the COM Express carrier. Drivers for this functionality can be found on Connect Tech’s download zone here: http://www.connecttech.com/asp/Support/DownloadZone_results.asp?Product=3&OperatingSystem=IS+N OT+NULL&x=16&y=13 Serial Connectors RS-232/RS-485 Pinout Port No. -
Page 29: Pinout Mapping On Pcb 0.1" Headers
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Pinout Mapping on PCB 0.1” Headers 8 x Serial Port Jumper Configuration The COM Express Type-6 PMC/XMC Carrier allows for each of its 8 external serial ports interface to be hardware configurable. -
Page 30: 8 X Serial Port Cabling Details
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual 8 x Serial Port Cabling Details The COM Express Type-6 PMC/XMC Carrier cable kit (CKG011) provides two 40-pin to 8 x DB-9 ribbon cables (CAG8104) that are panel mountable. The cable is shown below as well as details on the pinouts of the DB-9 end connectors. -
Page 31: Pmc / Xmc Expansion Slots
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual PMC / XMC Expansion Slots The COM Express Type-6 PMC/XMC Carrier provides two VITA 42 PMC/XMC expansion slots. Each of these slots are provided with a 32-Bit PCI connection and a x8 PCI Express connection. The PMC (PCI) connection is sourced through a PCIe to PCI bridge through the PCIe x1 –... -
Page 32: Gpio And Console Serial Port
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual GPIO and Console Serial Port The COM Express Type-6 PMC/XMC Carrier provides additional functionality of COM Express Type-6 specification. Connector Function Console RS-232 / GPIO Locations P9 Type... -
Page 33: Sd Card
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual SD Card The COM Express Type-6 PMC/XMC Carrier provides a Micro SD Card Slot at P4. This Micro SD Card slot sources the SDIO interface from the COM Express modules GPIO pins. -
Page 34: System Control Header
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual System Control Header This system control header can be used to connect power button, reset button, PC speaker, I2C device and monitor other power rails. Function Miscellaneous Control Header Location 2x10 0.1”... -
Page 35: Typical Hardware Installation Procedure
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Typical Hardware Installation Procedure Ensure all external system power supplies are off. Install the COM Express module. Be sure to follow the manufacturer’s direction for proper heatsink/heatspreader installation and any other cooling instructions from the manufacturer. -
Page 36: On-Board "Atx" Power Supply
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual On-Board “ATX” Power Supply The COM Express Type-6 PMC/XMC Carrier provides takes the +6V to +36V input and generates all of the on-board voltages rails needed for the COM Express modules and peripherals. This on-board power supply is also has “ATX”... -
Page 37: Current Consumption Details
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Current Consumption Details Below are the maximum ratings of the carrier. Maximums Amps Watts Theoretical absolute maximum total draw of all functionality on the carrier board (this value excludes current draw from module) -
Page 38: Pci Express Allocation Details
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual PCI Express Allocation Details Below is a listing of how the PCI Express Links are allocated on the carrier board. COM Express PCI Express Link Peripheral Connection PCIe x1 - 0... -
Page 39: Mechanical Details
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Mechanical Details A complete 3D STEP Model file of carrier board can be downloaded here: http://www.connecttech.com/ftp/3d_models/CCG007_3D_MODEL.zip 2D Mechanical Dimensioned Drawing - All dimensions are in (mm) Mounting Holes Details - All dimensions are in (mm) -
Page 40: Enclosure Details

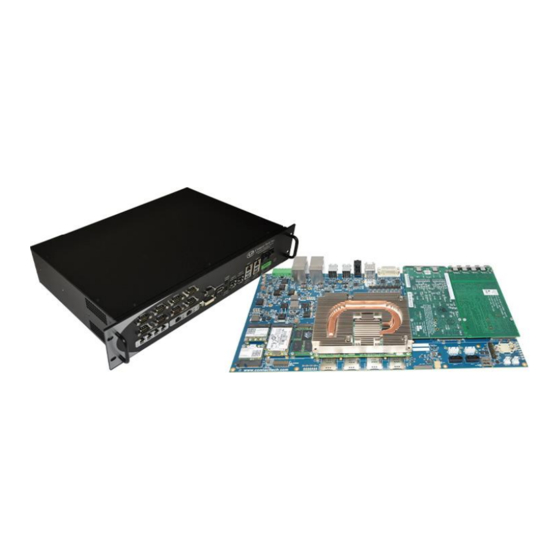

The COM Express Type-6 PMC/XMC Carrier has been specially design to fit into a 19” width rack mount enclosure. Connect Tech also offers a standardized 2U off-the-shelf enclosure that is specifically designed to fit the carrier board and all of its peripherals. Details on this can be found below. For ordering and pricing details on this enclosure please contact: sales@connecttech.com... -
Page 41: Cables & Interconnect
Connect Tech - COM Express Type-6 PMC/XMC Carrier Board - User Manual Cables & Interconnect The following table summarizes the COM Express carrier’s headers and lists the matching cables included with the optional cable kit CKG009. Cable Part PCB Connector...
