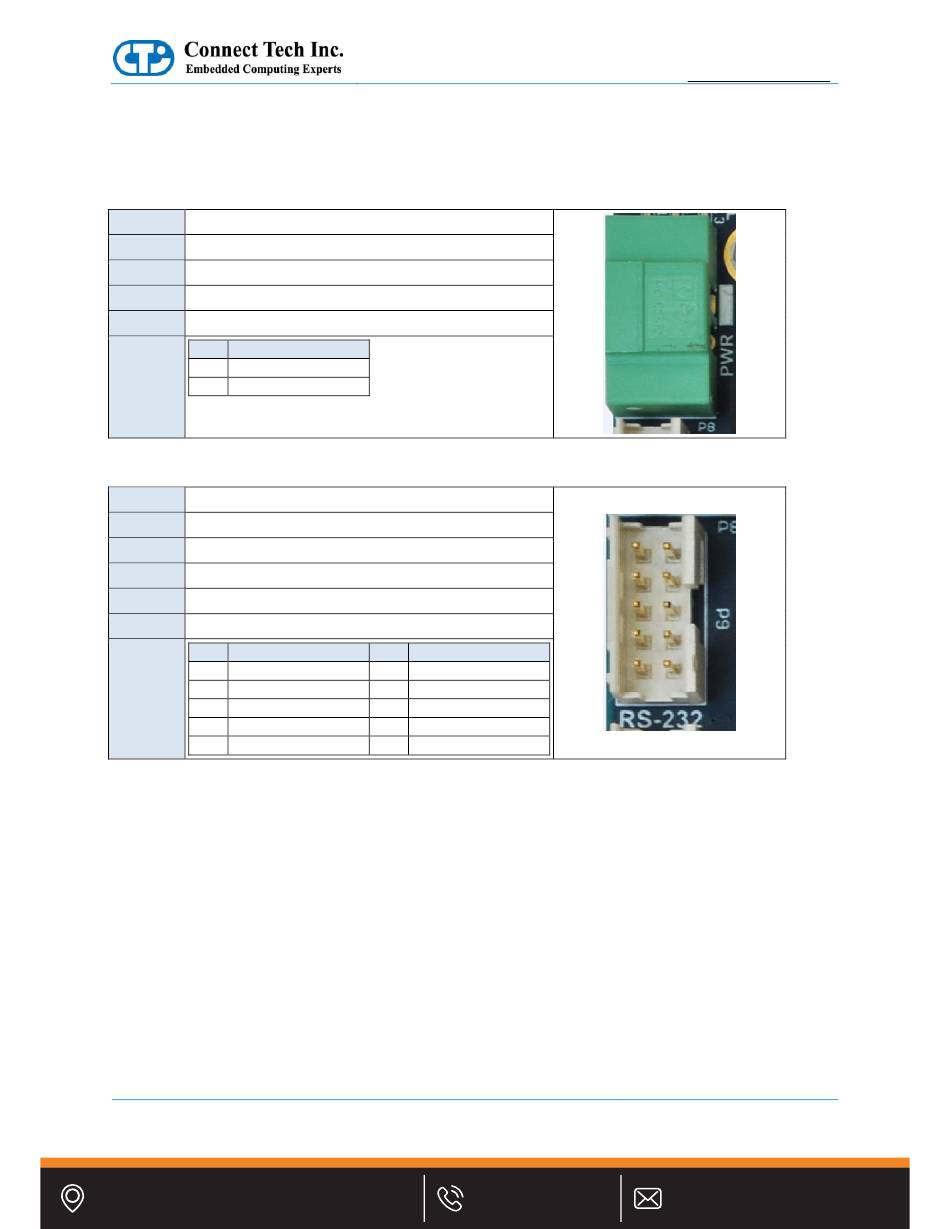

Power Input

The SMARC/SL Carrier accepts a single power input to power all on-board devices. A single +6V to +36V
input is required for operation.
Function Power
P8
Location
Type Phoenix Contact Pluggable Terminal Block
P/N 1843790
1847055
Mating
Pinout
Pin Description
1 +6V to +36V
2

Serial

Function Serial RS-232
Location P9
FCI MiniTek Double Row 5 x 2
Type
P/N 98414-G06-10LF
Mating 10073599-010LF
CBG127
Cable
Pinout
Pin Description
1
3
5
7
9
Document: CTIM-00439
Revision: 0.00
ES France - Mobilité & Systèmes Embarqués
127 rue de Buzenval BP 26 - 92380 Garches
GND
Pin Description
- 2
TX 4
GND 6
RTS# 8
- 10
Page 17 of 32
