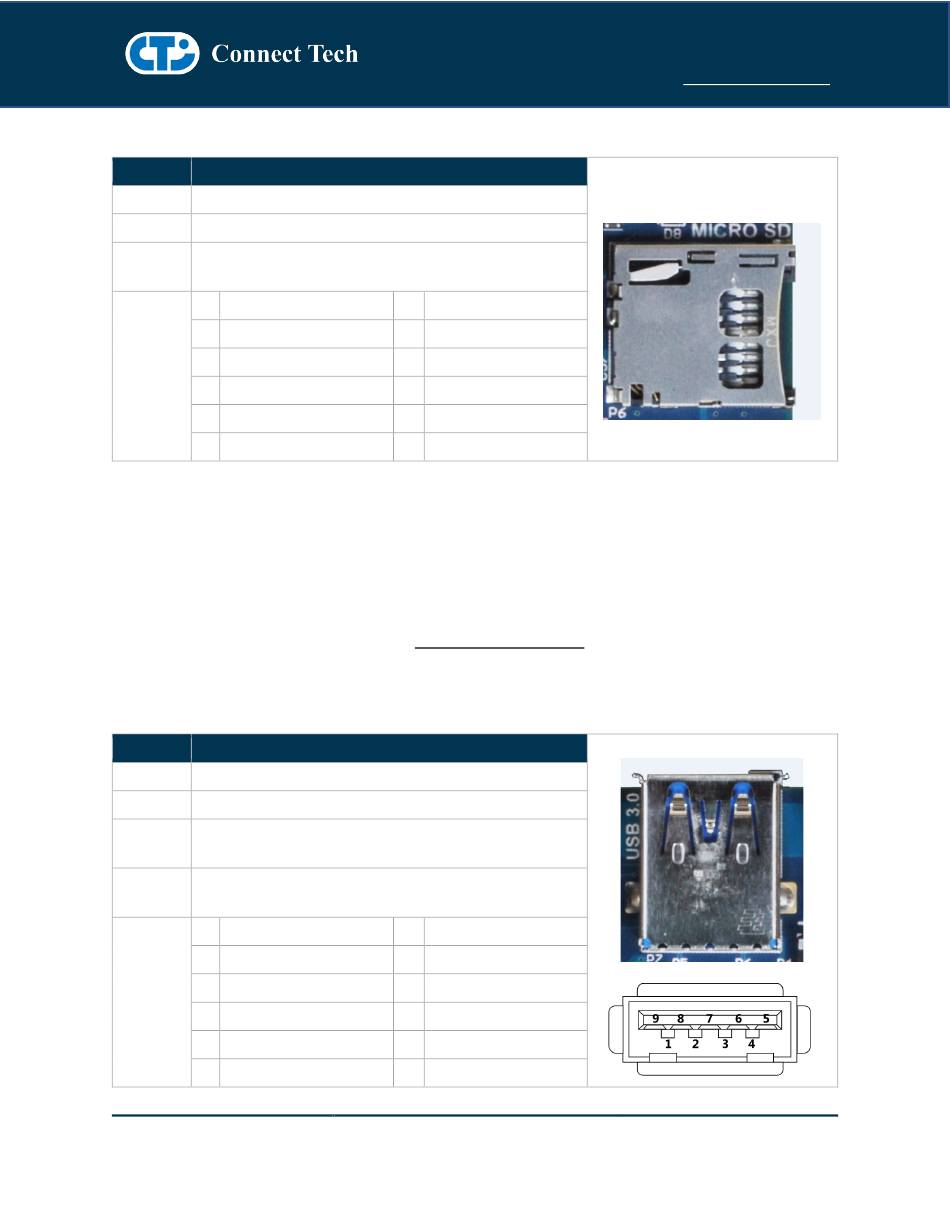

microSD Card Slot

Function
Location P7
Type Molex microSD Memory Card Connector
Carrier 502570-0893
Connector
Pinout Pin Description
1 SDIO_DATA2
3 SDIO_CMD
5 SDIO_CLK
7 SDIO_DATA0
9 GND

USB 3.0

The Orbitty Carrier provides one external USB 3.0 Port with an integrated USB 2.0 Port. The USB 3.0
signals are sourced directly from the Jetson TX2/TX2i Module. Over current protection, power supply
filtering and ESD protection is provided on-board. The current limit on this port is set to 1A, if more
current capacity is required, please contact sales@connecttech.com.
NOTE: Please note that USB3.0 support is NOT natively supported by the stock L4T builds. For USB3.0
support users must deploy CTI-L4T BSP
Function
Location P7
Type USB 3.0 Type-A
Carrier Part Number: 1932258-1
Connector Manufacturer: TE Connectivity
Mating Any USB 3.0 Type-A Cable
Connector
Pinout Pin Description
1 VBUS
3 USB 2.0 D+
5 SSRX-
7 GND
9 SSTX+
Document: CTIM-00471
Revision: 0.14
microSD Card Slot
Pin Description
2 SDIO_DATA3
4 SDIO_VCC
6 GND
8 SDIO_DATA1
10 SDIO_CD
USB 3.0
Pin Description
2 USB 2.0 D-
4 GND
6 SSRX+
8 SSTX-
Page 16 of 31
Orbitty Carrier for NVIDIA® Jetson™ TX2/TX2i
www.connecttech.com
Date: 2021-10-05
Users Guide
