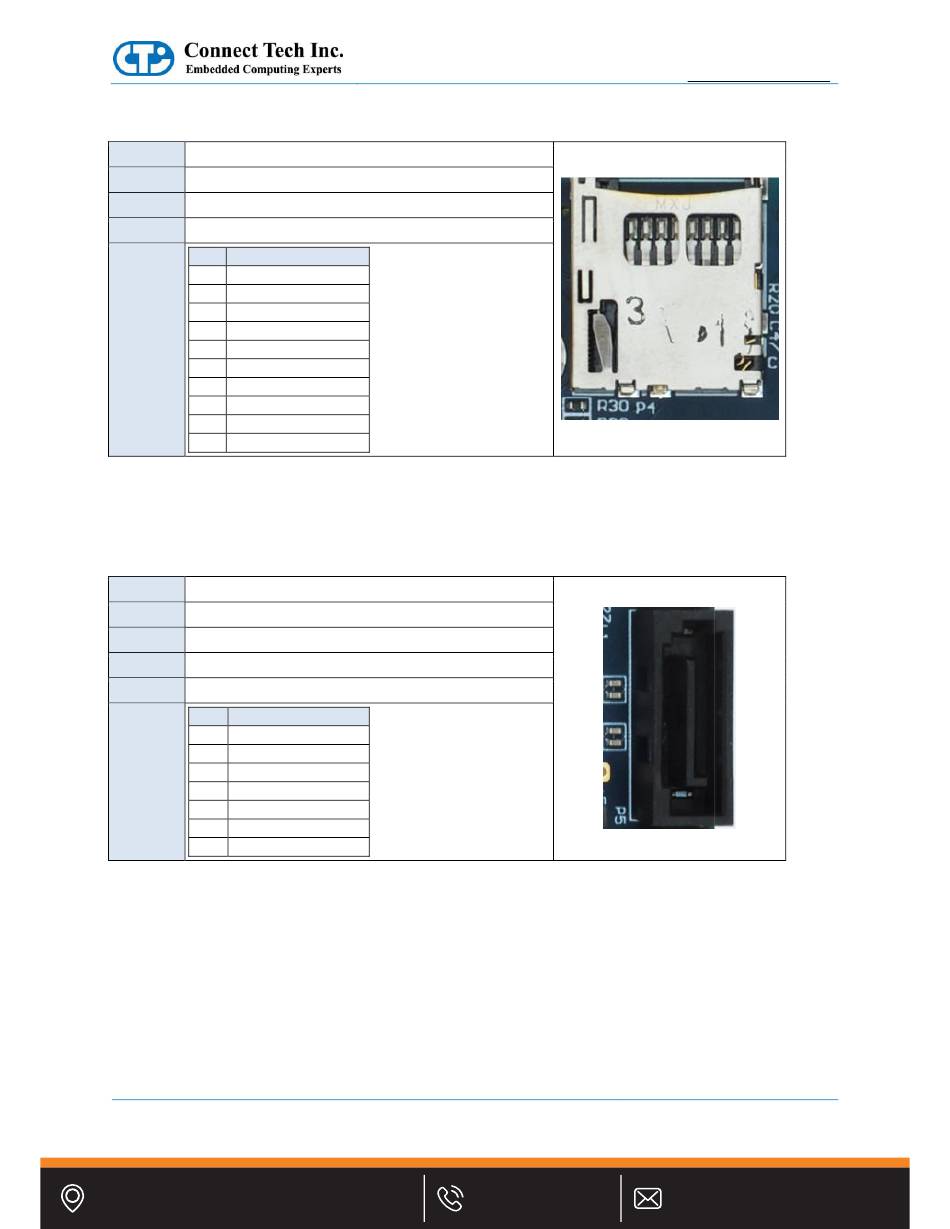

microSD Card

Function microSD Card
Location P4
Type Molex microSD Memory Card Connector
5025700893
P/N
Pinout
Pin Description
1 SD_D2
2 SD_D3
3 SD_CMD
4 SD_VDD
5 SD_CLK
6
7 SD_D0
8 SD_D1
9
10 SD_CD#

External SATA

The SMARC/SL Carrier provides an External SATA connector that is SATA/mSATA switched. Please see
Mini-PCIe/mSATA Slot description for additional details.
Function External SATA
Location P5
Type Molex Vertical Serial ATA Plug
0471554001
P/N
Cable CBG079
Pinout
Pin Description
1
2
3
4
5
6
7
Document: CTIM-00439
Revision: 0.00
ES France - Mobilité & Systèmes Embarqués
127 rue de Buzenval BP 26 - 92380 Garches
GND
GND
GND
TX+
TX-
GND
RX-
RX+
GND
