- Page 1 Boson for FRAMOS CTIM-00057 Revision 0.00 2021-04-06...
-
Page 2: Table Of Contents
Boson for FRAMOS Users Guide www.connecttech.com TABLE OF CONTENTS Table of Contents ........................2 Preface ............................4 Disclaimer ............................4 Customer Support Overview ......................4 Contact Information ......................... 4 Limited Product Warranty ....................... 5 Copyright Notice ..........................5 Trademark Acknowledgment ......................5 ESD Warning ............................ - Page 3 Boson for FRAMOS Users Guide www.connecttech.com Typical Installation ........................25 Power Consumption & Thermals ....................26 NVIDIA® Jetson™ Nano ......................26 NVIDIA® Jetson™ Xavier NX ....................26 Current Consumption Details ....................26 Software / BSP Details ......................27 Cables Included ........................27 Accessories ..........................
-
Page 4: Preface
The information contained within this user’s guide, including but not limited to any product specification, is subject to change without notice. Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. -
Page 5: Limited Product Warranty
Connect Tech Inc. provides a 1-year Warranty for this product. Should this product, in Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its option, repair or replace this product at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster or non-Connect Tech Inc. -
Page 6: Esd Warning
ESD Warning Electronic components and circuits are sensitive to ElectroStatic Discharge (ESD). When handling any circuit board assemblies including Connect Tech COM Express carrier assemblies, it is recommended that ESD safety precautions be observed. ESD safe best practices include, but are not limited to: Leaving circuit boards in their antistatic •... -
Page 7: Introduction

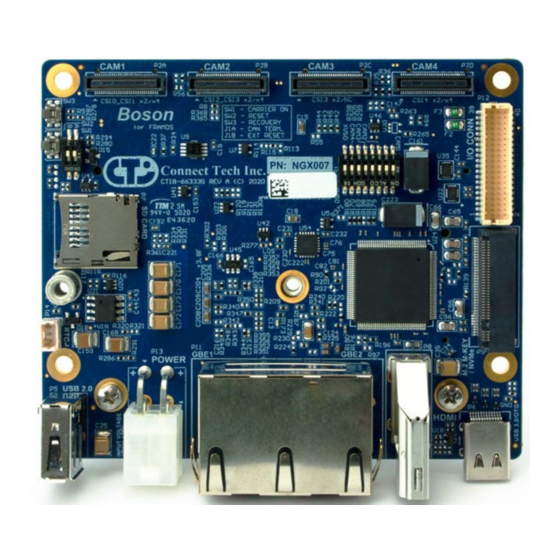

4x 2-lane or 3x 4-lane MIPI CSI-2 cameras from the FRAMOS Sensor Module Ecosystem. While Boson for FRAMOS is compatible with NVIDIA Jetson Nano, TX2 NX, and Xavier NX SoMs, some I/O availability will change across modules. View the... -
Page 8: Product Features And Specifications
2x 3.3V 2x 5V 8x GND Please review the Boson for FRAMOS Compatibility Specifications for a full breakdown of feature differences between the NVIDIA Jetson Xavier NX, NVIDIA Jetson TX2 NX and NVIDIA Jetson Nano SoMs. Document: CTIM-00057 Page 8 of 28 Date: 2021-04-06 Revision: 0.00... -
Page 9: Part Numbers / Ordering Information
Boson for FRAMOS Users Guide www.connecttech.com Part Numbers / Ordering Information Part Number NGX007 Boson for FRAMOS Carrier Board Integrated Assemblies Part Number Module Option Thermal Option Storage Option Wireless Option NGX007-01 Jetson Nano Thermal Transfer Plate No SSDs Installed... -
Page 10: Product Overview
Boson for FRAMOS Users Guide www.connecttech.com PRODUCT OVERVIEW Block Diagram Document: CTIM-00057 Page 10 of 28 Date: 2021-04-06 Revision: 0.00... -
Page 11: Connector Summary & Locations
Boson for FRAMOS Users Guide www.connecttech.com Connector Summary & Locations Top side Document: CTIM-00057 Page 11 of 28 Date: 2021-04-06 Revision: 0.00... -
Page 12: Bottom Side
Boson for FRAMOS Users Guide www.connecttech.com Bottom side Document: CTIM-00057 Page 12 of 28 Date: 2021-04-06 Revision: 0.00... -
Page 13: Switch And Jumper Summary
Boson for FRAMOS Users Guide www.connecttech.com Designator Connector Description Jetson Xavier NX / Jetson NVIDIA® Jetson Xavier™ NX / Jetson™ TX2 NX / Jetson TX2 NX /Jetson Nano/ Nano™ Module Board-To-Board Connector module connector P2A, P2B, P2C, MIPI CSI x4 connectors by... -
Page 14: Detailed Feature Description
The NVIDIA Jetson Xavier NX, Jetson TX2 NX, Jetson Nano and processor and chipset are implemented on the Jetson Modules. This connects to the NVIDIA Jetson SoM to the Boson for FRAMOS carrier board via a TE Connectivity DDR4 SODIMM 260 Pin connector. -
Page 15: Fan Connector
Description Pinout +5V_FAN FAN_TACH FAN_PWM HDMI Connector The NVIDIA® Jetson™ Nano and Xavier NX modules will output video via the Boson for FRAMOS Right Angle HDMI connector that is HDMI 2.0 capable. Function Description Location Type HDMI Right Angle Connector... -
Page 16: Framos Mipi Csix4 Connectors
Boson for FRAMOS Users Guide www.connecttech.com FRAMOS MIPI CSIx4 Connectors The Boson for FRAMOS carrier board allows FRAMOS MIPI CSIx4/CSIx2 video through the DF40HC(4.0)- 60DS-0.4V(51) connectors. Function Description Location P2A, B, D Type FRAMOS MIPI CSIx4/x2 Connector (60-pin) Mating Mating connector: DF40C-60DP-0.4V(51) -
Page 17: Framos Mipi Csix2 Connector
Boson for FRAMOS Users Guide www.connecttech.com FRAMOS MIPI CSIx2 Connector Boson for FRAMOS carrier board allows FRAMOS MIPI CSIx2 video through the DF40HC(4.0)-60DS- 0.4V(51) connectors. Function Description Location Type FRAMOS MIPI CSIx2/NC Connector (60-pin) Mating Mating connector: DF40C-60DP-0.4V(51) Connector Flex cable: FMAFC-150/60... -
Page 18: Usb 3.1 W/Otg Gen 1/2 Type-C Connector
Users Guide www.connecttech.com USB 3.1 w/OTG Gen 1/2 Type-C Connector Boson for FRAMOS incorporates a USB3.1 Gen 1/2 Type-C Connector with a 2A current limit. Allows host mode access to the module or OTG flashing of the module. Function Description... -
Page 19: M.2 M-Key 2280 Nvme Connector
Mating M-key NVMe Connector Pinout Refer to M.2 standard NGFF M.2 E-key 2230 Wi-Fi/BT Connector Boson for FRAMOS implements an M.2 2230 E-Key for a PCIe x1, USB 2.0 Wi-Fi/Bluetooth Module. Function Description Location Type M.2 E-key 2230 Mating Connector E-key Wifi/BT... -
Page 20: Microsd Card Connector
Refer to SD Card Standard Misc. I/O Connector Boson for FRAMOS implements a Hirose DF20G-40DP-1V(56) Connector to allow for additional user control. 2x SPI (SPI0, SPI1), 3x UART (UART0, UART1, UART2 – DEBUG), 2x I2C (I2C0, I2C1), 1x CAN, 6x GPIO (From I2C Expander), and 2x PWM (GPIO07 From Module, GPIO13 From Module). - Page 21 Boson for FRAMOS Users Guide www.connecttech.com Power UART2_TX (3.3V Max., Console debug) UART2_RX (3.3V Max., Console debug) Power I2C0_SCL (3.3V Max.) I2C0_SDA (3.3V Max.) Power GPIO0 (3.3V Max.) GPIO1 (3.3V Max.) Power GPIO2 (3.3V Max.) GPIO3 (3.3V Max.) GPIO4 (3.3V Max.) GPIO5 (3.3V Max.)
-
Page 22: Power Connector
Boson for FRAMOS Users Guide www.connecttech.com Power Connector Boson for FRAMOS implements a Mini-Fit Jr. 4-Pin Power Connector that accepts +9V to +36V DC power. Function Description Location Type Mini-Fit Jr. 4-Pin Connector Minimum Input +9V DC Voltage Maximum Input... -
Page 23: Force Recovery Pushbutton
Pushbutton Carrier Power ON – no module Boson for FRAMOS allows for the platform to have the carrier’s power rails turned ON when no Jetson NVIDIA module is connected. To enable this, move the DIP switches to the ON position. -
Page 24: Camera Xvs0 Dip Selection
Boson for FRAMOS Users Guide www.connecttech.com Camera XVS0 DIP Selection Boson for FRAMOS implements an 8 position DIP Switch for the selection of different FRAMOS Camera XVS0 signals. Do not change from defaults. Function Description Location Type 8 position DIP switch... -
Page 25: Typical Installation
Boson for FRAMOS Users Guide www.connecttech.com TYPICAL INSTALLATION 1. Ensure all external system power supplies are off and disconnected. 2. Install the necessary cables for your application. At a minimum these would include: a. Power cable to the input power connector. -
Page 26: Power Consumption & Thermals
Boson for FRAMOS has an Operating Temperature Range of -25°C to +85°C. However, it is important to note that the NVIDIA® Jetson™ module has its own properties separate to that of the Boson for FRAMOS Carrier Board, and care should be taken to not exceed module maximum component temperatures. -
Page 27: Software / Bsp Details
Users Guide www.connecttech.com SOFTWARE / BSP DETAILS All of Connect Tech’s NVIDIA Jetson based products are built upon a modified Linux for Tegra (L4T) Device Tree that is specific to each unique product. WARNING: The hardware configurations of Connect Tech’s products differ from that of the NVIDIA supplied evaluation kit. -
Page 28: Recommended Cameras
Boson for FRAMOS Users Guide www.connecttech.com RECOMMENDED CAMERAS Recommended Cameras Vendor Product Name Image Sensor Sensor Type Max Resolution FRAMOS FSM-AR0144 AR0144 Global Shutter 1M (1280×800) FRAMOS FSM-AR0521 AR0521 Rolling Shutter 5M (2592×1944) FRAMOS FSM-AR1335 Color AR1335 Rolling Shutter 4K (4208×3120)
