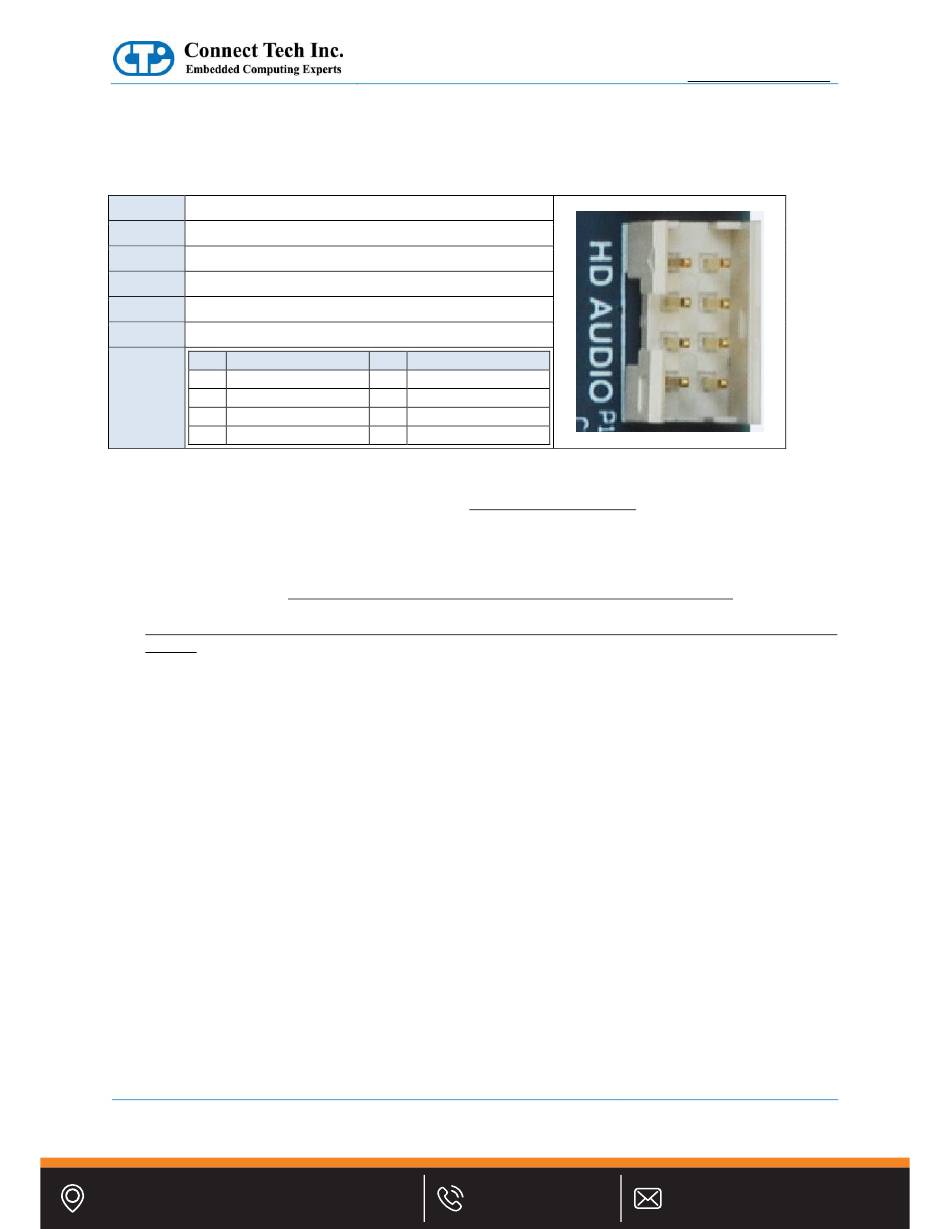

HD AUDIO

The SMARC Carrier features HD Audio capabilities with the assistance of the Cirrus Logic CS4207 Codec
device. From the Codec, 1 Microphone Input and 1 Headphone Output are available.
Function HD Audio
P1
Location
Type FCI MiniTek Double Row 4 x 2
P/N 98414-G06-08LF
10073599-008LF
Mating
Cable CBG118
Pinout
Pin Description
1
3 MIC IN R
5
7 HP OUT R

Software Support for the CS4207

The audio codec used on the SMARC Carrier is the CS4207 from Cirrus Logic.
Additional drivers will be needed to properly operate audio on the SMARC Carrier. Some downloadable links
can be found below.
Windows XP Driver: http://www.cirrus.com/en/pubs/software/CS4207_WinXP_1-0-0-38.zip
Windows 7/8 Driver:
http://www.cirrus.com/en/support/lic/lic3.html?uri=/en/pubs/software/CS4207_LogoedDriverPackage_6-6001-
1-39.zip
Linux Driver: Included in kernels 2.6.30 and up.
Document: CTIM-00439
Revision: 0.00
ES France - Mobilité & Systèmes Embarqués
127 rue de Buzenval BP 26 - 92380 Garches
Pin Description
- 2
4 MIC IN L
GND 6
8 HP OUT L
