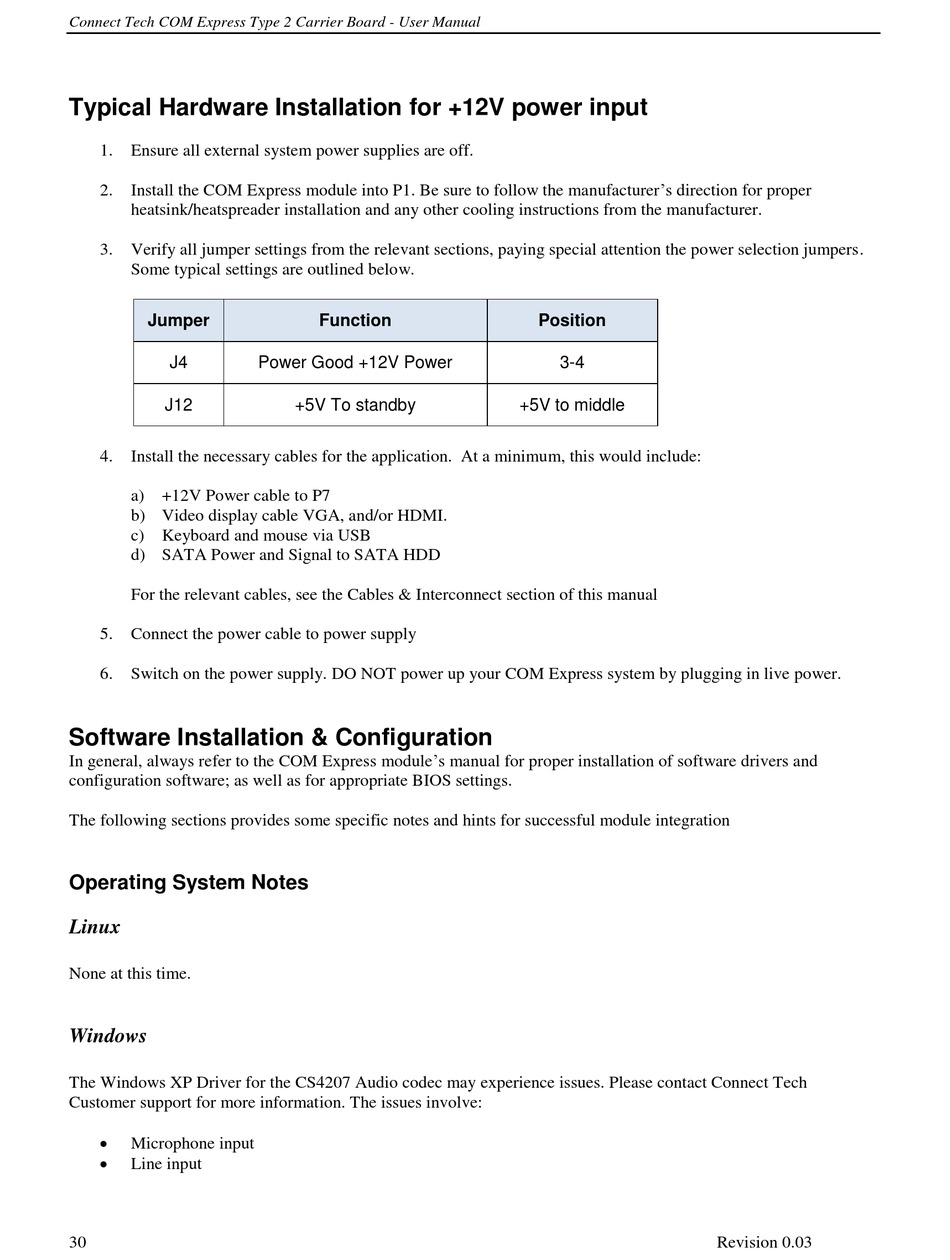

Connect Tech COM Express Type 2 Carrier Board - User Manual
Typical Hardware Installation for +12V power input
1.
Ensure all external system power supplies are off.
2.
Install the COM Express module into P1. Be sure to follow the manufacturer's direction for proper
heatsink/heatspreader installation and any other cooling instructions from the manufacturer.
3.
Verify all jumper settings from the relevant sections, paying special attention the power selection jumpers.
Some typical settings are outlined below.
Jumper
J4
J12
4.
Install the necessary cables for the application. At a minimum, this would include:
a) +12V Power cable to P7
b) Video display cable VGA, and/or HDMI.
c) Keyboard and mouse via USB
d) SATA Power and Signal to SATA HDD
For the relevant cables, see the Cables & Interconnect section of this manual
5.
Connect the power cable to power supply
6.
Switch on the power supply. DO NOT power up your COM Express system by plugging in live power.
Software Installation & Configuration
In general, always refer to the COM Express module's manual for proper installation of software drivers and
configuration software; as well as for appropriate BIOS settings.
The following sections provides some specific notes and hints for successful module integration
Operating System Notes
Linux
None at this time.
Windows
The Windows XP Driver for the CS4207 Audio codec may experience issues. Please contact Connect Tech
Customer support for more information. The issues involve:
Microphone input
Line input
30
Function
Power Good +12V Power
+5V To standby
Position
3-4
+5V to middle
Revision 0.03
