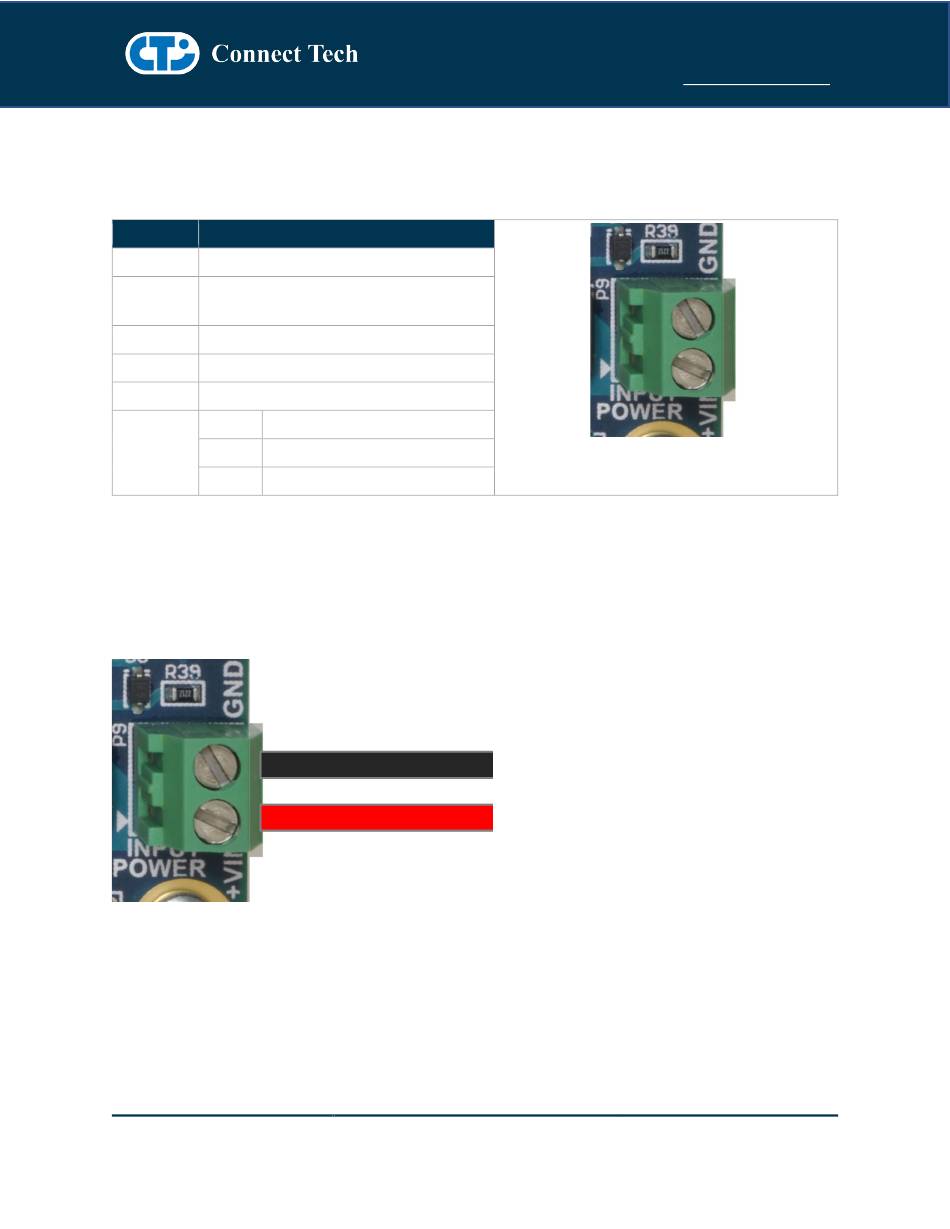

Input Power

The Orbitty Carrier accepts a single power input to power all on-board devices.
A power input range of +9V to +14V is recommended.
Function
Location P9
Type 3.5mm Pitch Wire-to-Board Screw
Terminal
P/N Texas Instruments 1546551-2
Mating Stripped and Tinned 8-22 AWG Wire
Cable MSG064, MSG072
Pinout Pin Description
1 +VIN
2 GND

Input Power - Wiring

The positive wire should be connected to the +VIN terminal, and the negative wire should be connected
to the GND terminal.
