User's Manual | ACOM 700S | 1.8-54 MHz Linear Amplifier

5.3. Menu CAT/AUX SETTINGS (Selection of CAT/AUX interface)

After a CAT cable is connected to both the transceiver and amplifier, the correct settings for the transceiver
have to be entered via this menu. If there is no CAT connection, OFF has to be selected as Interface type.
The CAT settings are accessible only in RX mode (see
. An item is selected by the
CAT/AUX SETTINGS
is set with the SELECT and SELECT
brackets [x] on the screen.
If the amplifier CAT port is connected to the transceiver via either BCD Band Data or Band VOLTAGE output,
select the respective interface type on top row and push EXIT button. The other items and values will be
ignored with such a selection.
If the CAT cable is plugged into the transceiver's serial port, select the interface and command set according
to

Table 5-1 | Transceiver interface

byte spacing and polling time may be left unchanged.
Last select the interface type (RS-232 or TTL) according to the
connection, then push EXIT button to return to MENU SELECTION.
If there is no CAT connection, but CAT INTERFACE is selected (activated) an error
message will be displayed when you change the band.
April 2024

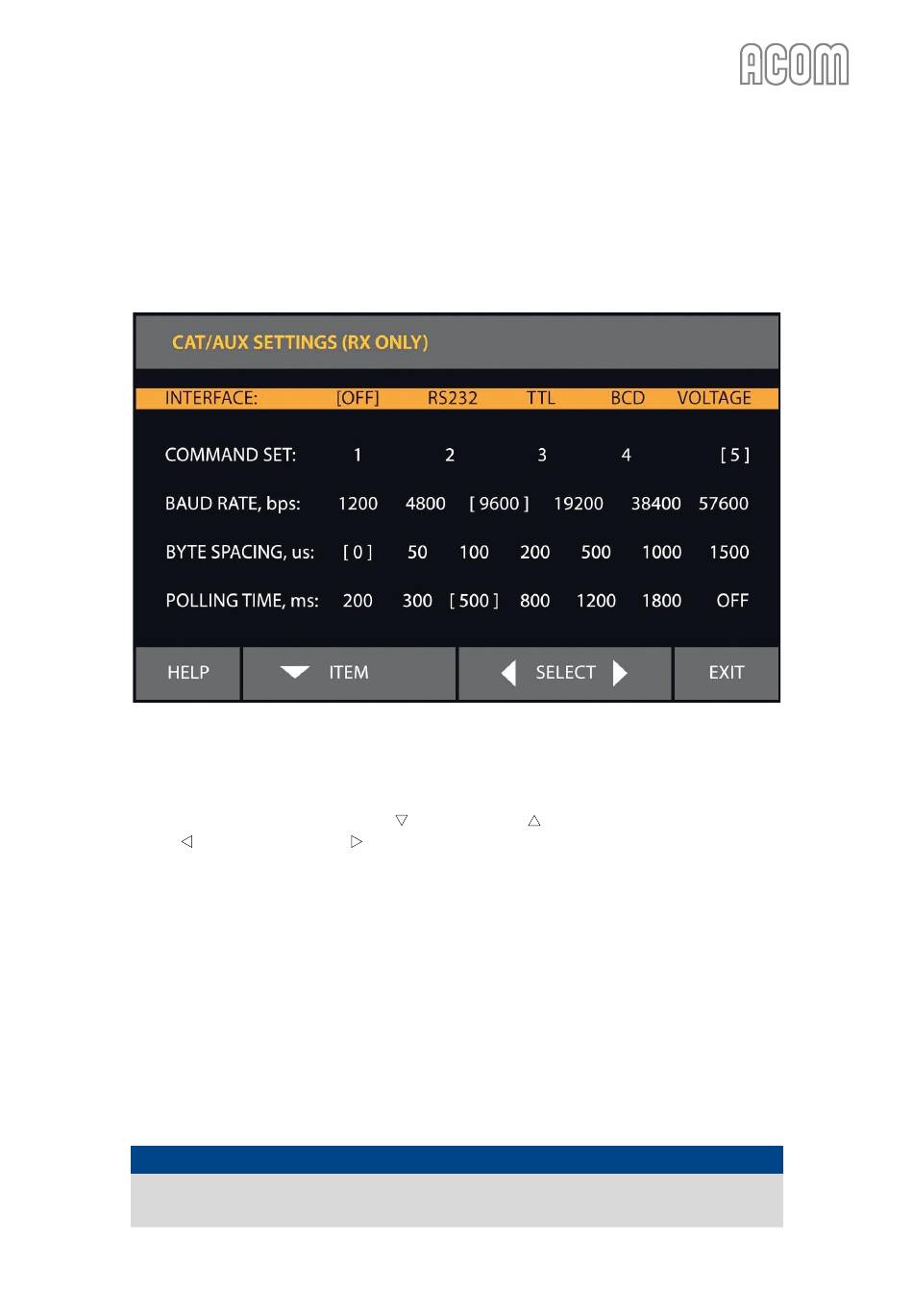

Figure 5-4 | Menu CAT/AUX SETTINGS

Figure 5-4 | Menu CAT/AUX SETTINGS
Figure 5-1 | MENU SELECTION
ITEM and ITEM
buttons (left or right arrows). Your selection appears in square
. The baud rate has to be set to the same value as the transceiver's. The
NOTICE
S e c t i o n MENUS - SETTINGS AND OPTIONS | Page 49 of 92
and
buttons (up and down arrows). The value
Table 5-1 | Transceiver interface
Figure 5-4 | Menu
and used
