Menu CAT/AUX SETTINGS (Selection of CAT/AUX Interface)

5.3.
After a CAT cable is connected between the transceiver and amplifier, the correct settings for the
transceiver have to be set via this menu. If there is no CAT connection, OFF has to be selected as Interface
type.
The CAT settings are accessible only in RX mode (see
. An item is selected by the
CAT/AUX SETTINGS
is set with the SELECT and SELECT
brackets [x] on the screen.
If the amplifier CAT port is connected to the transceiver via either BCD Band Data or Band VOLTAGE output,
select the respective interface type on top row and push EXIT button. The other items and values will be
ignored with such a selection.
If the CAT cable is plugged into the transceiver's serial port, select the interface and command set according
to
Table 5-1 Transceiver interface type and command set selection
value as the transceiver's. The byte spacing and polling time may be left unchanged.
Last select the interface type (RS-232 or TTL) according to the
and used connection, then push EXIT button to return to MENU SELECTION.
command set selection
August 2021
Figure 5-1 MENU SELECTION
ITEM and ITEM
buttons (left or right arrows). Your selection appears in square

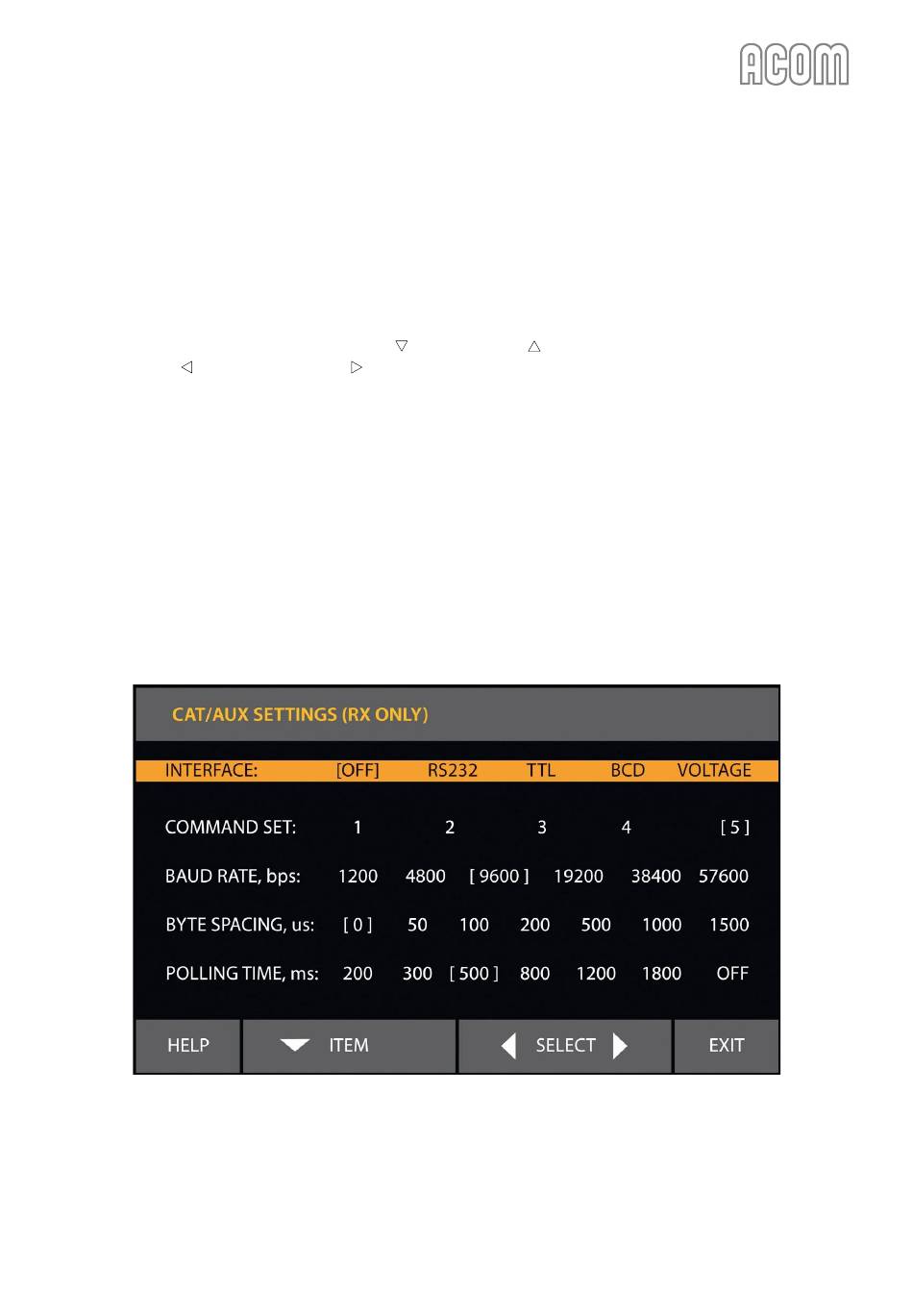

Figure 5-4 Menu CAT/AUX SETTINGS
