User's Manual | ACOM 700S | 1.8-54 MHz Linear Amplifier
Click on the Disconnect icon (two separated plugs) or use Device -> Disconnect from the
•
menu bar to disconnect from the amplifier.
Open the Settings window by clicking on the Settings icon (two gears) or use Tools ->
•
Settings from the menu bar. In the Settings window -> tab Serial port, configure the settings
as shown in
-
April 2024

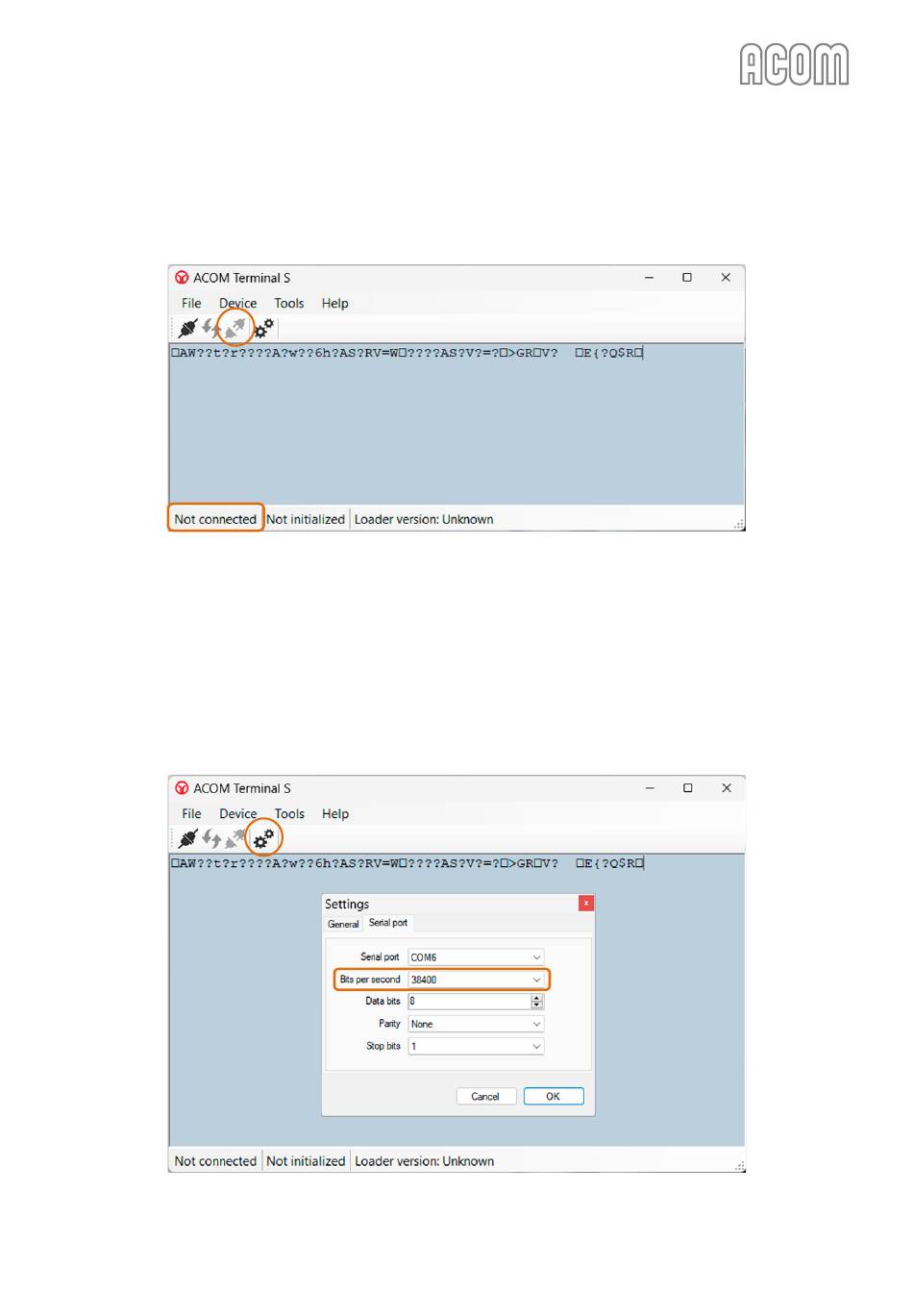

Figure 7-14 | Terminal S - Disconnect

Figure 7-14 | Terminal S - Disconnect

Figure 7-15 | Terminal S - Change Bits per Second

Serial port settings
(change "Bits per second" parameter only);
Figure 7-15 | Terminal S - Change Bits per Second
Figure 7-15 | Terminal S - Change Bits per Second
:
34800, 8, None, 1
S e c t i o n MAINTENANCE | Page 71 of 92
