Figure 7-12 | Terminal S - Connect To Amplifier; Figure 7-13 | Terminal S - Firmware Upload/Download - Acom 700S User Manual

Connect ACOM Terminal S to the amplifier by clicking on the Connect icon (two connected
•
plugs) or use Device -> Connect from the menu bar;
When connected click on the Firmware Upload/Download icon (two arrows in opposite
•
directions) or use Device -> Firmware upload/download from the menu bar to activate the
Bootloader;
When the bootloader has been activated there will be beeps from the amplifier and the
front display will go black.
Page 70 of 92 | S e c t i o n MAINTENANCE

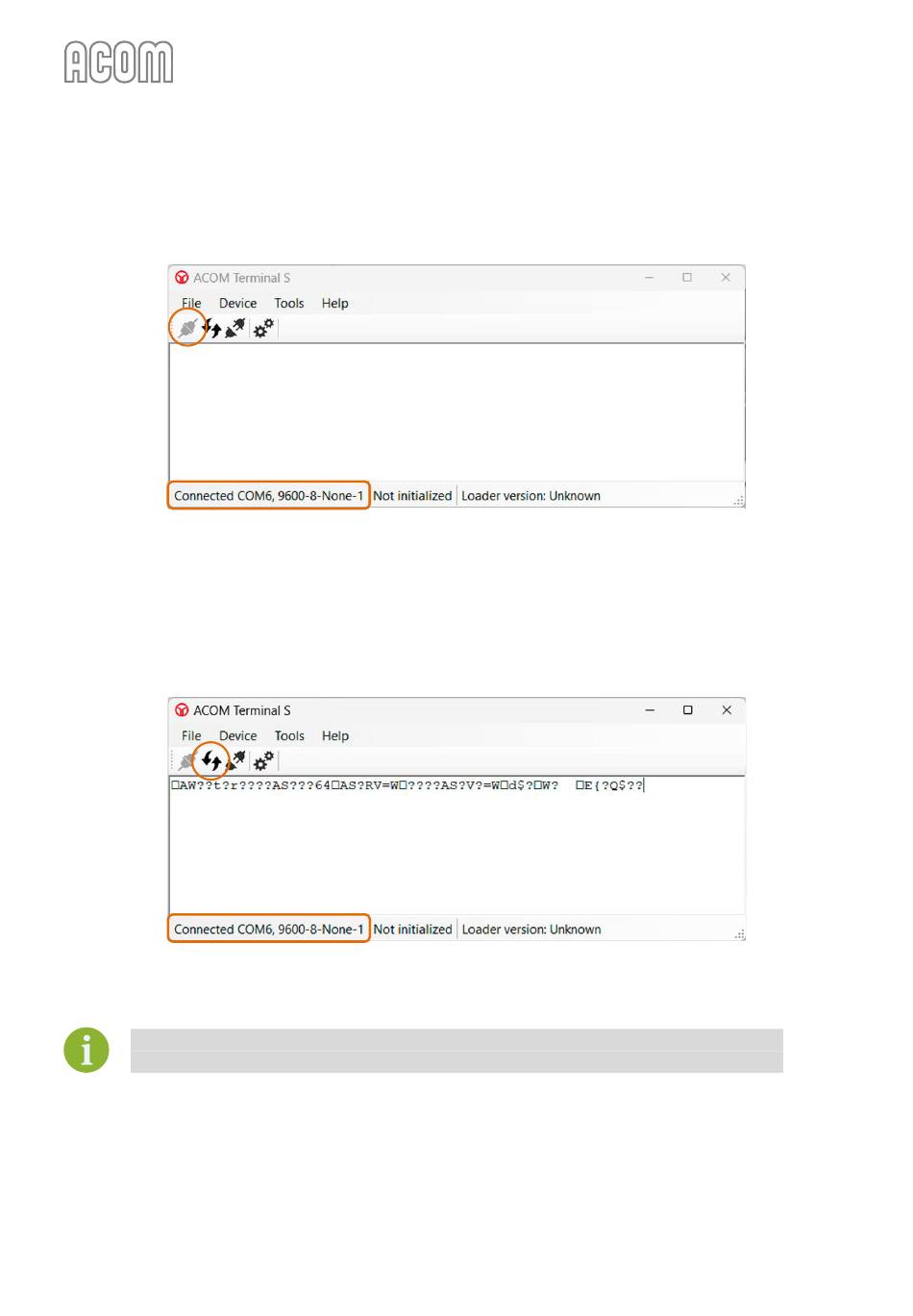

Figure 7-12 | Terminal S - Connect to amplifier

Figure 7-12 | Terminal S - Connect to amplifier

Figure 7-13 | Terminal S - Firmware Upload/Download

Figure 7-13 | Terminal S - Firmware Upload/Download
