3.4. Basic Screen

The following information areas are to be distinguished on the basic screen:
a) Information area for the frequency band
Please, see

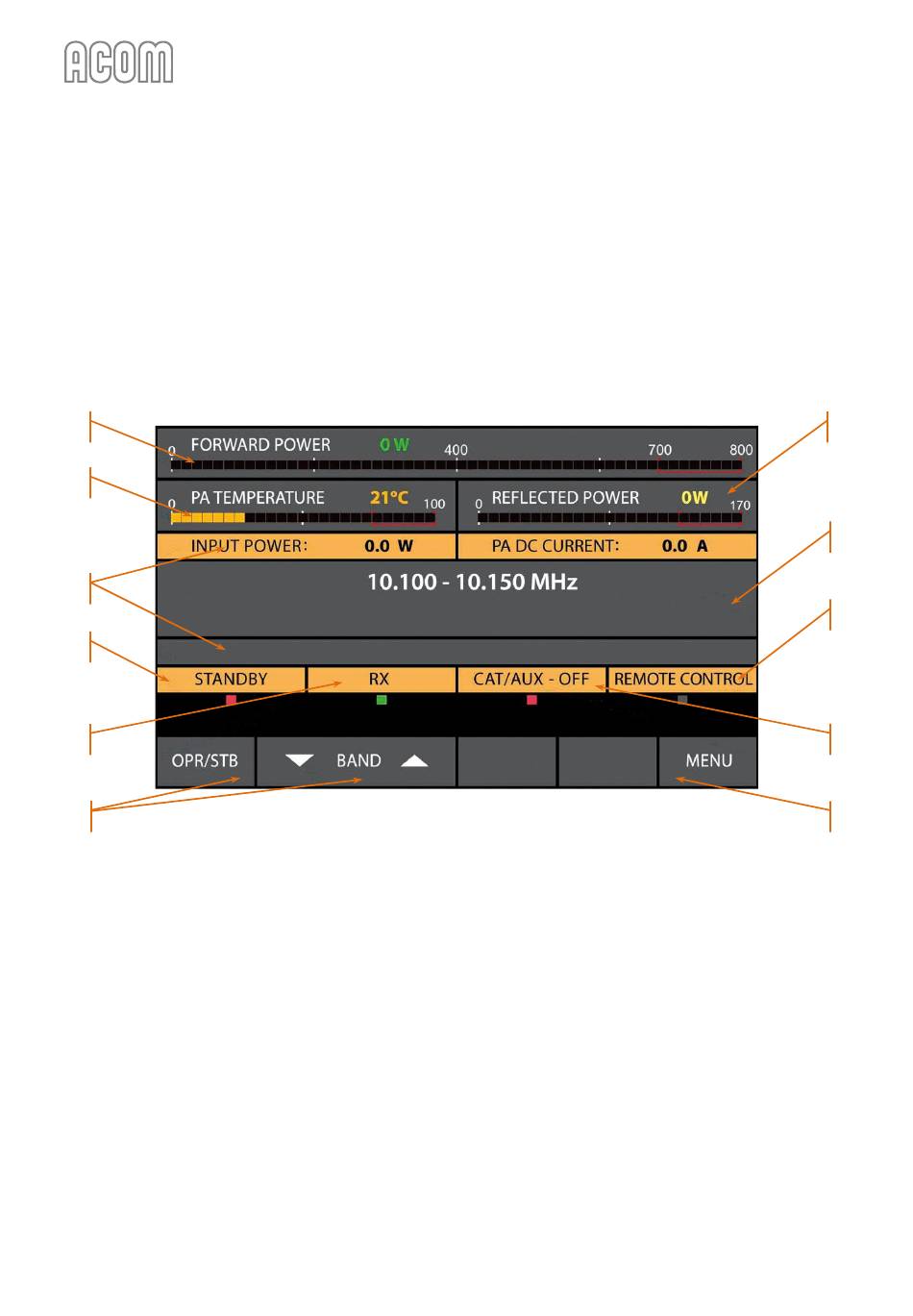

Figure 3-2 | Basic screen

The edges of the currently selected BAND are displayed. If the amplifier does not receive any operating
frequency data from CAT or via RS-232, it will switch to the last used band.
e)
g)
b)
c)
d)
1
b) Operating values and alarm messages area
Please, see
Figure 3-2 | Basic screen
Any two operating values selected in the AMP MEASURE menu will be shown here (see Section
AMP MEASURE (Amplifier Measurements)
The alarm messages (either WARNING or SOFT FAULT) appear on yellow background on the same area and
are flashing frequently in order to attract the operator's attention (see
).
message
The WARNING messages appear only temporarily (for about three seconds), afterwards the indication of
the operating values is restored automatically (see Section
The SOFT FAULT messages appear in the same field but they remain on the screen until the AUTO OPERATE
time is elapsed (see Section
the operating values (regime measurands) indication is restored too.
Page 32 of 92 | S e c t i o n FIRST POWER-ON, CONTROL SYSTEM, AND INITIAL CHECK
, Pos. (a).
Figure 3-2 | Basic screen
Figure 3-2 | Basic screen
, Pos. (b).
).
4.1.c) AUTO OPERATE user setting
User's Manual | ACOM 700S | 1.8-54 MHz Linear Amplifier
Figure 4-4 | Appearance of an alarm
4.4.a) First protection level - WARNING
) or until the operator pushes any button, then
f)
a)
i)
h)
2)
5.1 Menu
).
