Note that some of the connections - to the transceiver's BCD band data outputs and
Band Voltage outputs do not provide an exact frequency data, but only band data. Those
connections cannot be used when ACOM 700S works together with ACOM 04AT or 06AT
because the tuner needs to know the exact frequency, not only the band.
Besides the RS-232 and TTL compatible serial interface, the CAT connector also carries
the KEY IN and KEY OUT lines, which can be used instead of using separate cables for
those functions from the transceiver to the sockets of the same names.
CAT/AUX
Pin Nr.
interface
1
2
3
4
5
6
7
8
D-sub
9
connector,
15-pin,
10
3-row,
11
female
12
(Rear panel
13
view)
14
15
Page 28 of 92 | S e c t i o n INSTALLATION

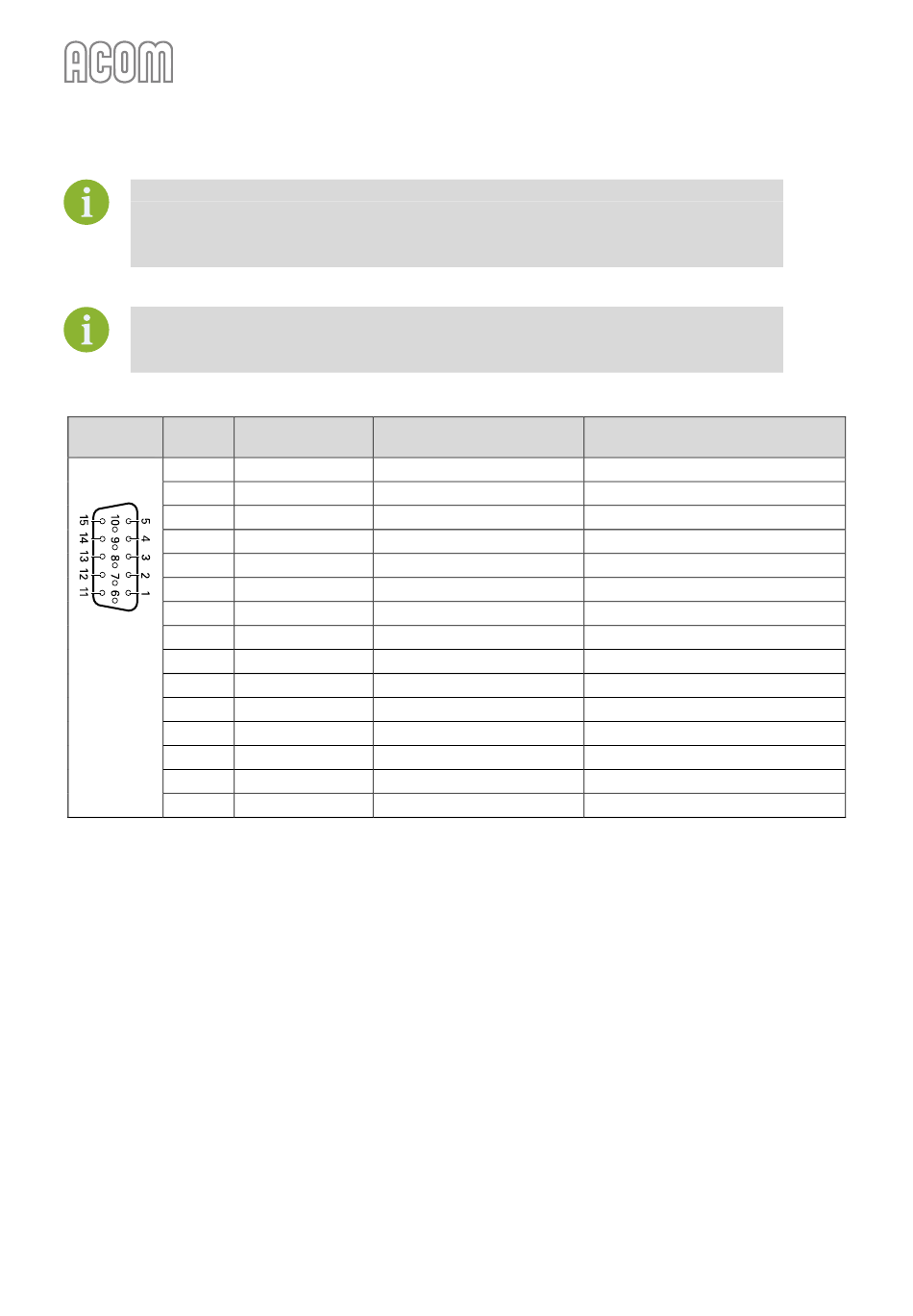

Table 2-2 | Signals and pin out of the CAT/AUX connector

Pin name
RxD Receive Data
RxD Receive Data
TxD Transmit Data
TxD Transmit Data
GND Ground
BAND voltage Analogue input
Band data 0 Bit 0
Band data 1 Bit 1
Band data 2 Bit 2
Band data 3 Bit 3
ON RMT Remote Pwr On
Debug mode CPU only Pwr input
KEY IN Tx request
KEY OUT Tx Ready
GND Ground
Table 2-2 | Signals and pin out of the CAT/AUX connector
User's Manual | ACOM 700S | 1.8-54 MHz Linear Amplifier
Description
TTL input
RS-232 input
RS-232 output
TTL output
0 Volt
0 to +8 V
TTL input
TTL input
TTL input
TTL input
+4.5 to +15 V / 3 mA max
+8 to +15 V / 0.4 A
Less than +12 V / 6 mA
O.C. output, up to +50 V / 20 mA
0 Volt
Specification
