5.1. Menu AMP MEASURE (Amplifier Measurements)

The menu AMP MEASURE (see
screen (see
Figure 5-1 | MENU SELECTION
parameters.
Two identical lists appear on the left and the right halves of the screen, each one containing the same 11
values.
Any value can be selected in each screen half. Using buttons
select the desired values. The two selected values will appear also on the basic screen continuously (see
, Pos (b)) - after leaving this menu (EXIT button).
Figure 3-2 | Basic screen
The measured values of the quantities in the AMP SERVICE menu are indicative only.
The ACOM amplifier is not a measuring instrument in the sense of a calibrated
(laboratory) instrument, i.e. the measured values can not be used as a reference or
compared with any other measured values from calibrated (laboratory) instruments.
April 2024

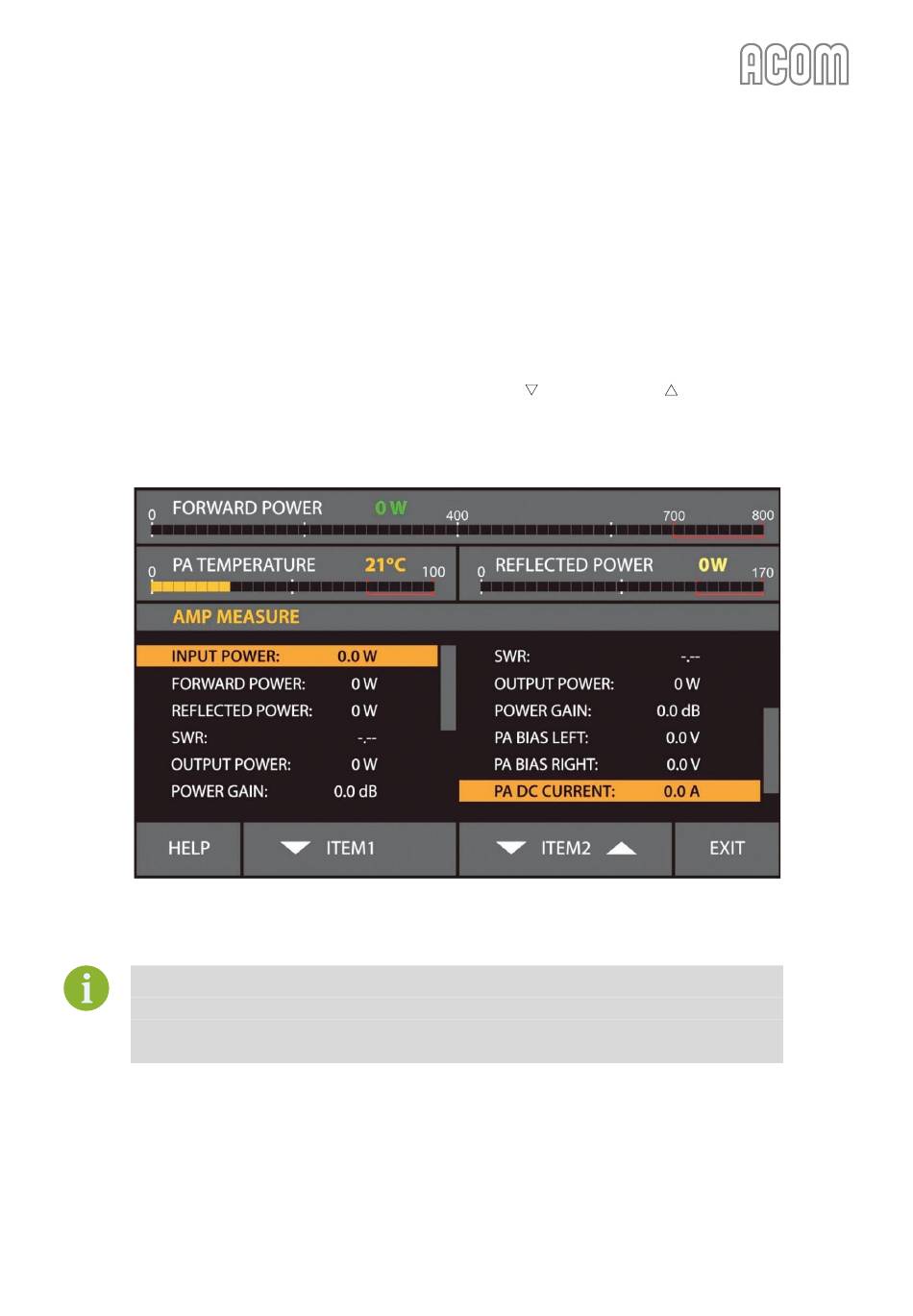

Figure 5-2 | Menu AMP MEASURE
