o Single relay with NO/NC contact
o Acceptable load




Relay type: Freely programmable

Number of program steps: 200

Timers: from 0.1 to 24h

Controller state indication: 2 x LED

Power consumption:
o 0.8 W with relay on
o 0.4 W in standby mode

Operating temperature: -25 ... + 50 degrees

Thermal protection: 70 degrees

Terminal: Screw terminals, max. 2.5 mm

Installation: on DIN rail. Size 1S

Ingress protection: IP20

Connection schemes

PCS533 programmable time relay – User manual v. 1.0.1
16 A for 250 V AC voltage in load class AC-1
16 A for 24 V DC voltage
1 A for >24 V DC voltage

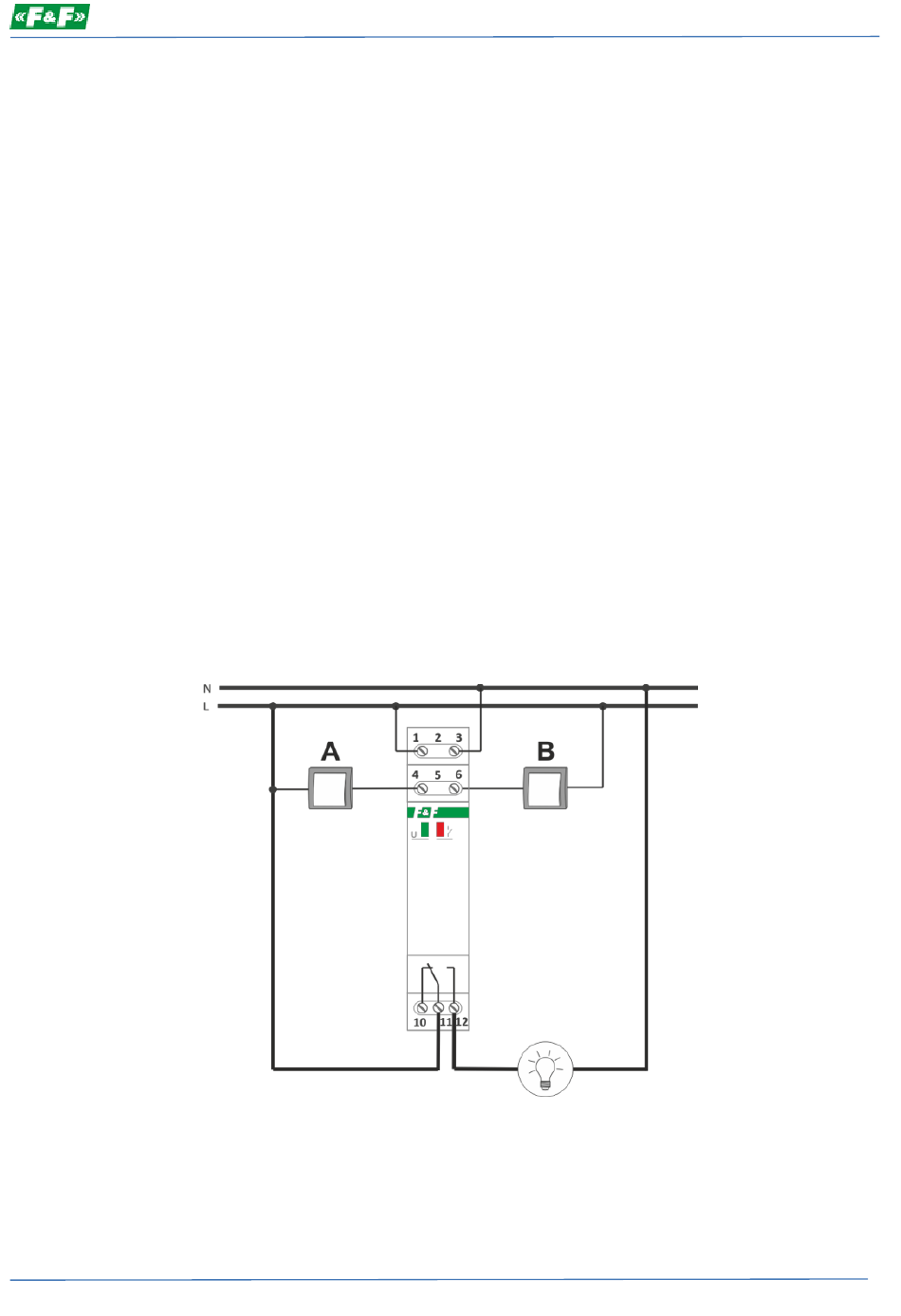

Fig. 2) Alternating voltage power supply (control with level L)
