Templates
Templates are pre-defined programs to implement a number of basic functions that are required of time
controllers. These programs are presented in the form of a list containing a graphical diagram of operation and a
brief description of each functionality (Fig. 19).

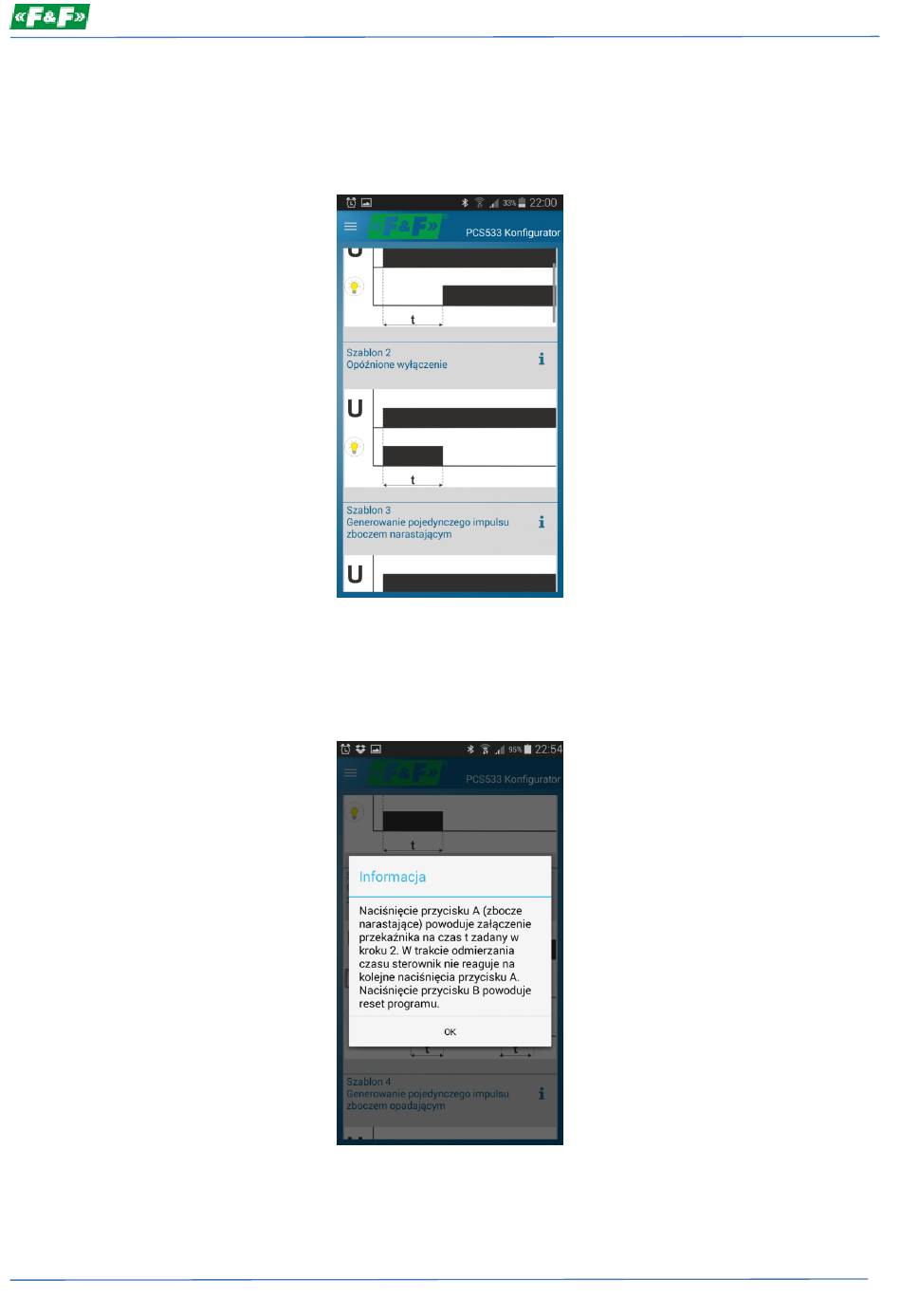

Fig. 19) Templates
Detailed information on the program carried out by the template can be displayed by pressing the „i" symbol that
is located next to the description of the template (Fig. 20).
Fig. 20) Description of the exemplary template
After selecting a template, its content will be copied to the program editor from where it can be copied directly to
the controller or it can be modified according to your needs.
