Template list

01) Delayed switching on

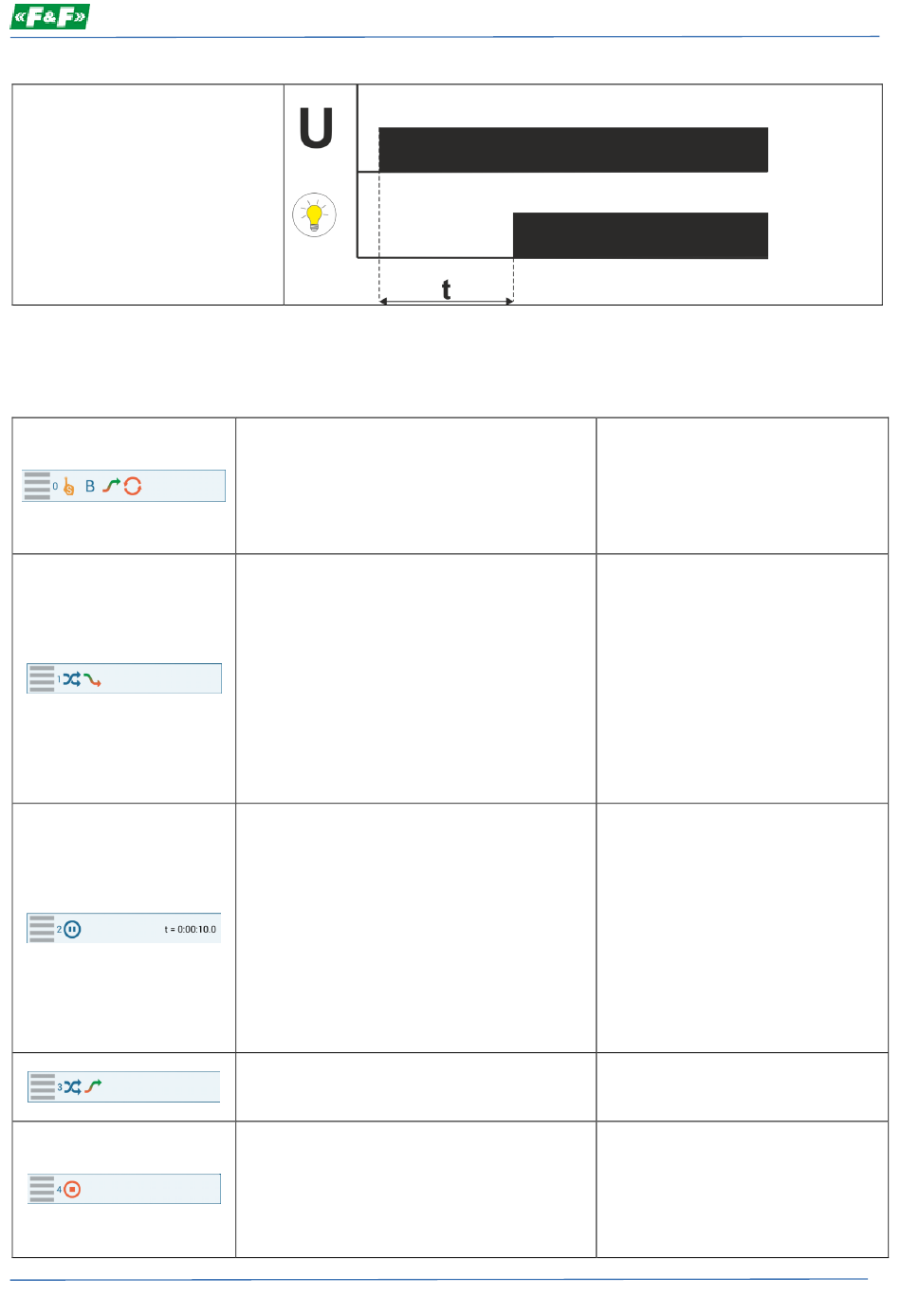

After switching on the power supply the controller measures the preset time t and then switches on the relay and
stops the execution of the program. Pressing the button B resets the program.
PCS533 programmable time relay – User manual v. 1.0.1
Command: Input B – special function
Type: Rising edge
Action: Reset
Time: 0 s
Command: Input
Type: Turn on
Time: 0 s
Command: Pause
Time: 10 s
Command: Input
Type: Turn on
Time: 0 s
Command: Stop
Time: 0 s
The Reset function is assigned to
the input B. Pressing at any time the
button connected to input B will
reset the controller
program will start again from the
beginning.
Set the relay in the off position.
Time 0 - the relay will remain off
until the next Output command will
change it.
Warning: The command may be
considered redundant in
this case, because after the
reset of the controller the
relay is by default set in the
off position.
Pause suspends the execution of
the rest of the program for a preset
time (default - 10 s). After this time
the next step of the program is
executed.
Warning: The time that is set here
determines the delay of
the switching on of the
relay. If necessary, set the
time to the desired value.
Set the relay in the on position.
Time is set to zero so the relay will
remain on.
Stop the execution of the program.
The relay stays on because of the
command from the previous step.
Special function Reset that is
assigned to button B is still active.
Pressing the B button will reset the
and the
