F&F PCS-516 DUO Manual

F&F PCS-516 DUO Manual

Time relay, 10-function

Advertisement

Quick Links

PCS-516 DUO
Time relay,
10-function
Do not dispose of this device in the trash along with other waste!
According to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collec� on, as well as to store the occasion of
the purchase of new equipment (in accordance with the principle of old-for-new, regard-
less of brand). Electro thrown in the trash or abandoned in nature, pose a threat to the
environment and human health.
Purpose
The PCS-516 DUO time relay is used for time control in industrial
and home automation systems (such as : ventilation, heating,
lighting, signaling, etc.).

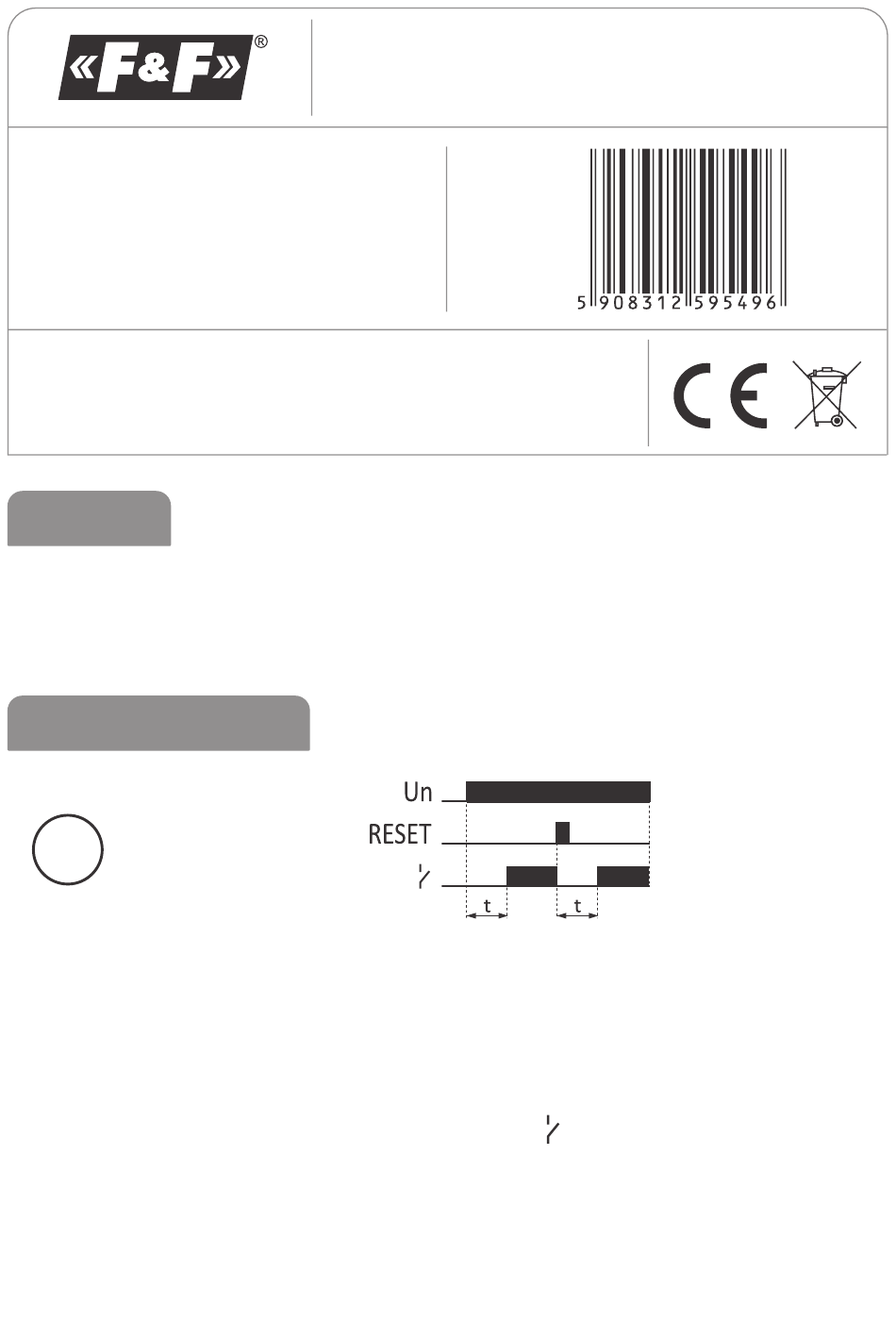

Features of work
A
A. ON delay
After the supply voltage is switched on (the green LED U is on),
the contact remains in position 11-10 and the set operating time
counts down. After the preset time has elapsed, the contact swi-
tches to position 11-12 (the red LED
operating mode of the relay again you need to switch off the
power supply voltage and switch it back on.
F&F Filipowski sp. j.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
- 1 -
is on). To execute the

Advertisement

loading
Need help?

Need help?

Do you have a question about the PCS-516 DUO and is the answer not in the manual?

Questions and answers

Summary of Contents for F&F PCS-516 DUO

  • Page 1 Electro thrown in the trash or abandoned in nature, pose a threat to the environment and human health. Purpose The PCS-516 DUO time relay is used for time control in industrial and home automation systems (such as : ventilation, heating, lighting, signaling, etc.).
  • Page 2 B. OFF delay The contact remains in position 11-10 until the relay is switched on. After the supply voltage is switched on (the green LED U is on), the contact is switched in position 11-12 and the set ope- rating time t is measured (the red LED is on).
  • Page 3 Generating pulse 0.5 s after the preset time t. Generating a single pulse with time t by the rising edge of the ����� signal. During the time measurement, the system does not react to ����� pulses. Generating a single pulse with time t by the trailing edge of the �����...
  • Page 4 by another time t with the trailing edge. Generating a single pulse 0.5 s after time t with the triggered trailing edge of the ����� signal. Switching off the relay for a specific time t with the rising edge of the �����...
  • Page 5 Setting the rotary timer switch in position: » ON when the power supply is on closes the contact permanently in position 11-12; » OFF when the power supply is on closes the contact permanently in position 11-10. Working time setting Using the time range setting knob T↔, set one of the selected ranges, then using the time setting knob T×, set the selected va- lue on a scale from 1 to 12.
  • Page 6 When the power supply of the relay is switched on, the system does not react to the change of time range and working time settings. Operation with the newly set time range and operating mode takes place after the power supply is switched off and back on.
  • Page 7: Wiring Diagram

    4. Connect the power supply circuit of the receiver in series to terminals 11-12. Wiring diagram - 7 -...
  • Page 8: Description Of Terminals

    Description of terminals - 8 -...
  • Page 9 230 V power supply relay 24 V power supply relay ����� control signal input ����� control signal input ��� contact power input output: break contact (passive) output: closing contact (active) Technical data power supply 195÷253 V AC 21÷27 V AC/DC maximum load current (AC-1) contact separated 1×NO/NC...
  • Page 10: Warranty

    Warranty The F&F products are covered by a warranty of the 24 months from the date of purchase. Effective only with proof of purchase. Contact your dealer or directly with us. CE declaration F&F Filipowski sp. j. declares that the device is in conformity with the essential requirements of The Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC) Directive 2014/30/UE.
