The Select time t parameter defines the preset time for which the input must maintain a certain level for a
command to be executed and for a controller to execute the next step of the program. The time of the delay can
be adjusted from 0.0 (immediate reaction) to 24 hours.
Warning: Execution of the Input A/Input B command:

does not stop the countdown to execute STOP and RESET commands;

does not stop the measuring of the switch on/switch off time of the relay that is set by the Output
command;

does not block the implementation of functions performer by the special inputs A and B.
PCS533 programmable time relay – User manual v. 1.0.1

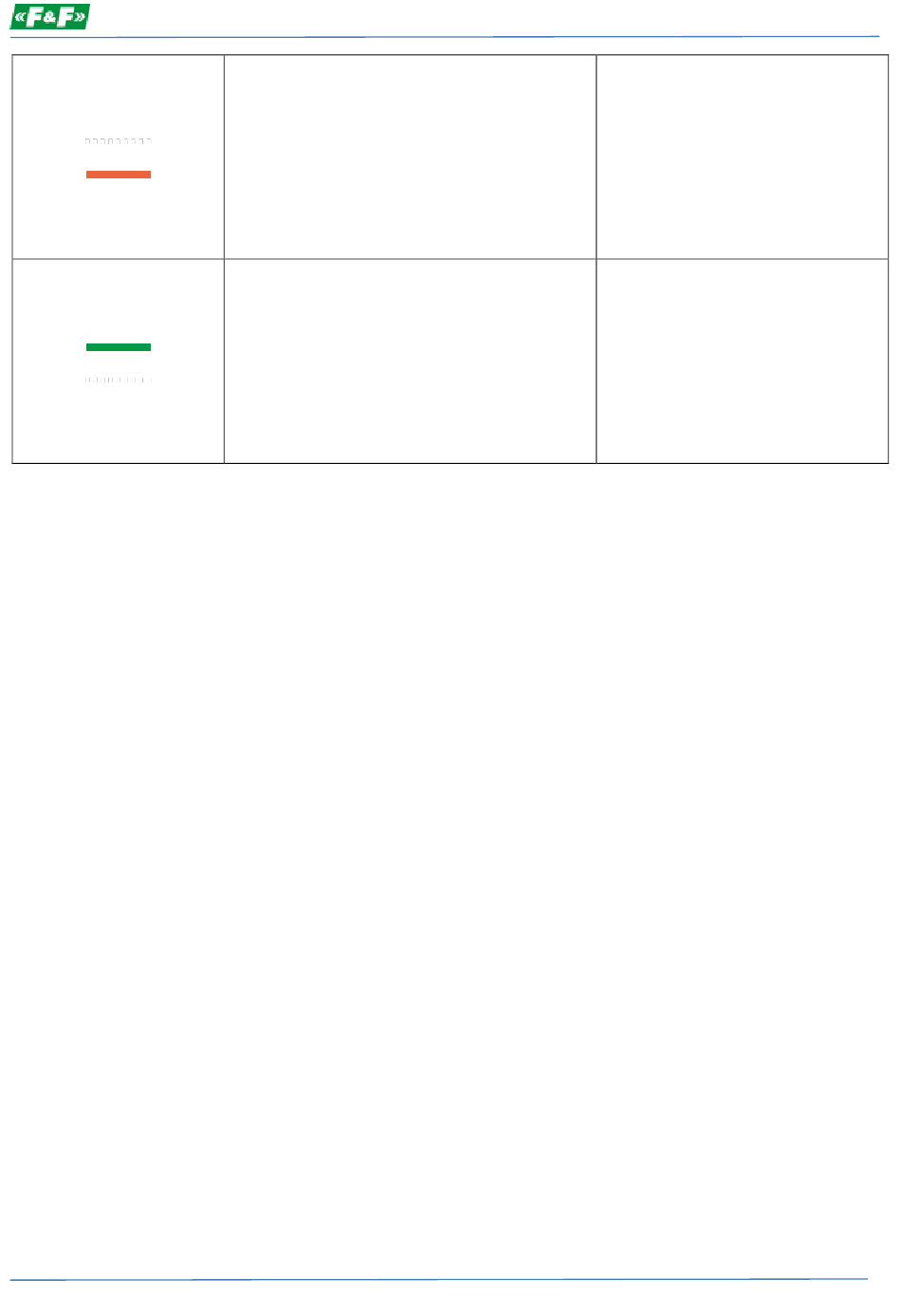

Wait for low level
Wait for high level
If a low level is maintained for a
preset time at the input of the
controller (button released) then
the controller proceeds to execute
the next step of the program.
Warning: Timing starts at the
emergence of the Input
command.
If a high level is maintained for a
preset time at the input of the
controller (button pressed) then the
controller proceeds to execute the
next step of the program.
Warning: Timing starts at the
emergence of the Input
command.
