Output

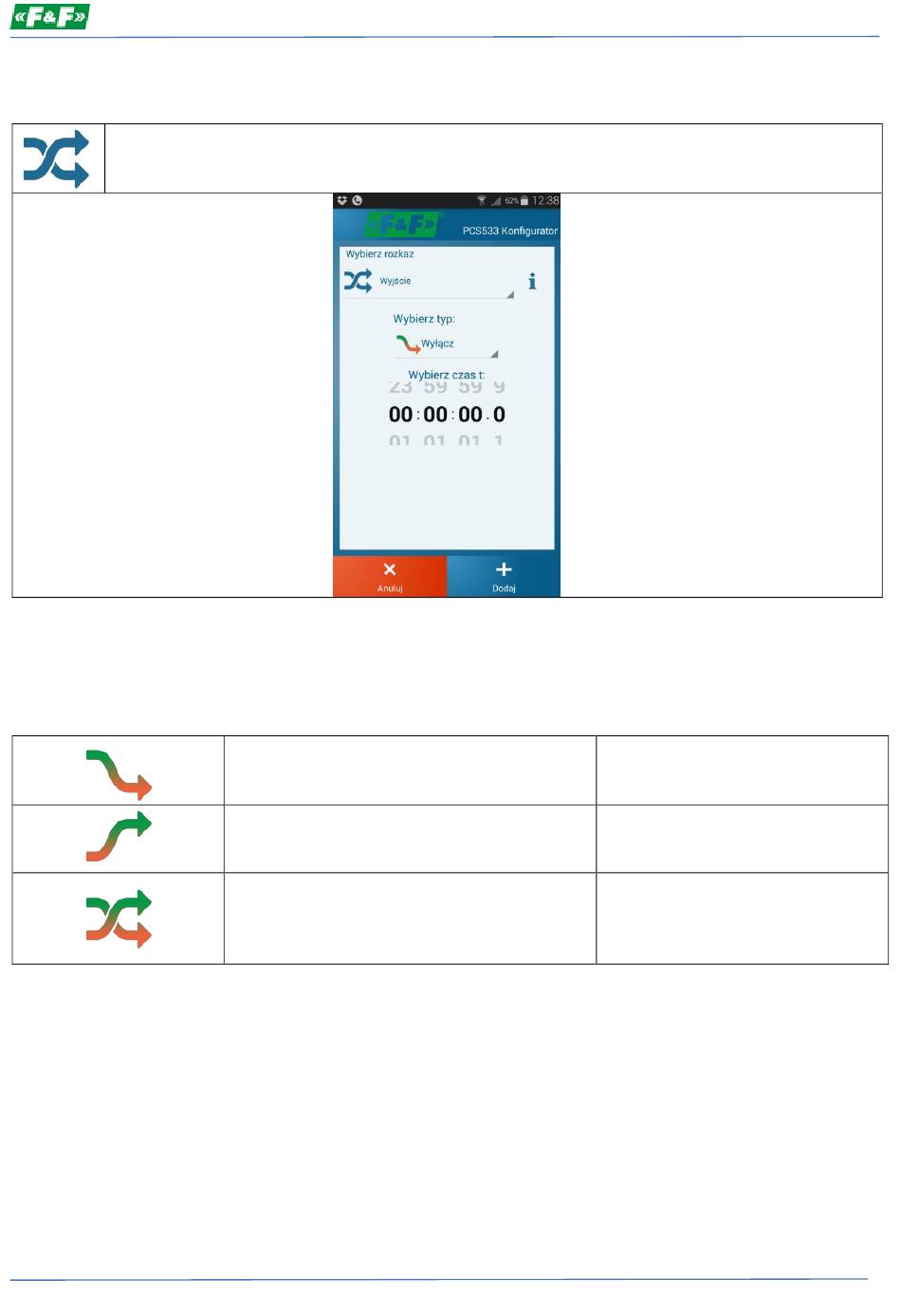

The Output command is designed for direct control of the status of the relay output. The command consists of
two parameters: Select type - in which the action of the relay is set and Select time t - which defines the time of
the switching on/off of the relay.
Select type - selection of the relay action
Select time t
This parameter allows you to activate the relay for a given time regardless of the currently executed program. If
the time is set to zero, the relay will be switched on permanently (until the next Output command appears). If the
time is set to a value greater than zero the relay will be set in a given state, the time countdown will start and the
controller will proceed to process next steps of the program. After a specified time, regardless of the currently
executed step of the program, the state of the relay will be switched to the opposite position.
Execution of the next Output command interrupts the execution of the earlier one - new action of the relay is set
and the countdown from the new command starts.
PCS533 programmable time relay – User manual v. 1.0.1
Switch off
Switch on
Opposite state
Setting the relay in to OFF position
Setting the relay in to ON position
Switching the relay to the opposite
position - from the OFF position to
position ON, and from the ON
position to position OFF.
23
