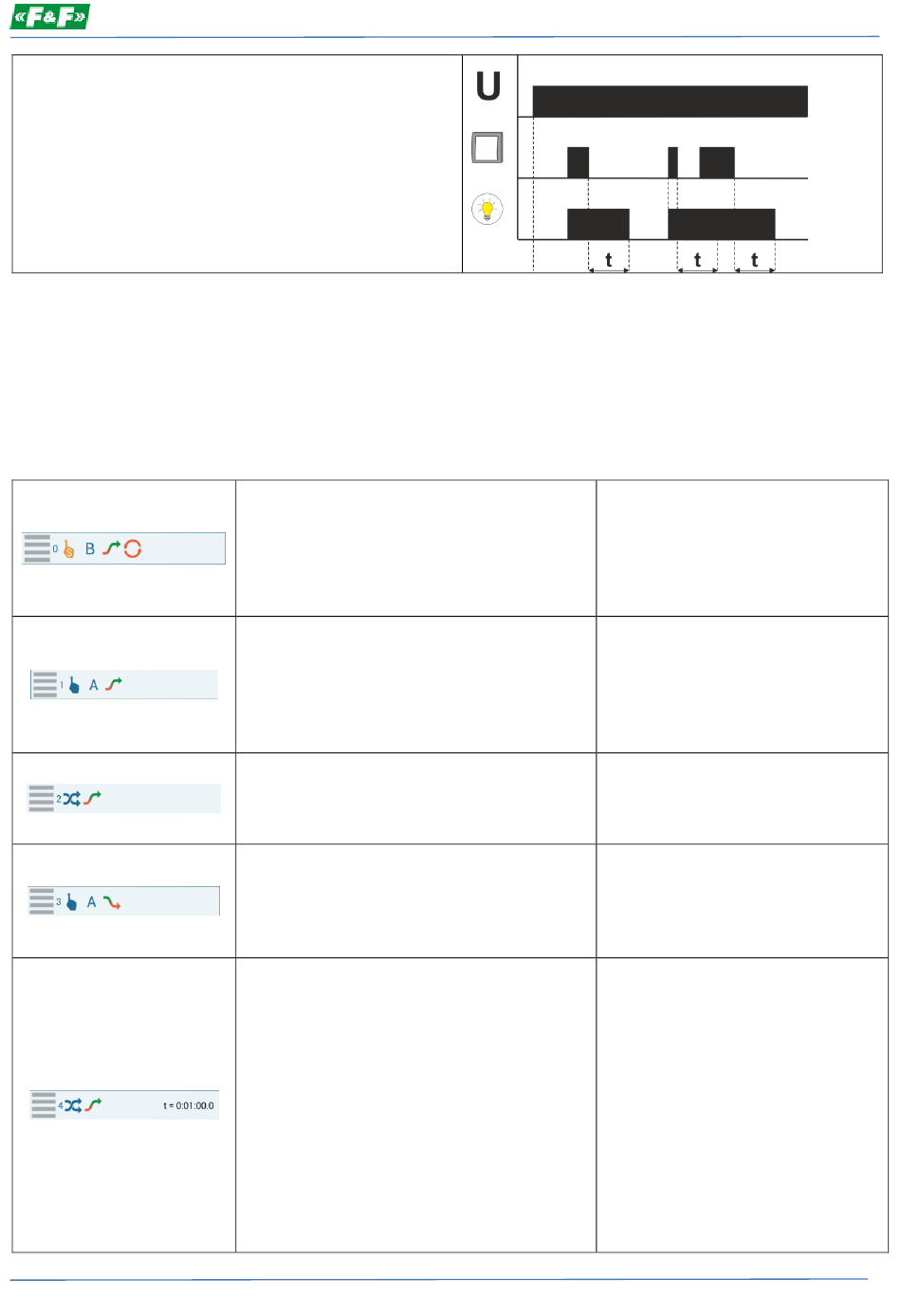

05) Switch-off delay with support function

Pressing the A button will switch on the relay. During the release of the button the countdown of the preset time
starts and then the relay will be switched off. If the button will be pressed again during the countdown the cycle
will start from the beginning. Pressing button B at any time interrupts the sequence and the relay returns to
waiting for a pressing of button A.
PCS533 programmable time relay – User manual v. 1.0.1
Command: Input B – special function
Type: Rising edge
Action: Reset
Time: 0 s
Command: Input A
Type: Wait for a rising edge
Time: 0 s
Command: Output
Type: Turn on
Time: 0 s
Command: Input A
Type: Wait for a trailing edge
Time: 0 s
Command: Output
Type: Turn on
Time: 1 min
The Reset function is assigned to
the input B. Pressing at any time the
button connected to input B will
reset the controller
program will start again from the
beginning.
The relay waits for the pressing of a
button A. The time is set to 0
seconds, so the relay will react
directly to pressing. Up to this point
the execution of the program is
stopped.
Set the relay in the on position.
Time 0 - the relay will remain on
until the next Output command will
change it.
The relay waits for the releasing of a
button A. Up to this point the
execution of the program is stopped
and the relay that was switched-on
in the previous step will remain on.
Set the relay in the on position for 1
minute.
Warning: Setting the time in this
step does not stop the
execution of the program,
which means that the
program will return to the
next waiting for a pressing
of a button A. If the
button will not be pressed
during the preset time the
relay will switch off.
and the
