PCA-512
Time relay
with delayed activation
Do not dispose of this device in the trash along with other waste!
According to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collection, as well as to store the occasion of
the purchase of new equipment (in accordance with the principle of old-for-new, regard-
less of brand). Electro thrown in the trash or abandoned in nature, pose a threat to the
environment and human health.
Purpose
The PCA-512 time relay is used for time control in industrial
and home automation systems (such as : ventilation, heating,
lighting, signaling, etc.).
Functioning
Operating mode: OFF delay
Until the relay is activated, the contact remains in position 11-
10. When the supply voltage is applied (the green LED U is on),
the contact is switched to position 11-12 and the set operating
time counts down (the red LED
sed, the contact returns to position 11-10. The relay can be ope-
rated again after the power supply has been disconnected and
switched on again.
F&F Filipowski sp. j.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
is on). After the time has elap-
Advertisement
Related Manuals for F&F PCA-512
Summary of Contents for F&F PCA-512

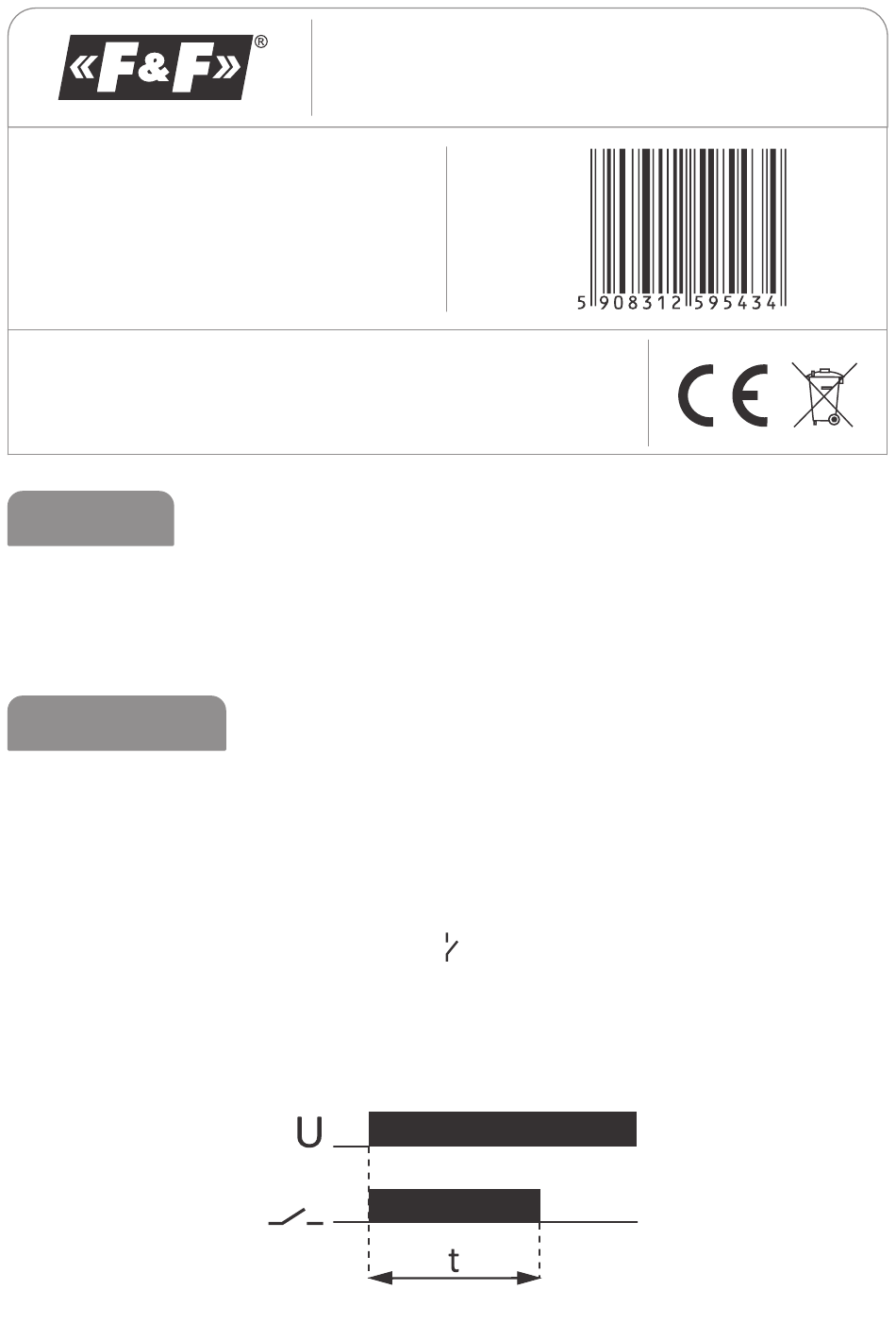

- Page 1 Electro thrown in the trash or abandoned in nature, pose a threat to the environment and human health. Purpose The PCA-512 time relay is used for time control in industrial and home automation systems (such as : ventilation, heating, lighting, signaling, etc.).
-
Page 2: Time Ranges
Working time setting Using the time range setting knob T↔, set one of the selected ranges, then using the time setting knob T×, set the selected va- lue on a scale from 1 to 12. The product of these values is equal to the operating time (for example: 1 m ×... - Page 3 When the power supply of the relay is switched on, the system does not react to the change of working time settings. Operation with the newly set time range and operating mode takes place after the power supply is switched off and back on.
-
Page 4: Wiring Diagram
Wiring diagram 1 2 3 T× 10s 1m 0,1s T↔ PCA-512 C C O O M M N N O O 10 11 12 N N C C 230 V verison: 1 (N), 3 (L) 24 V verison: 1 (~/–), 3 (~/+) - Page 5 Technical data power supply 195÷253 V AC maximum load current (AC-1) contact separated 1×NO/NC working time (adjustable) 0.1 s÷576 h activation delay <50 ms power supply indication green LED contacts state indication red LED power consumption 0.8 W terminal 2.5 mm² screw terminals tightening torque 0.4 Nm working temperature...
-
Page 6: Warranty
Warranty The F&F products are covered by a warranty of the 24 months from the date of purchase. Effective only with proof of purchase. Contact your dealer or directly with us. CE declaration F&F Filipowski sp. j. declares that the device is in conformity with the essential requirements of The Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC) Directive 2014/30/UE.
