F&F PCS-517.2 Manual

Konstantynowska 79/81 95-200 Pabianice
tel/fax +48 42 2152383; 2270971 POLAND
http:/www.fif.com.pl e-mail: fif@fif.com.pl
TIMING RELAY
18 functions
WARRANTY. The F&F products are
covered by the 24 months warranty from
date of purchase. Effective only with
proof of purchase. Contact your dealer or
directly from us. For more information on
the procedures for filing complaints on
www.fif.com.pl/reklamacje
5 9 0 8 3 1 2 5 9 1 6 2 7
Do not dispose of this device in the trash along with other waste! According
to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collection, as well as to store the
occasion of the purchase of new equipment (in accordance with the principle
of old-for-new, regardless of brand). Electro thrown in the trash or abandoned
in nature, pose a threat to the environment and human health.
PURPOSE
The timing relay PCS-517 is used to temporarily control of systems in
industrial and home automation. With the powerful features of work,
one-and two-time contained in the memory of the processor, allows
for the elimination of complex and costly control systems based on a
compilation of many channels in normal time. Unlike potentiometers
relays allow very precise setting time of enclose, for example, 3h .-
47min - 19sec.

FUNCTIONING

The relay implement one of the set work functions accordance
with to desired times. Positions of joint indicator shows joint
status: ON - enclosed (position 1-5); OFF - disconnected (position
1-6). The display shows the currently measured time t1 (ş1
indicator on the display) or the time t2 (ş2 indicator on the
display) from the upper to zero.
Functions 1÷5 are activated by power supply. After completion of
the function, on the display appears inscription END (end).
Next realization of function will start when you turn off and re-
connecting voltage or "reboot" the CPU. For these functions indicator
of status signal START display ON symbol.
Functions 6÷17 are activated by control signal START. After enclosed
power supplay, the relay is ready to implementation of work function.
O n the display appears inscription ON.
After giving of the START signal relay launching function. After the
completion of returns to standby mode (waiting for another signal to
START). For these functions giving of the START signal is indicated on
rate by the symbol signal ON. No signal is indicated by the symbol OFF.

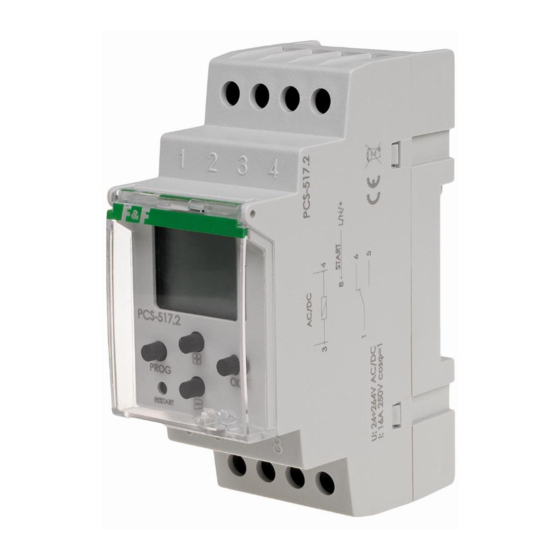

DESCRIPTION OF DISPLAY AND CONTROL PANEL
F&F Filipowski sp. j.
time/work function
PCS-517.2
reprt of time t1

BUTTON FUNCTIONS

PROG:
- pass to PROGRAMMING mode (hold >3sec).
- out from PROGRAMMING mode
OK:
- entering of settings and pass to next position of settings
- preview of chosen function during of realization it
+ :
- change statue of setting by +1 in chosen PROGRAMMING position
(holding a button cause continuous change by +1 in loop)
- :
-change statue of setting by - 1 in chosen PROGRAMMING position
(holding a button cause continuous change by - 1 in loop)
RESTART:
-"reset" of processor -
work functions of the relay. Do not delete the settings of function and
times
+ and - ("hard" reset):
-delete (reset) of all times of all work finctions from memory (press
>3sec two button together). Timer automaticly set P00 function
(Inactivity statue)
Function 18 - is activated by control signalSTART. After enclosed the
power supply relay is in stanby mode to implementation of work
function. On the display appears inscription ON. After gave START
signal relay will start implementation of function. On the display
appears inscription
subsequent signals START. Next implementation of function will start
when you turn off and re-connecting voltage or "reboot" the CPU. For
this function giving a signal START is indicated by ON symbol on the
rate of control signal. No signal is indicated by the symbol OFF.
ATTENTION!
- To turn off the power during the performance of the work functions
cause to stop the relay. Joint will remain in a position to disconnect
(pos.1-6). Re-enclose the power
beginning.
- Pressing the RESTART button during the implementation of the work
function cause start the functions from the beginning.

DESCRIPTION OF WORK FUNCTIONS

After give the power supply the joint stay in 1-6 position and start count
of set of lagged time. After counted time t, the joint is reconnect in the
position 1-5 (enclose). The next implementation of work mode is
possible after disconnected a the power supply and its re-enclosed.
report of
Programming function
+
PROG - OK
reprt of joint
RESET
statue
necessary in the event of suspension of
END (end). The relay does not respond to
will start function from the
inactivity statue
Un
t
report of control
signal statue
START
reprt of time t2
