Program editor

Program editor is the main view of the PCS533 Configurator app and it is designed for the creating and editing of
the program of the controller operation.
If any program is loaded to the application at the opening of the editor window, a message will be displayed with a
question what to do with the previous entry (
Start over - Continue
Fig. 9
Previous entry was interrupted.
Continue or start over?
Start over - Continue
Selecting Start over option removes the previous entry and opens new configuration. Continue
option stops the execution of the command and leaves the previous configuration.
Example screen of the program editor is shown in Fig. 10. It consists of the following elements:

Header at the top of the screen If the program is linked with the particular controller, the DEV parameter
displays the identifier of the device type (PCS533) and the ID parameter - the unique identification
number of the controller.
By default the identifier of the clock is presented as a serial number of the controller. It is also
possible to give the device other name. This is done using the button with a pencil symbol that
is located on the right side of the header. After entering your own name, it will appear
whenever you connect with a given controller.

Workspace in the middle part of the screen with a list of commands to perform.
PCS533 programmable time relay – User manual v. 1.0.1

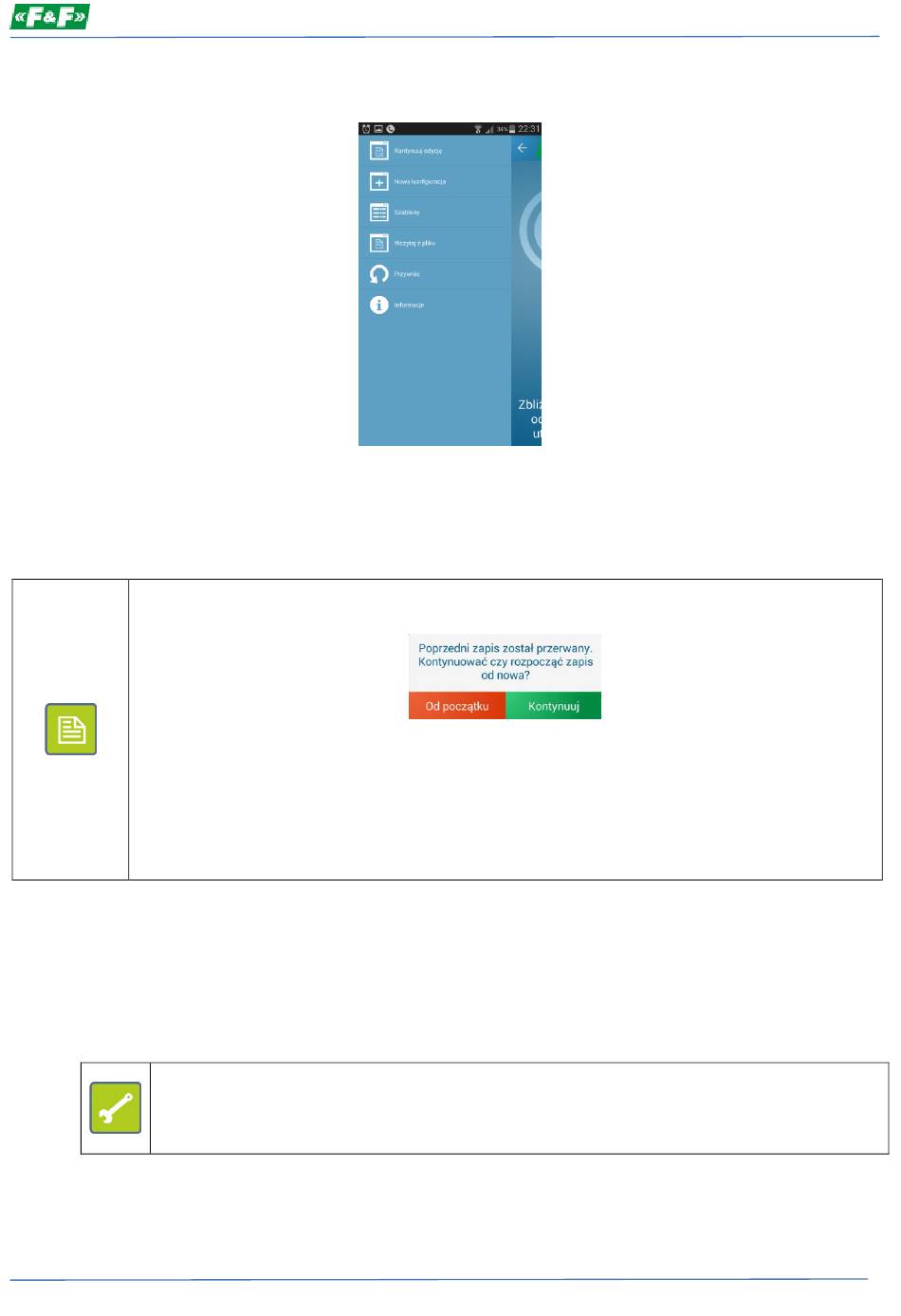

Fig. 8) Main menu
Continue or start over?
Fig. 9) Configuration override
