PCS533 programmable time relay – User manual v. 1.0.1

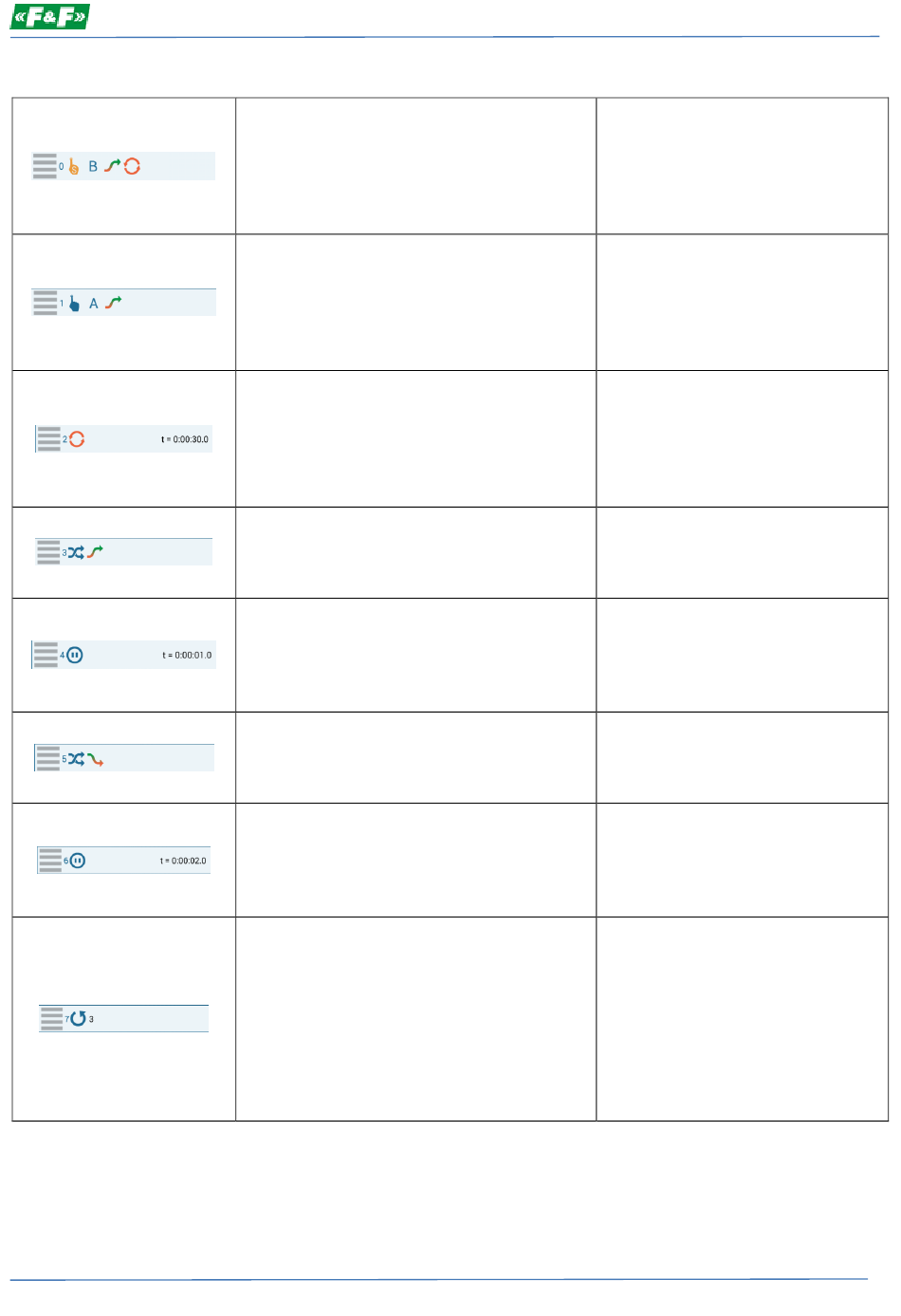

Command: Input B – special function
Type: Rising edge
Action: Reset
Time: 0 s
Command: Input A
Type: Wait for a rising edge
Time: 0 s
Command: Reset
Time: 30 s
Command: Output
Type: Turn on
Time: 0 s
Command: Pause
Time: 1 s
Command: Output
Type: Turn off
Time: 0 s
Command: Pause
Time: 2 s
Command: Return to
Select step: 3
Number of repetitions: 0
The Reset function is assigned to
the input B. Pressing at any time the
button connected to input B will
reset the controller
program will start again from the
beginning.
The relay waits for the pressing of a
button A. The time is set to 0
seconds, so the relay will react
directly to pressing. Up to this point
the execution of the program is
stopped.
Setting the Reset command causes
that after 30 seconds (time t
executing that command
controller will be reset and the
execution of the program will start
from the beginning.
Set the relay in the on position.
Time 0 - the relay will remain on
until the next Output command will
change it.
Pause t suspends the execution of
1
the rest of the program for a preset
time (default - 1 s). After this time
the next step of the program is
executed.
Set the relay in the off position.
Time 0 - the relay will remain off
until the next Output command will
change it.
Pause t suspends the execution of
2
the rest of the program for a preset
time (default - 2 s). After this time
the next step of the program is
executed.
Execution of the
transferred to step 3, which means
that the next cycle of the switching
on of the relay is starting. The
number of repetitions is set to 0
which means that the cycle will
repeat itself until elapses the time
of the reset t that was defined in
3
step 2.
and the
) from
3
the
program is
