home and industrial automation

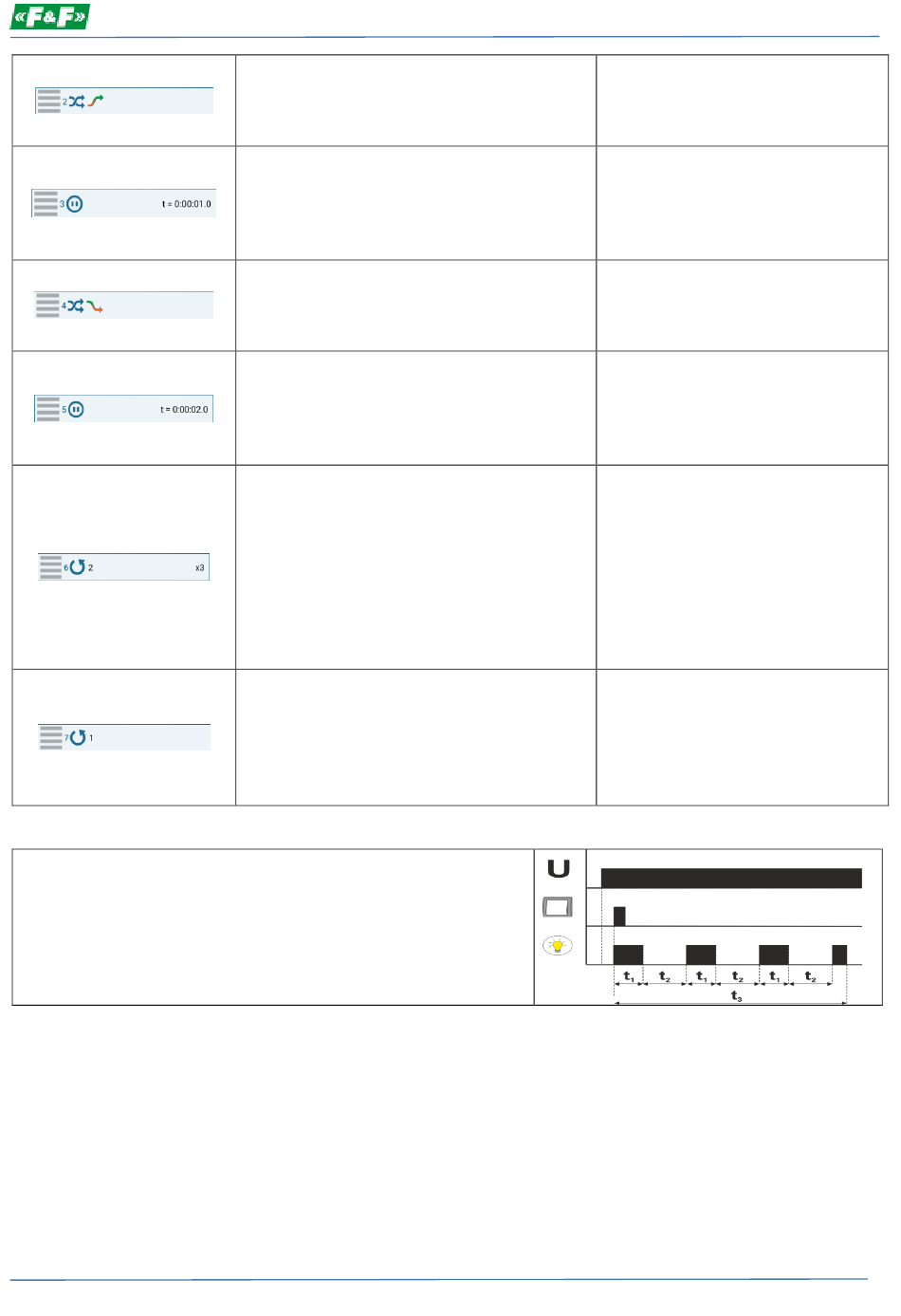

11) Generate pulses for a preset period of time
Pressing the A button (rising edge) generates the chain of pulses where the relay is on for the time t
the time t
This whole cycle is repeated for the time t
2.
for the next pressing of the button A. Pressing the B button will reset the controller and start the execution of the
program from the beginning.
PCS533 programmable time relay – User manual v. 1.0.1
Command: Output
Type: Turn on
Time: 0 s
Command: Pause
Time: 1 s
Command: Output
Type: Turn off
Time: 0 s
Command: Pause
Time: 2 s
Command: Return to
Select step: 2
Number of repetitions: 3
Command: Return to
Select step: 1
Number of repetitions: 0
and then the program starts from the beginning and waits
3
Set the relay in the on position.
Time 0 - the relay will remain on
until the next Output command will
change it.
Pause t
suspends the execution of
1
the rest of the program for a preset
time (default - 1 s). After this time
the next step of the program is
executed.
Set the relay in the off position.
Time 0 - the relay will remain off
until the next Output command will
change it.
Pause t
suspends the execution of
2
the rest of the program for a preset
time (default - 2 s). After this time
the next step of the program is
executed.
Execution
of
the
transferred to step 2, which means
that the next cycle of the switching
on of the relay is starting. The
number of repetitions is set to 3
which means that the relay will
switch on and off three times and
then the program will proceed to
the next step.
Execution
of
the
transferred to step 1 - waiting for
the pressing of a button A. The
number of repetitions is set to 0
which means that this cycle can be
repeated indefinitely.
program
is
program
is
and off for
1
41
