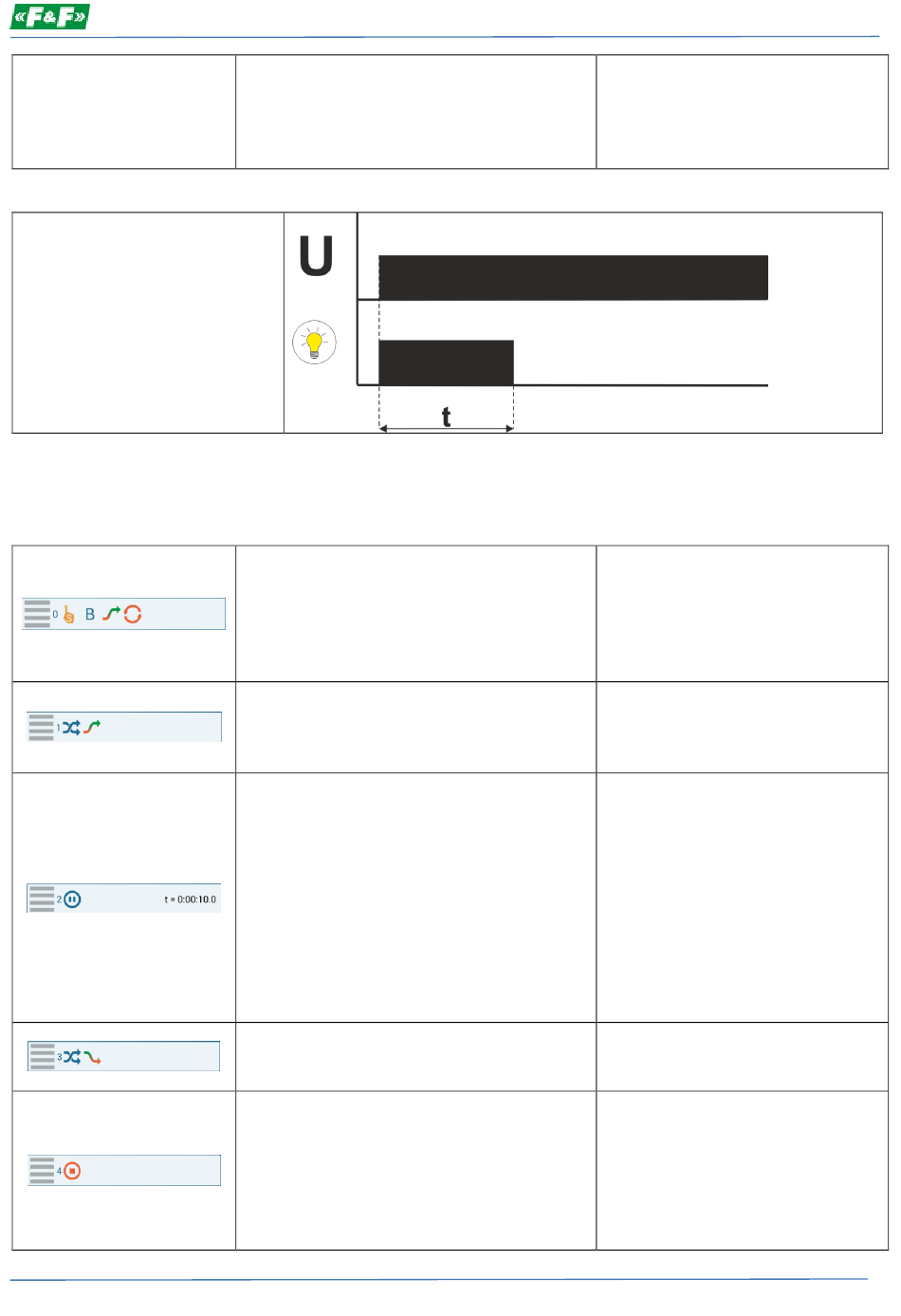

02) Delayed switching off

After turning on the power supply the controller switches on the relay. When the preset time t will elapse the
relay will be switched off and the execution of the program will stop. Pressing button B resets the program.
PCS533 programmable time relay – User manual v. 1.0.1
Command: Input B – special function
Type: Rising edge
Action: Reset
Time: 0 s
Command: Output
Type: Turn on
Time: 0 s
Command: Pause
Time: 10 s
Command: Output
Type: Turn off
Time: 0 s
Command: Stop
Time: 0 s
controller and start the execution of
the program from the beginning.
Another way of resetting the
controller is to turn off the power
supply.
The Reset function is assigned to
the input B. Pressing at any time the
button connected to input B will
reset the controller
program will start again from the
beginning.
Set the relay in the on position.
Time 0 - the relay will remain on
until the next Output command will
change it
Pause suspends the execution of
the rest of the program for a preset
time (default - 10 s). After this time
the next step of the program is
executed.
Warning: The time that is set here
determines the delay of
the switching off of the
relay. If necessary, set the
time to the desired value.
Set the relay in the off position.
Time is set to zero so the relay will
remain off.
Stop the execution of the program.
The relay stays off because of the
command from the previous step.
Special function Reset that is
assigned to button B is still active.
Pressing the B button will reset the
controller and start the execution of
and the
