F&F 5908312592389 Quick Start Manual

PK-3P
Electromagnetic
Do not dispose of this device in the trash along with other waste! According
to the Law on Waste, electro coming from households free of charge and
can give any amount to up to that end point of collection, as well as to sto-
re the occasion of the purchase of new equipment (in accordance with the
principle of old-for-new, regardless of brand). Electro thrown in the trash or
abandoned in nature, pose a threat to the environment and human health.
Purpose

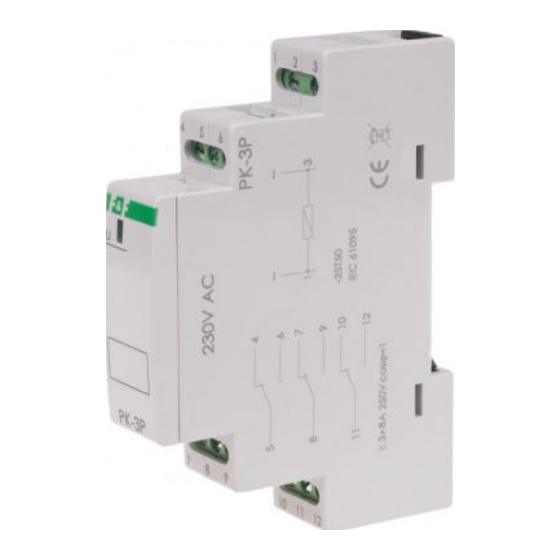

Electromagnetic relay in single-module housing for direct moun-
ting on TH-35 rail.
Functioning
Applying the supply voltage to the relay coil will switch the con-
tacts to positions 5-6, 8-9 and 11-12. This state is indicated by a
green LED. After a power failure, the contacts return to positions
5-4, 8-7 and 11-10.
Assembly
1. Switch off the power supply.
2. Mount the relay on the rail in the distribution box.
3. Connect the power supply to terminals 1-3. For AC voltage: in
any order, for DC voltage 1(+) and 3(−).
4. Connect the power supply circuit of the controlled receiver via
contacts 5-6, 8-9 and 11-12 (NO contacts).
F&F Filipowski sp. j.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
110 V
relay
