The Return to command allows you to move the point of program execution to previously set step, thanks to
which it is possible to cyclically repeat groups of commands.
This command has two parameters:

Number of a step - a step to which the execution of the program will be taken back;

Number of repetitions - parameter that indicates how many times the Repeat to command will be
repeated. If the number of repetitions will be set to zero then the command will be repeated unlimited
number of times. A number greater than zero indicates how many times the given step will be repeated.
PCS533 programmable time relay – User manual v. 1.0.1

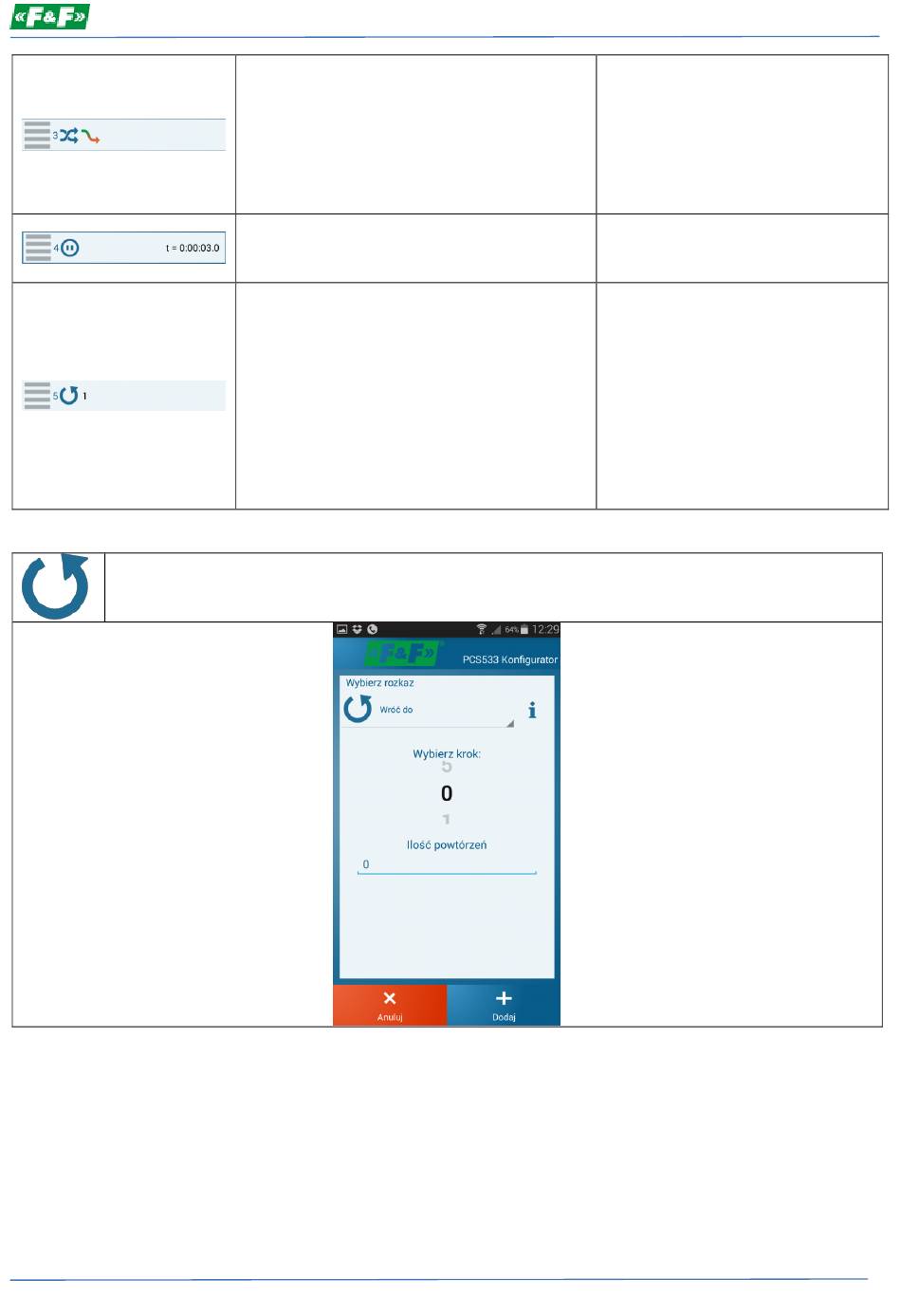

Command: Output
Mode: Off
Time: 0 s
Command: Pause
Time: 3 s
Command: Return to
Step: 1
Number of repetitions: 0
After the execution of the previous
Pause command
command will be processed that
sets the relay in OFF state. Time is
set to 0 which means the relay will
stay on until the next Output
command will appear.
Stop the execution of the program
and hold the relay in OFF state for 3
seconds.
After the three seconds delay the
next Return to command will undo
the execution of the program to
step 1 (reactivation
relay).The number of repetitions in
Return to command is set to 0
which means that the sequence of
commands 1 - 4 will be cyclically
repeated until the power supply is
off.
the Output
of the
