IV. ASSEMBLY INSTRUCTIONS
NOTE:
1. The gasket shall be placed at both ends of the bolts (against the bolt head and nuts), unless otherwise stated.
2. Preliminary assembly is hand tightening of all bolts and nuts and hand tightening with the wrench for complete assembly.
3. Some spare parts have been pre-assembled by the factory.
4. It is strongly recommended this machine to be assembled by two or more people to avoid possible injury

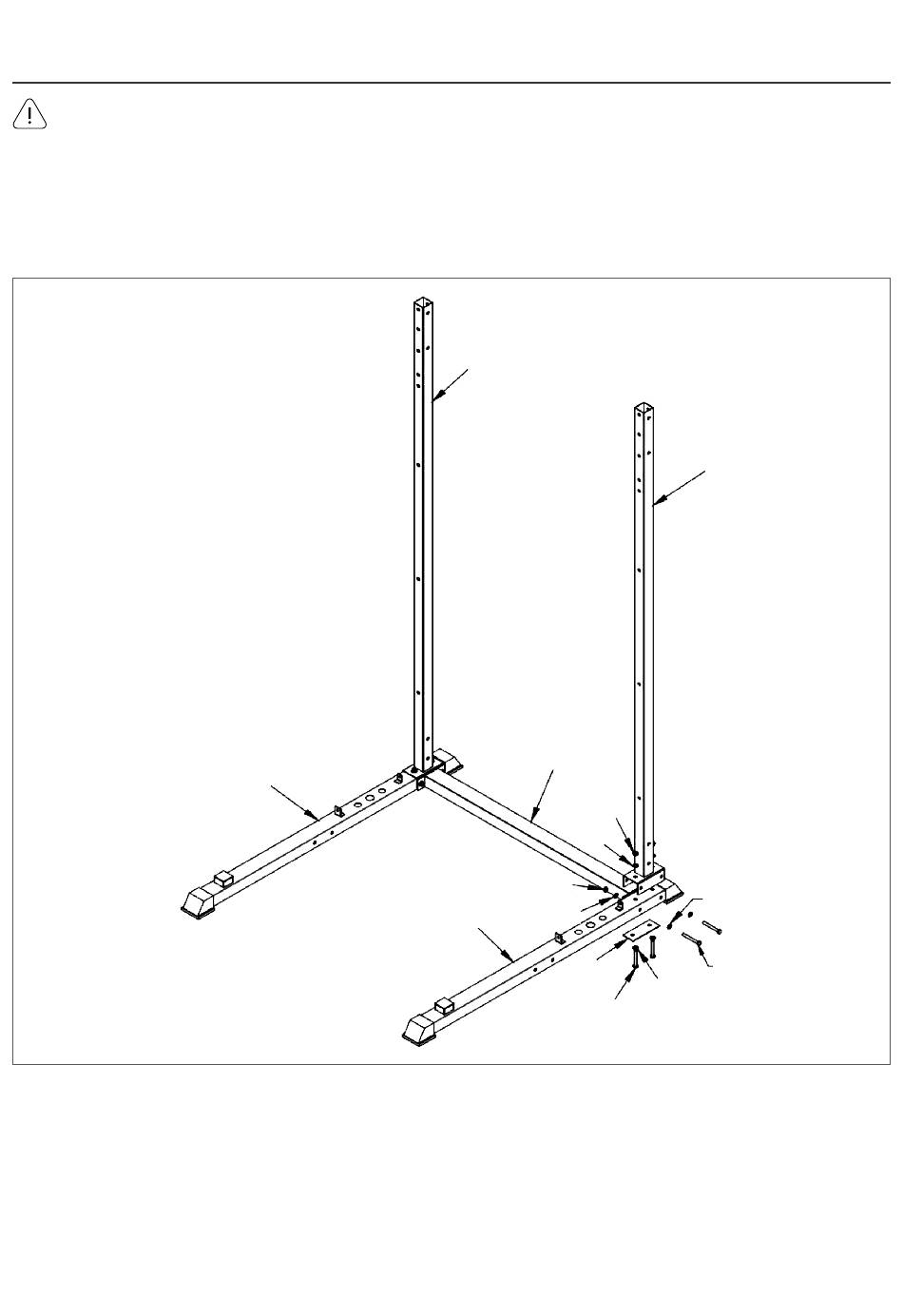

STEP 1
1. As shown, pre-install the screen connector (48#), bolts (66#) and pads (74#) under (4#).
2. Place (4#) on both sides of (5#). Place (1#) opposite holes on (4#).
3. Secure with bolts (63#), gaskets (74#), and nuts (71#).
4. Repeat for the other side.
4
1
5
71
74
71
74
4
48
66

ASSEMBLY INSTRUCTIONS |

1
74
63
75
9
