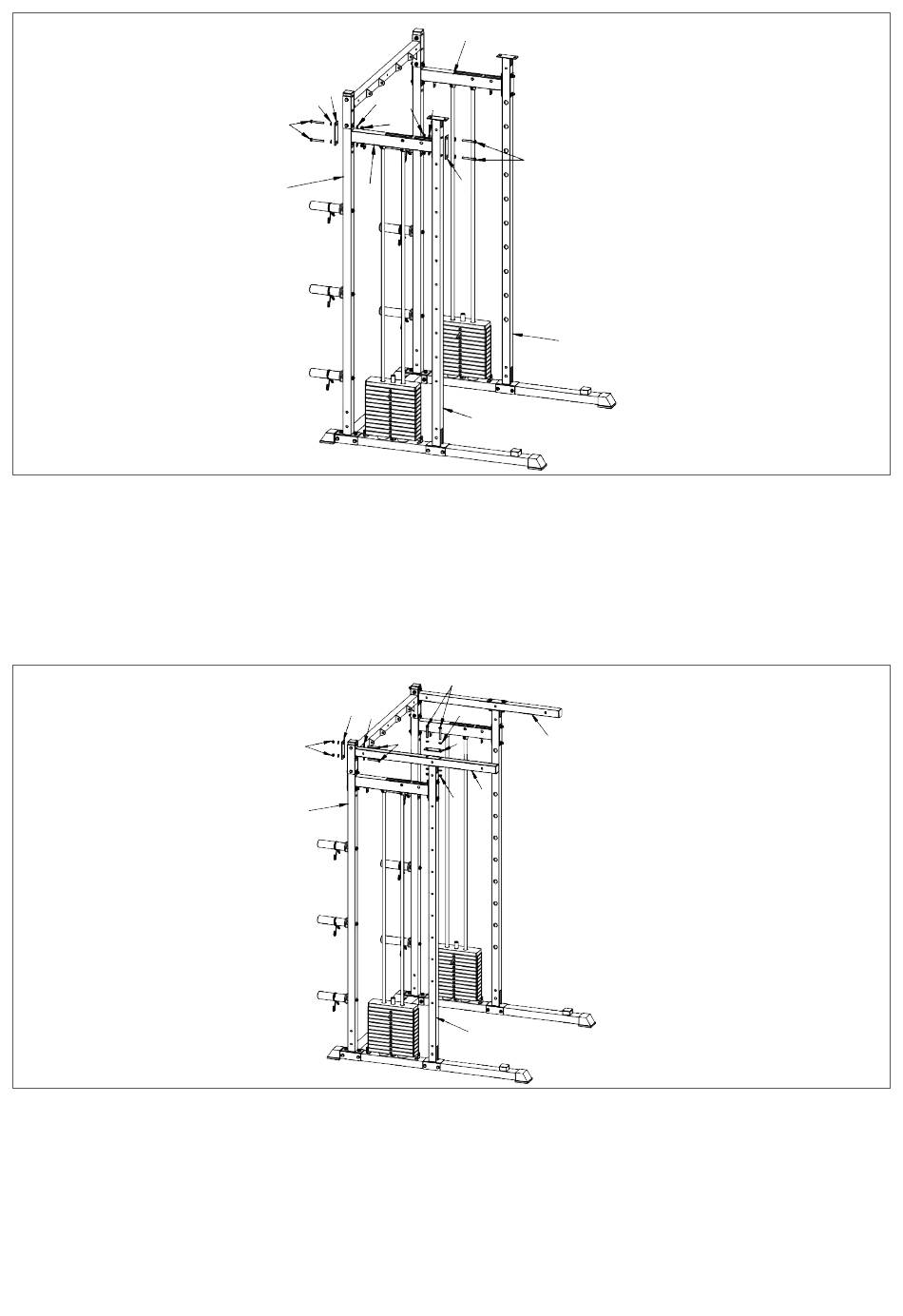

STEP 6
1. Place counterweight loading (10#), flat connection plate (49#) on both sides of (1 #) and (2#) as
shown. Fix with bolt (66#), gasket (74#), and nut (71#).
2. Repeat on the other side.
NOTE: Align (7 #) to hole (10 #) and tighten the (10 #) pre-loaded nut.
STEP 7
1. Align the holes on (9#) and place the panels (48#) on the side of (1#) and (9#). Then fix with bolts
(66#), gaskets (74#) and nuts (71#).
2. Repeat for the other side.
49
74 74
74
71
71
66
1
10
48
74
66
71
1
10
66
49
2
2
66
74
9
48
71 9
2
ASSEMBLY INSTRUCTIONS | 13
