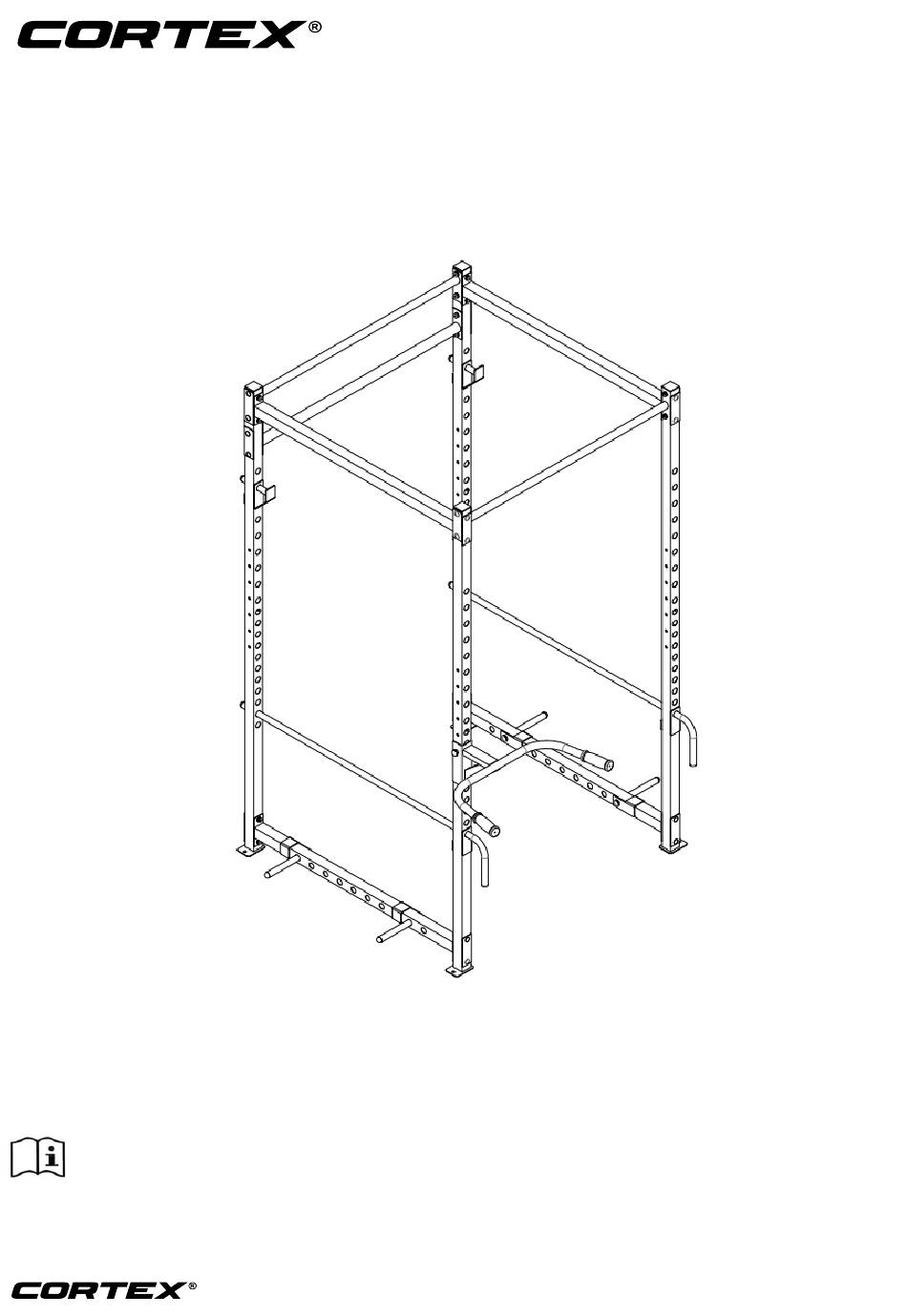

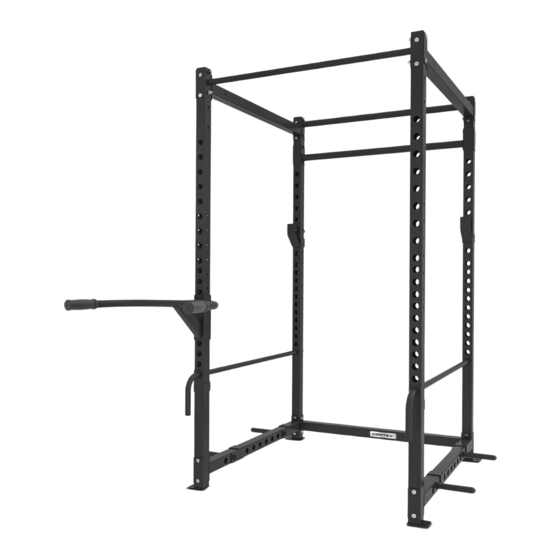

- Page 1 PR-3 HALF RACK OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future PR-3 POWER RACK...
- Page 2 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS PARTS LIST ASSEMBLY INSTRUCTIONS WARRANTY PR-3 POWER RACK...
-
Page 3: Important Safety Instructions
Do not place any sharp objects around the machine. Disabled person should not use the machine without a qualified person or physician in attendance. Never operate the machine if the machine is not functioning properly. A spotter is recommended during exercise. PR-3 POWER RACK... -
Page 4: Parts List
Connection Tube Pulling Up Bar Φ32 Upper welding Pulling Up Bar Φ32 Center welding Dip Frame Plate Rest Bar Support Bar Rest Strengthen Board 110mm Pulling Up Bar Φ42 Carriage Bolts M10x70mm Washer Φ10 Nuts Vertical Tube B PR-3 POWER RACK... -
Page 5: Assembly Instructions
Tube B (#16) to the Connection Tube (#2) and (#3). Secure it with: - 8 Carriage Bolts M10x70mm (#13) - 8 Washers Φ10 (#14) - 8 Nuts M10 (#15) - 4 Strengthen Board (#11) 2. Install the other side the same way. PR-3 POWER RACK... - Page 6 1. Follow the chart, Attach the two sides with Pulling Up BarΦ32 Upper welding (#4), Pulling Up BarΦ32 Center welding and (#5) and Pulling Up Bar Φ42(#12). Secure it with: - 12 Carriage Bolts M10x70mm (#13) - 12 Washers Φ10 (#14) - 12 Nuts M10 (#15) - 6 Strengthen Board (#11) PR-3 POWER RACK...
- Page 7 STEP 3 1. Plug the Dip Frame (#6) into the Vertical Tube, locked with Pin (#10). 2. Plug the 4xPlate Rest (#7) into the Vertical Frame. PR-3 POWER RACK...
- Page 8 STEP 4 1. Plug the 2xBar Rest (#9) into the Vertical Frame. 2. Plug the 2xBar Support (#8) into the Vertical Frame. PR-3 POWER RACK...
- Page 9 For all warranty or support related enquiries an email must be sent to lodge a support case in our system. Head Office and Customer Service: Global Fitness and Leisure Pty Ltd 17 Fordson Rd Campbellfield VIC, 3061 Australia PH: 03 9357 2166 PR-3 POWER RACK...
