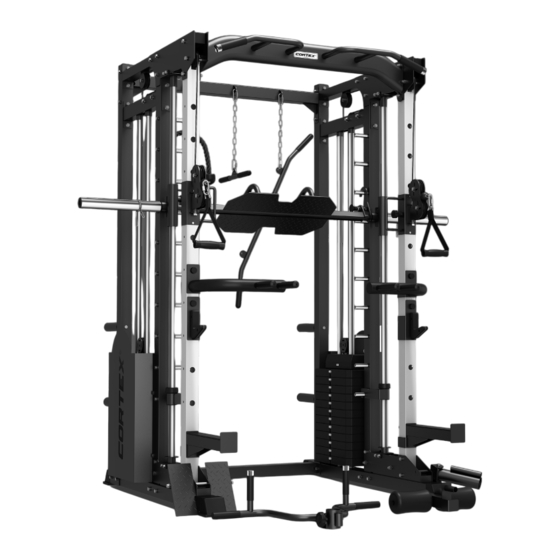

Cortex SM25 User Manual

Multi gym dual stack functional trainer, smith machine, half rack
Hide thumbs Also See for SM25:

Advertisement

Quick Links

Download this manual
SM25 Multi Gym
(Dual Stack Functional Trainer,
Smith Machine, Half Rack)
Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
NOTE:
This manual may be subject to updates or changes. Up to date manuals are available through our
website at www.lifespanfitness.com.au
USER MANUAL
Find the
Digital Manual
Online

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cortex SM25

Summary of Contents for Cortex SM25

  • Page 1 SM25 Multi Gym (Dual Stack Functional Trainer, Smith Machine, Half Rack) USER MANUAL Find the Digital Manual Online Product may vary slightly from the item pictured due to model upgrades. Read all instructions carefully before using this product. Retain this owner’s manual for future reference.
  • Page 2 TABLE OF CONTENTS Important Safety Instructions ....... 03 II. Care Instructions ..........04 III.
  • Page 3 I. IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all instructions before using this machine. To ensure your safety, read the following precautions before using this product 1. Please read, study and understand the instructions and all warning labels before use. (It is recommended to be familiar with the normal operation and use methods of the device before using this product.
  • Page 4 II. CARE INSTRUCTIONS • Lubricate moving joints with silicon spray after periods of usage. • Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects. • The machine can be kept clean by wiping it down using dry cloth. •...
  • Page 5 III. PARTS LIST 1. Base 2. Rear Cross Base 3. Rear Beam 4. Back Upright (Left & Right) (Left) 2pcs 5. Back Upright 6. Side Middle Beam 7. Middle Upright 8. Middle Upright (Right) (Left & Right) (Left) (Left) 2pcs 9.
  • Page 6 29. Smith Catch (Right) 30. Pulley Slider 31. Pulley Swivel 32. Hard Pull Handle 2pcs 2pcs 33. Foot board 34. Foot board Shaft 35. Chin Up Bar (Left) 36. Chin Up Bar (Right) 2pcs 37. Safety Catch 38. Safety Catch 39.
  • Page 7 57. Weight Stack Pin 58. Chain 59. Carabiner 60. Landmine Knob 3pcs 8pcs 2pcs 2pcs 61. D-Handle Leg Holder 2pcs 70. M10 x 95mm Bolt 71. M10 x 90mm Bolt 73. M10 x 75mm Bolt 60. M10 x 70mm Bolt 4pcs 5pcs 10pcs...
  • Page 8 IV. ASSEMBLY INSTRUCTIONS ATTENTION: 1. The gasket shall be placed at both ends of the bolts (against the bolt head and nuts), unless otherwise stated. 2. Some spare parts have been pre-assembled. 3. It is strongly recommended this machine to be assembled by two or more people to avoid possible injury. 4.
  • Page 9 Do not tighten all bolts until all installations are complete. STEP 2 1. Add 4x shock pads (47) and 4x weight stack rods (16) to part (1) as pictured. ASSEMBLY INSTRUCTIONS |...
  • Page 10 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 3 Note: the 2x bolt hole part sticking out of parts (7) and (8) should face the weight stack rod. It will be used to install the weight covers at a later step.
  • Page 11 Do not tighten all bolts until all installations are complete. Weight Plate Hole Direction STEP 4 1. Place the 12x weight stacks (43) and the small weight stack (42) into the weight rods (16). Important: The concave hole on the weight stacks MUST be at the bottom facing downwards. See the im- age for Weight Plate Hole Direction.
  • Page 12 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 5 1. Use 2x bolts (74), 4x washers (85) and 2x nuts (83) to secure iron plate (24) to part (5) and part (3). Repeat step for the other side for part (4).
  • Page 13 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 6 Attaching the weight storage posts: Attaching the Olympic barbell holder: 1. Use 1x bolt (79) and 1x washer (85) to secure 1.
  • Page 14 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 7 1. Align part (6) to the weight stack rods so that the rods slot into part (6) and secure with the pre- installed bolt on part (6).
  • Page 15 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 8 1. Secure the 2x top beams (11) to the back posts (4 & 5) using 4x bolts (74), 8x washers (85), 2x connecting plates (22) and 4x nuts (83).
  • Page 16 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 9 1. Attach the pegs (10) to parts (7) and (8) using the pre-installed bolts on part (10). 2. Attach the top covers (18) to part (11) using 3x bolts (74), 6x washers (85) and 3x bolts (83). Repeat for other side.
  • Page 17 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 10 1. Attach part (91) to (90) using 1x bolt (79) and 1x washer (85). Repeat for the other side. 2.
  • Page 18 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 11 1. Place the assembled smith bar to the frame as pictured and secure to the top and bottom covers using 8x bolts (81), 16x bolts (86) and 8x bolts (84).
  • Page 19 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 12 1. Place the 2x pulley slider (30) (one each) on the 2x part (9) and locking them with the lock pins (63, pre-installed on part 30), as pictured.
  • Page 20 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 13 1. Use 4x bolts (73), 8x washer (85) and 4x nuts (83) to secure the 2x parts (9) to the top covers and to part (12).
  • Page 21 Do not tighten all bolts until all installations are complete. NOTE: Some hardware are Pre-installed, refer to installation diagram. Washers must go on both sides. After the bolt and before the nut. STEP 14 Follow the arrow for the direction of the cables and install with the parts numbers mentioned in the diagrams. Important: - Be sure to install the wire rope before installing the pulley.
  • Page 22 Do not tighten all bolts until all installations are complete. STEP 15 1. Attach Olympic sleeves (39) to the installed smith bar and secure with bolt and washer (pre-installed on part 39). Place the olympic collars (46) to sleeve when in use with weight plates or just for storage. | ASSEMBLY INSTRUCTIONS...
  • Page 23 Do not tighten all bolts until all installations are complete. Note: Some hardware are Pre-installed, refer to installation diagram. STEP 16 1. Attach the 2x weight stack covers (25) to the side of the Attaching the landmine post: weight stacks (R/L side) and secure using 4x bolts (78) 1.
  • Page 24 J-Hooks and Safety Bar When using a separate barbell, slot the j-hooks and Safety bar to your preferred height on the holes of the front posts. Cable Attachments Attach the carabiner clips to the cables and then attach the bar you wish to use to the clip. Ensure to fully tighten the clip when changing your bars.
  • Page 25 OPTIONAL ATTACHMENT Foams Foam Attachment Bracket Foam Rod Foam Roller Attachment Assembly 1. Attach the Foam rods onto slot for the Foam roller attachment bracket. 2. Place the foams onto each end of the Rod. 3. Slot the attachment into the holes for the rack when using for lat pull down bar. ASSEMBLY INSTRUCTIONS |...
  • Page 26 Landmine Barbell Landmine Handle Bracket Landmine Handlebar Assembly 1. Bolt the landmine barbell bracket to the landmine handles (with screws from the landmine handle). 2. When using with separate barbell. Insert barbell into the barbell bracket and tighten with the nut. | ASSEMBLY INSTRUCTIONS...
  • Page 27 Product Installation Completed Install the remaining auxiliary parts in the position shown in the diagram and check to lock all bolts and nuts. Here your product installation is complete. ASSEMBLY INSTRUCTIONS |...
  • Page 28 V. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
  • Page 29 VI. MAINTENANCE MAINTENANCE METHOD: To extend the service life of the device, the parts must be lubricated on time. The product has been initially lubricated before leaving the factory, but lubrication is required between the guide rod and the weight plate over time. NOTE: Silicon oil/spray is recommended for lubrication.
  • Page 30 VII. WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
  • Page 32 WWW.L IF ESPAN F ITNE S S . COM . A U...
