STEP 13

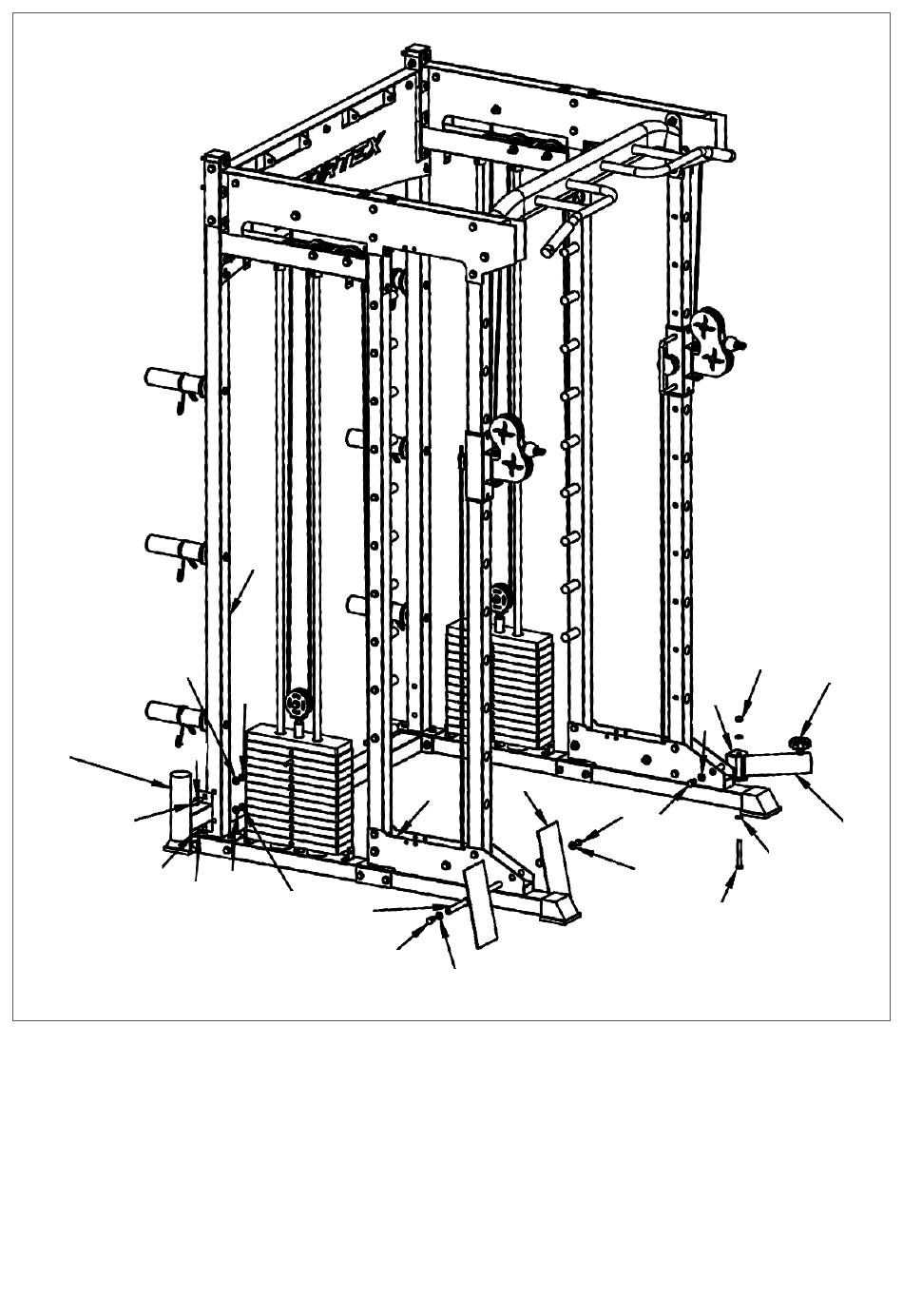

1. Place the Foot plate (18#) on both sides of (32#) according to the picture. Fit the (38#) into the foot
plate shaft and secure with (68#) spacer and (68#).
2. First place the M10 knob (54#) on the landmine post (27#). Install (27#) on the barrel shaft (45#) and
then place (45#) hole into (32#) with bolt using nut (71#), bolt (64#) and washer (74#).
3. Place the hole in the Olympic rod holder (20#) on the side of (1#) and secure with the bolt (66#),
gasket (74#) and nut (71#).
