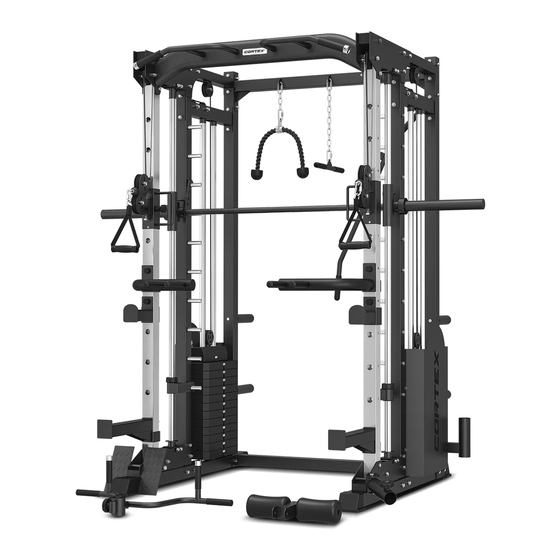

Cortex Multi Gym SM25 User Manual

Dual stack functional trainer, smith machine, half rack

Hide thumbs

Table Of Contents

Quick Links

SM25 Multi Gym

(Dual Stack Functional Trainer,

Smith Machine, Half Rack)

USER MANUAL

Product may vary slightly from the item pictured due to model upgrades.

Read all instructions carefully before using this product.

Retain this owner's manual for future reference.

NOTE:

This manual may be subject to updates or changes. Up to date manuals are available through our

website at www.lifespanfitness.com.au

Table of Contents

Need help?

Do you have a question about the Multi Gym SM25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cortex Multi Gym SM25

Page 1 SM25 Multi Gym (Dual Stack Functional Trainer, Smith Machine, Half Rack) USER MANUAL Product may vary slightly from the item pictured due to model upgrades. Read all instructions carefully before using this product. Retain this owner’s manual for future reference. NOTE: This manual may be subject to updates or changes.
Page 3: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions ....... 04 II. Care Instructions ..........05 III.
Page 4: Important Safety Instructions
I. IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all instructions before using this machine. To ensure your safety, read the following precautions before using this product 1. Please read, study and understand the instructions and all warning labels before use. (It is recommended to be familiar with the normal operation and use methods of the device before using this product.
Page 5: Care Instructions
II. CARE INSTRUCTIONS • Lubricate moving joints with silicon spray after periods of usage. • Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects. • The machine can be kept clean by wiping it down using dry cloth. •...
Page 6: Parts List
III. PARTS LIST | PARTS LIST...
Page 7 1pc M10 Knob PARTS LIST |...
Page 8: Assembly Instructions
IV. ASSEMBLY INSTRUCTIONS ATTENTION: 1. The gasket shall be placed at both ends of the bolts (against the bolt head and nuts), unless otherwise stated. 2. Preliminary assembly is hand tightening of all bolts and nuts and hand tightening with the wrench for complete assembly. 3.
Page 9 STEP 2 1. Place 4 x part 47 and 4 x part 16 into part 1 as pictured. ASSEMBLY INSTRUCTIONS |...
Page 10 M10 x 90mm 4pcs Φ 10 8pcs 4pcs STEP 3 1. Install part 7 and part 8 using: - 4x part 71 - 8x part 85 - 4x part 83 | ASSEMBLY INSTRUCTIONS...
Page 11 STEP 4 1. Insert the weight stacks part 43 into part 16 as pictured with the holes facing down. 2. Insert part 21 into the middle, through the weight stacks. 3. Lastly add the part 42 weight on top of the other weight stacks as pictured. 4.
Page 12 M10 x 70mm 4pcs Φ 10 8pcs 4pcs STEP 5 1. Attach part 3 to part 4 and 5, and secure it with: - 2x part 24 - 4x part 74 - 8x part 85 - 4x part 83 | ASSEMBLY INSTRUCTIONS...
Page 13 Φ 10 M10 x 70mm 2pcs 8pcs M10 x 15mm 4pcs 2pcs STEP 6 1. Secure 4x part 19 to parts 4 and 5, and 3. Secure part 15 onto either post part 4 or 5 using: secure with: - 2x part 74 - 4x part 79 - 1x part 22 - 4x part 85...
Page 14 Φ 10 M10 x 70mm 8pcs 16pcs M8 x 35mm 4pcs 8pcs STEP 7 1x Secure part 6 to part 4 and 7 using: - 2x part 23 - 4x part 74 - 8x part 85 - 4x part 83 2.
Page 15 M10 x 70mm 8pcs Φ 10 16pcs 8pcs STEP 8 1. Secure part 11 into part 7 using: - 1x part 22 - 2x part 74 - 4x part 85 - 2x part 83 2. Secure part 11 to part 4 using: - 1x part 22 - 2x part 74 - 4x part 85...
Page 16 M10 x 70mm 8pcs Φ 10 16pcs 8pcs STEP 9 1. Secure 2x part 18 onto part 11 using: 3. Secure 2x part 17 onto part 11 and part 1 using: - 3x part 74 - 6x part 85 - 3x part 83 - 1x part 74 - 2x part 85 - 1x part 83...
Page 17 M10 x 70mm 4pcs Φ 10 8pcs 4pcs STEP 10 1. Slide part 30 into part 9 post as pictured and 4. Secure part 17 to part 9 using: secure with part 63. - 2x part 74 - 4x part 85 2.
Page 18 Φ 10 M10 x 75mm 4pcs 12pcs M10 x 15mm 4pcs 4pcs STEP 11 1. Secure part 12 to the top of part 18 using: 2. Secure part 35 and 36 onto part 12 using: - 4x part 73 - 4x part 79 - 8x part 85 - 8x part 85 - 4x part 83...
Page 19 Φ 10 M10 x 110mm 2pcs 24pcs M10 x 15mm 20pcs 2pcs STEP 12 3. Repeat step 2 for the other side. 1. Secure part 32 onto part 7 and 8 using: 4. Secure part 31 to part 30 for using: - 20x part 79 - 2x part 80 - 20x part 85...
Page 20 STEP 13 NOTE: Be sure to install the wire rope before installing the pulley. See next page for pulley assembly instructions. 20| ASSEMBLY INSTRUCTIONS...
Page 21 M10 x 70mm 4pcs M10 x 75mm 6pcs Φ 10 36pcs 18pcs M10x45mm 8pcs STEP 13 1. Secure the part 52 on part 11 using: 5. Secure 4x part 52 into part 31 using: - 1x part 77 - 1x part 83 - 2x part 85 - 4x part 77 - 8x part 85...
Page 22 M10 x 15mm 3pcs Φ 8 16pcs M10 x 90mm Φ 10 5pcs M8x16mm 8pcs 8pcs STEP 14 1. Secure weight covers 2x part 25 using: 3. Secure landmine post part 45 to part 40 using: - 8x part 78 - 8x part 86 - 1x part 71 - 2x part 85...
Page 23 M10 x 15mm 2pcs Φ 10 2pcs STEP 15 1. Place part 26 tube into 2x part 27. 4. Place 2x part 47 onto part 90. 5. Place 2x part 28 onto part 90. 2. Place the 2x part 27 onto the 2x part 90 as pictured. 6.
Page 24 M8 x 80mm 8pcs Φ 8 16pcs 8pcs STEP 16 1. Secure the Smith bar you just assembled onto the rack part 17 and 18 using: - 8x part 81 - 16x part 86 - 8x part 84 Ensure to fully tighten all screws. | ASSEMBLY INSTRUCTIONS...
Page 25: Exercise Guide
V. EXERCISE GUIDE PLEASE NOTE: Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems. The pulse sensors are not medical devices. Various factors, including the user’s movement, may affect the accuracy of heart rate readings.
Page 26: Maintenance
VI. MAINTENANCE MAINTENANCE METHOD: To extend the service life of the device, the parts must be lubricated on time. The product has been initially lubricated before leaving the factory, but lubrication is required between the guide rod and the weight plate over time. NOTE: Silicon oil/spray is recommended for lubrication.
Page 27: Warranty
VII. WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
Page 28 WWW.L IF ESPAN F ITNE S S . COM . A U...
