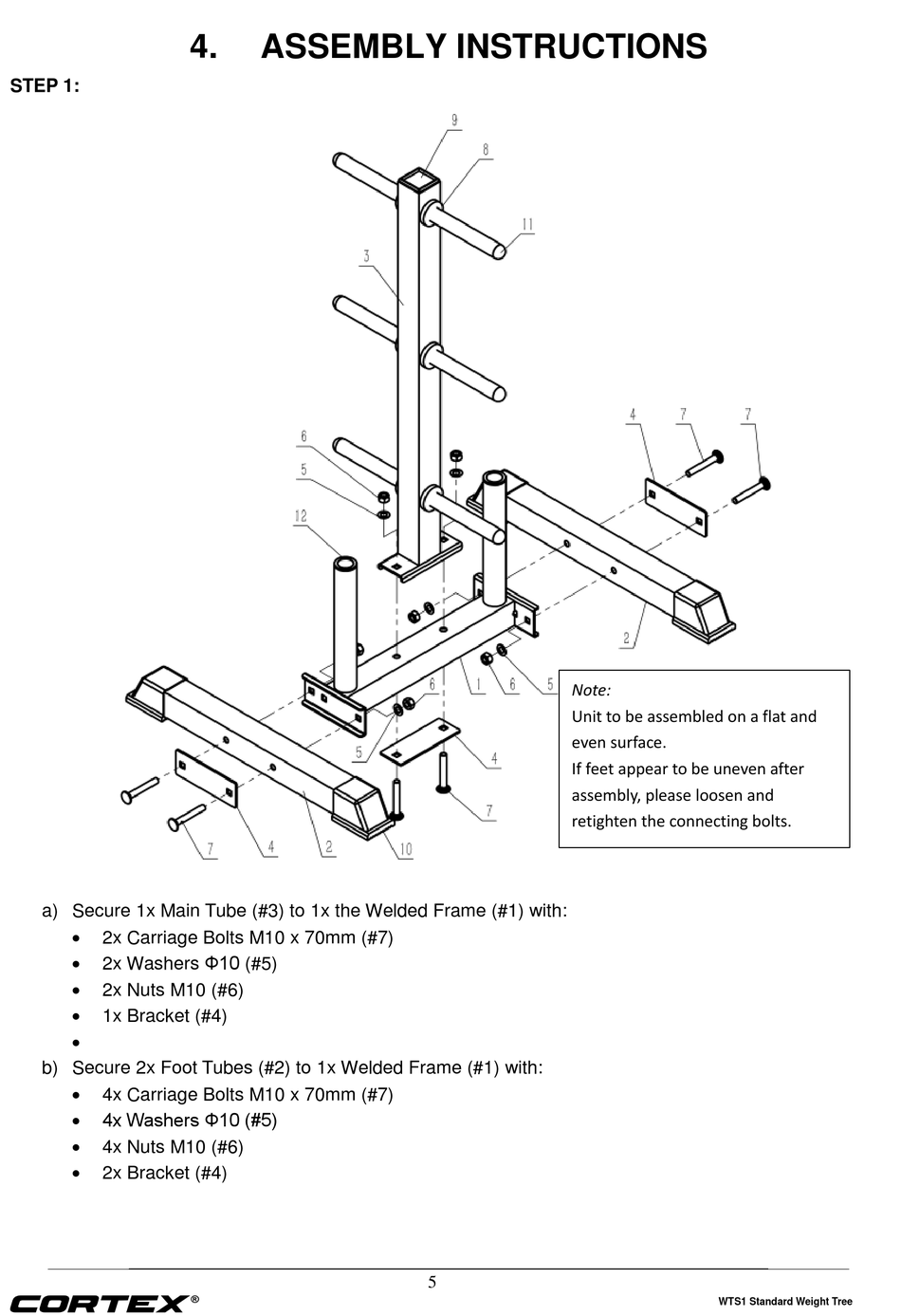

STEP 1:
a) Secure 1x Main Tube (#3) to 1x the Welded Frame (#1) with:

2x Carriage Bolts M10 x 70mm (#7)

2x Washers Φ10 (#5)

2x Nuts M10 (#6)

1x Bracket (#4)

b) Secure 2x Foot Tubes (#2) to 1x Welded Frame (#1) with:

4x Carriage Bolts M10 x 70mm (#7)

4x Washers Φ10 (#5)

4x Nuts M10 (#6)

2x Bracket (#4)
4.

ASSEMBLY INSTRUCTIONS

Note:
Unit to be assembled on a flat and
even surface.
If feet appear to be uneven after
assembly, please loosen and
retighten the connecting bolts.
5
