STEP 11

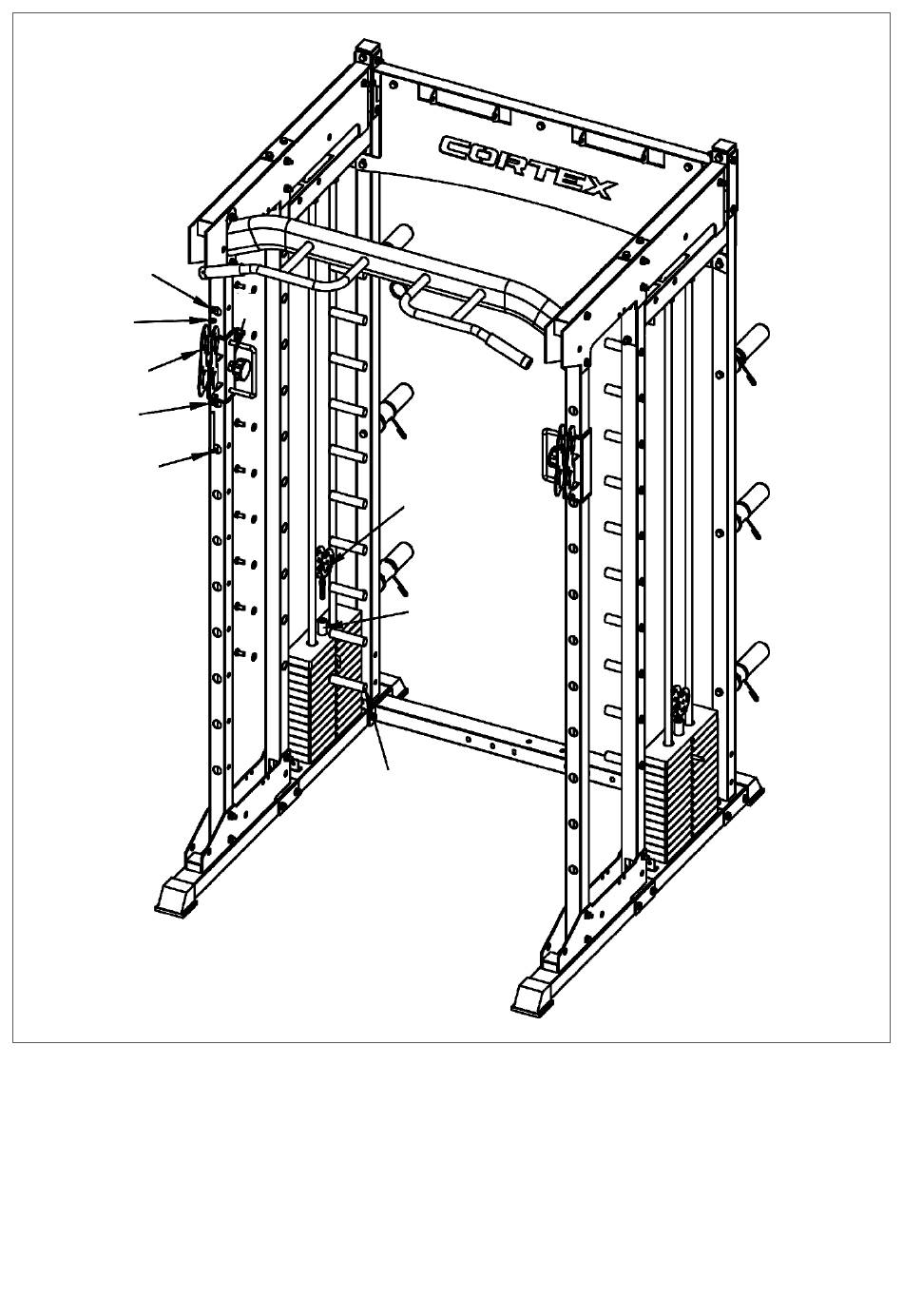

1. Twist the small pulley frame (39#) into (15#) as shown, then place the short optical shaft (44#) into
(2#) with pre-installed bolts.
2. Place the pulley bracket (26#) into the hole of (19#) and secure with bolt (62#), gasket (74#), and nut
(71#).
3. Repeat for the other side.
39
15
44
ASSEMBLY INSTRUCTIONS | 17
