Cortex PT-105 User Manual

Commercial chin up dip knee raise power tower
Hide thumbs

Advertisement

Quick Links

PT-105 Commercial Chin Up Dip
Knee Raise Power Tower
USER MANUAL

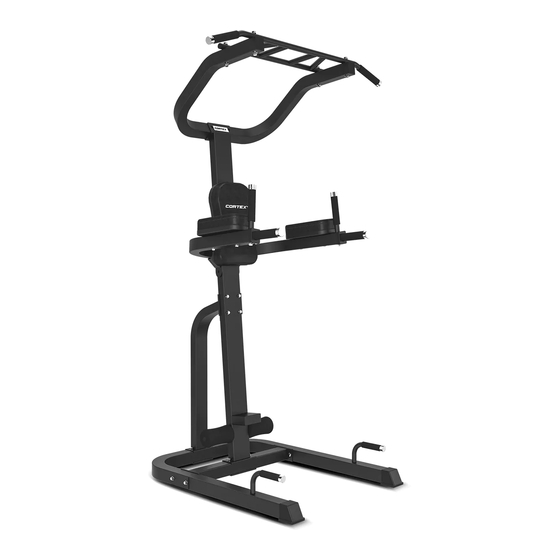

Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner's manual for future reference.
NOTE:
This manual may be subject to updates or changes. Up to date manuals are available through our
website at www.lifespanfitness.com.au
