4. ASSEMBLY INSTRUCTIONS

Unpack the carton and place all parts on the floor. Carefully remove all packing material and check each
part with the manual first.
Remember, some parts are pre-fitted to larger components.
IMPORTANT: Assemble with all nuts and bolts loose at first, only tighten after completing all assembly
steps.
STEP 1

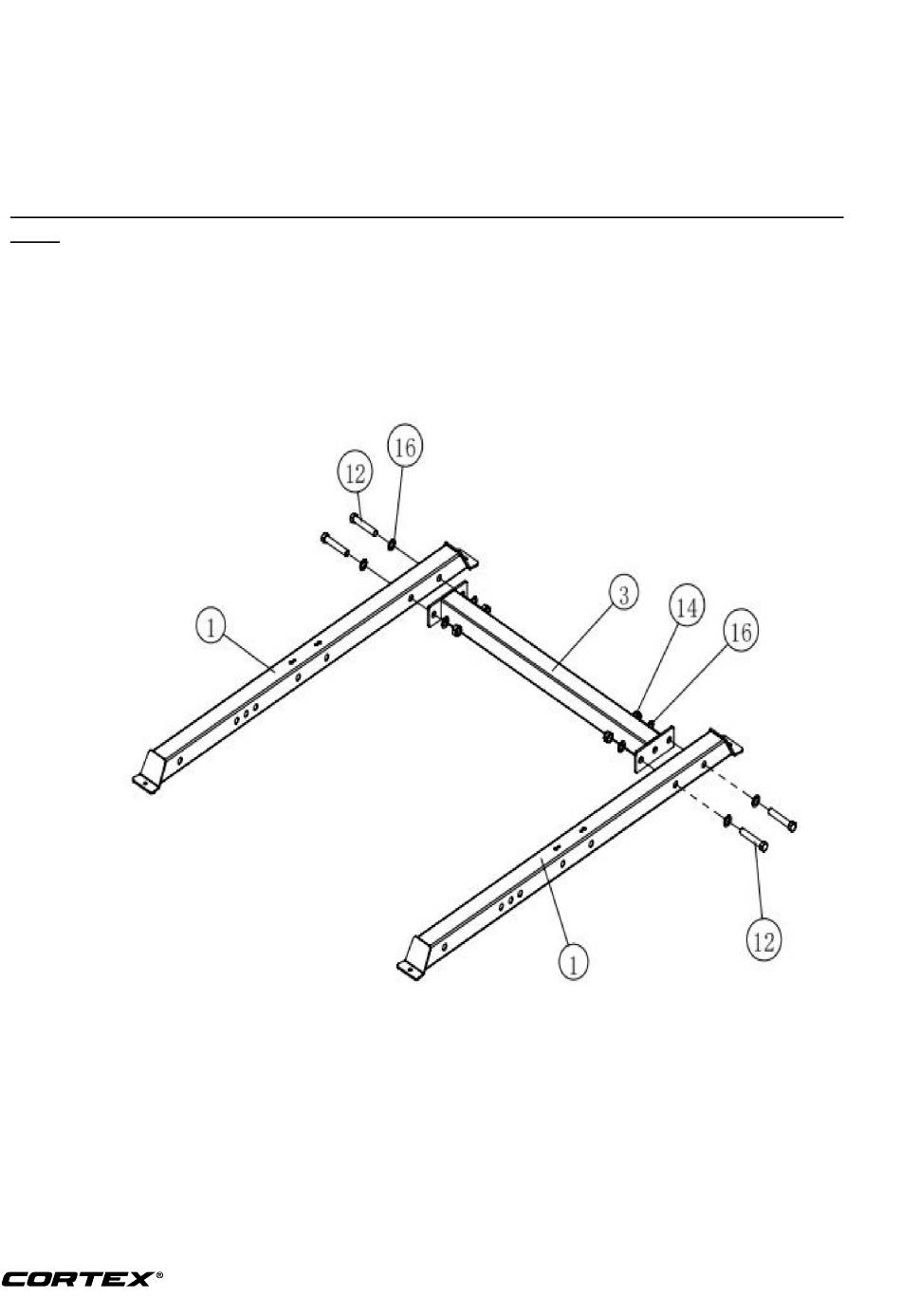

1. Attach Bottom framework (1) to Lower connection frame (3) using Screw M20X110(12), Flat
washer Ф20 (16) and Lock nut M20 (14).
