V. ASSEMBLY INSTRUCTIONS
IMPORTANT NOTE: Washers are to go on both ends.
37 M10*120 x 6
39 M10*75 x 4
40 M10*70 x 12
43 M10*20 x 2
46 M10 x 22
Ø10 x 46
49

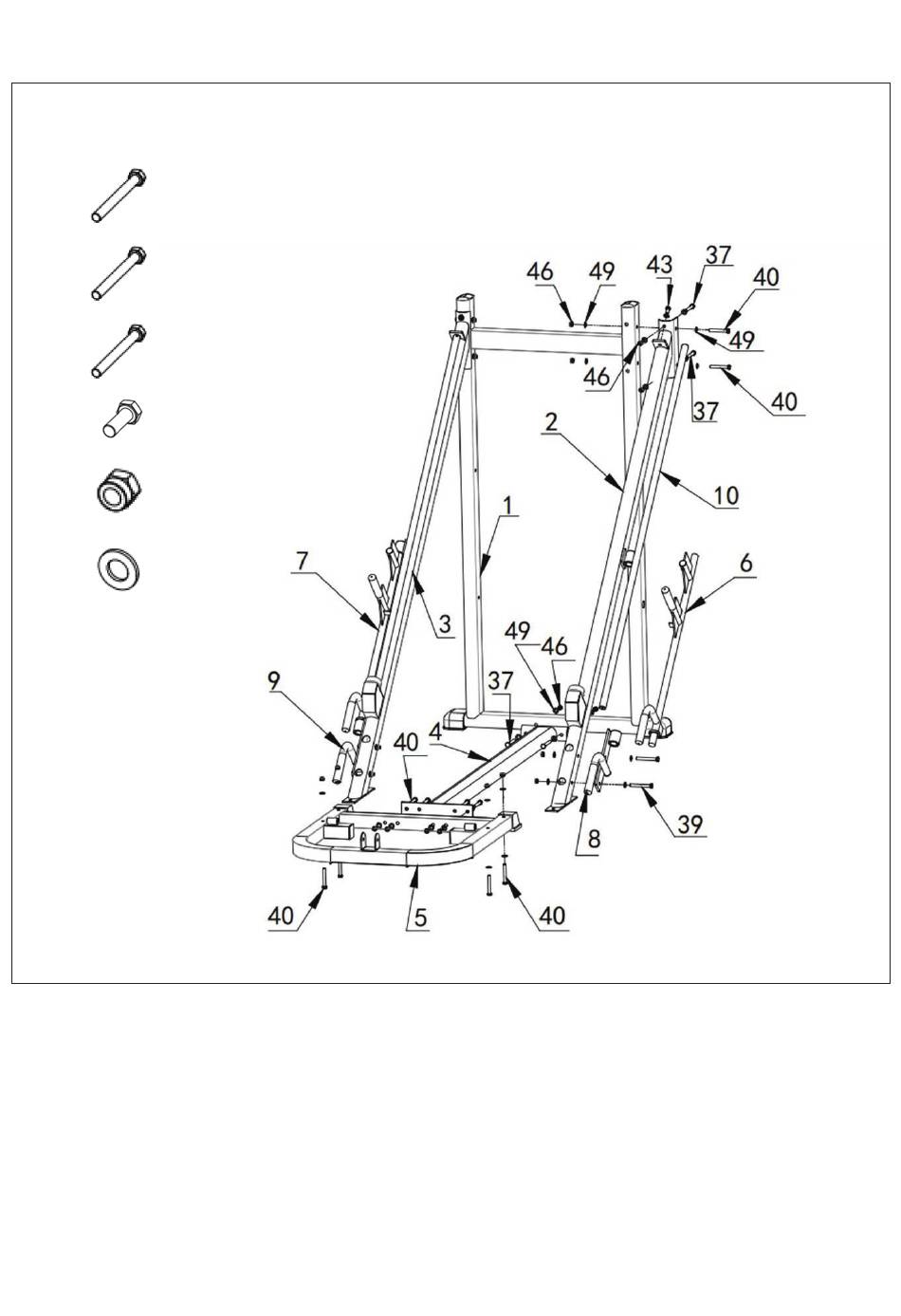

STEP 1
1. Install part #1 Main frame to #3 Track support right with:
- #40 M10x70 Screws
- #49 Ø10 Washers
Repeat for the other side for #2 Track support.
8

| ASSEMBLY INSTRUCTIONS

- #37 M10x120 Screws
- #46 M6 Nuts
